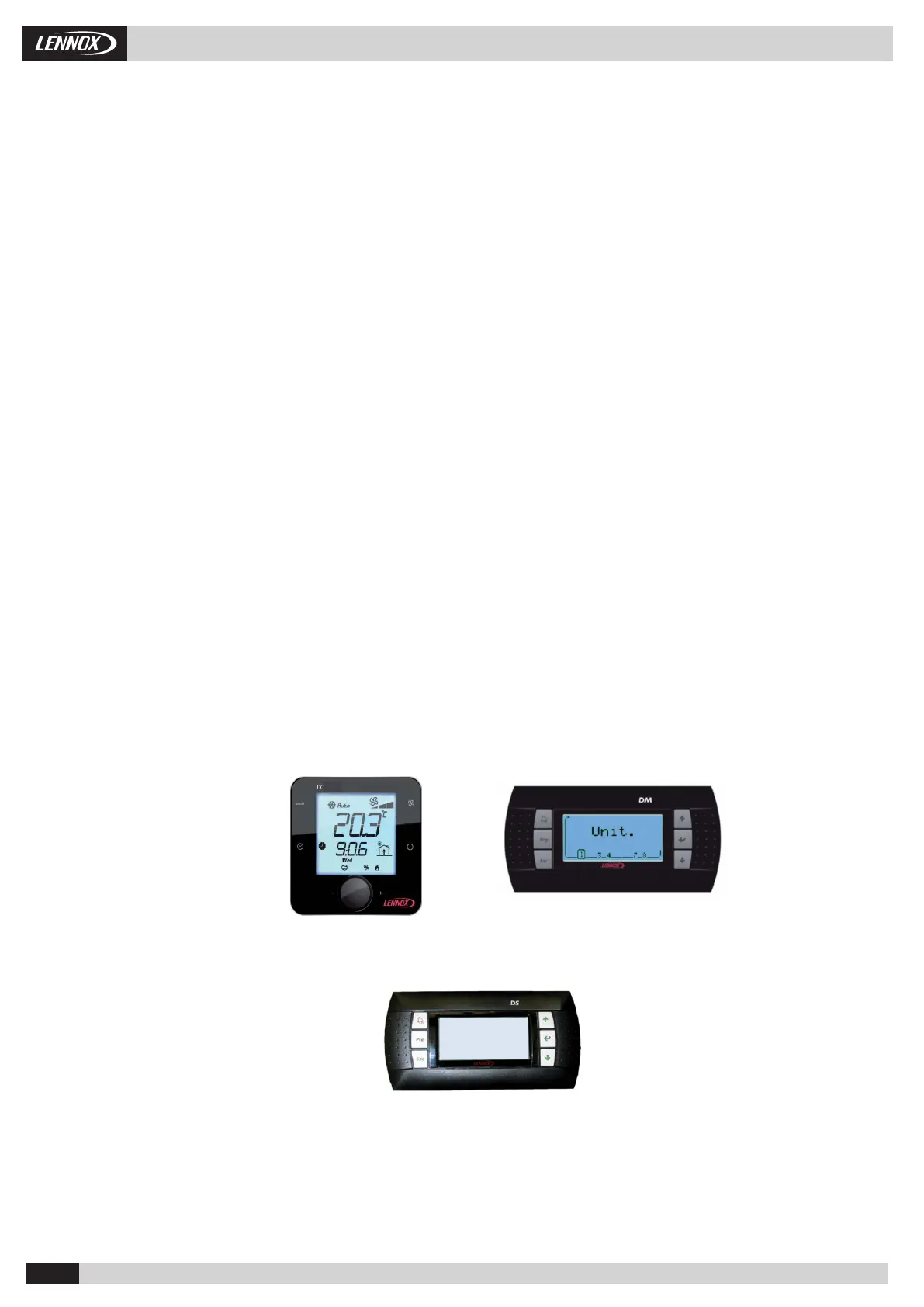

DC
DM
Service
Display
DS
Service
Display
Installation Manual • FLATAIR ADV2 IOM-MIL161E-0920-09/2020
Fresh air:
- Kit Freecooling 1 damper
Filtration:
- High e󰀩ciency lter: M5+F7
Auxiliary Heat :
- Electrical resistance mounted inside the standard,
medium or high capacity unit
Air Conguration :
- Return airow - Air treatment unit (D1)
- Supply airow - Air treatment unit (C1)
- Air inlet - Condensing unit (B1)
- Air outlet - Condensing unit (A1)
Security and electricity :
- Air quality sensor (CO
2
)
- Smoke detector
- Analog dirty lter sensor
- Three phases relay for unit electrical protection
Coils treatment:
- Anticorrosion protection condensor & evaporator
coils.
1. GENERAL CHARACTERISTICS
1.2. GENERAL DESCRIPTION
OPTIONS
Control and comunication:
- Remote display DC for user.
- Service display DS.
- Multi Unit Display DM.
- Remote probe in environment.
- Modbus RS485 comunication interface.
- LonWorks FTT10 comunication interface.
- BACnet MSTP comunication interface.
- Modbus/BACnet/Ethernet TCP/IP comunication in-
terface.
- Remote control board.
Others:
- A1 Insulation air treatment unit.
- Low noise: compressor acoustic insulation.
- Fan with metal blades, for outdoor and indoor units
size 020.
