Lennox ALLEGRA II Maintenance Manual

• 5 •
INSTALLATION, USE, MAINTENANCE MANUAL

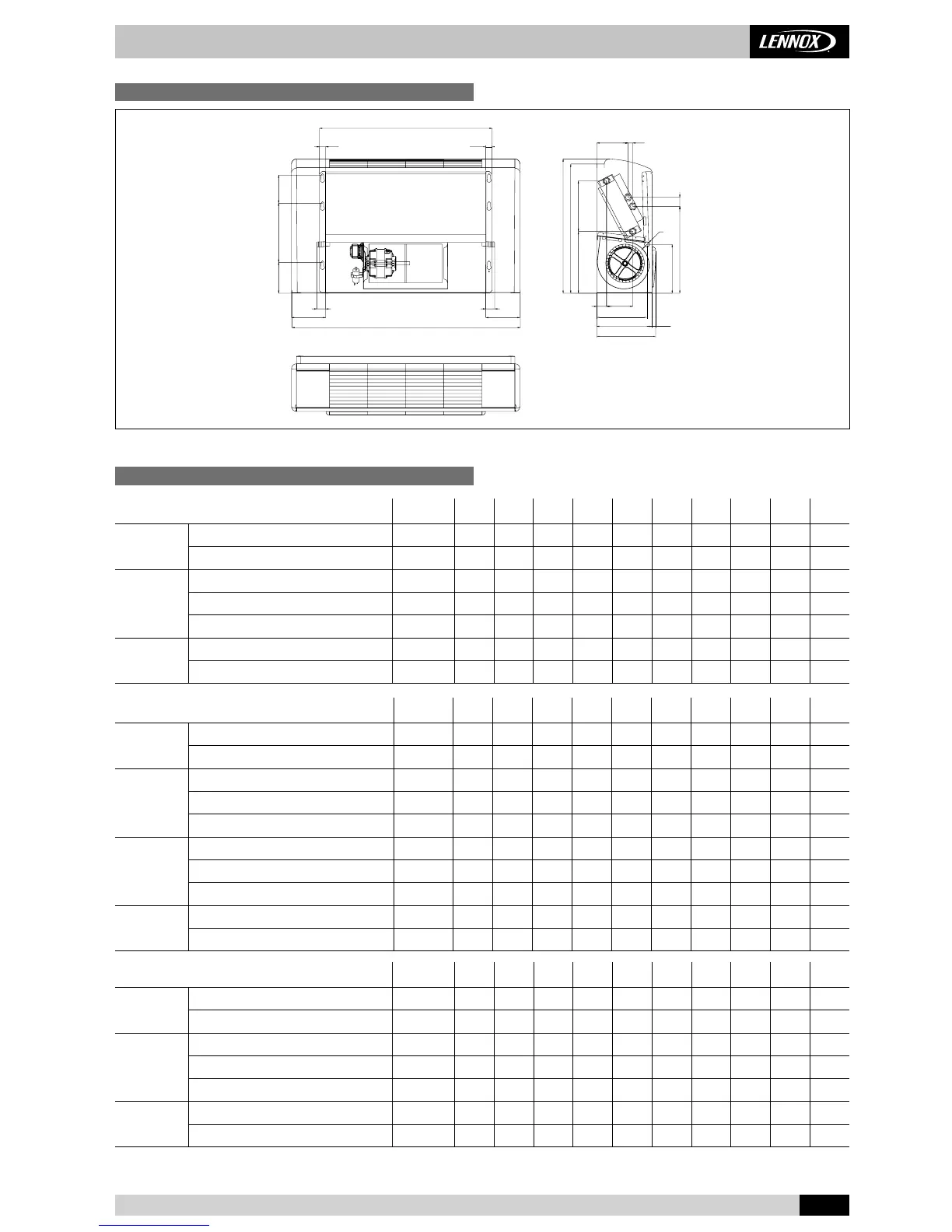

GENERAL DIMENSIONS
DIMENSIONAL CHARACTERISTICS
Pic. 02
* NOTE: the dimensions shown are referred at system with left hydraulic connections
Power supply: 230V / 1ph / 50Hz ± 10%
110
233
122
135 135
A
L
25
3535
509
192
218
529
243
200
36342
10438
123 18
20
25
232
14
190
2 PIPE SYSTEM MOD. 10 20 30 40 50 60 70 80 90 100
Fans number n° 1 1 1 2 2 2 2 3 4 4
Coils numbers n° 1 1 1 1 1 1 1 1 1 1
Coil used for
cooling and
heating
Rows number n° 3 3 3 3 3 3 3 3 3 3
Water content litri 0,5 0,8 1,2 1,5 1,8 2,1 2,4 2,4 2,7 3,1
Hydraulic connection (Ø Gas female) Ø 1/2” 1/2” 1/2” 1/2” 1/2” 3/4” 3/4” 3/4” 3/4” 3/4”
General
features
Unit lenght with cabinet L (mm) 600 750 900 1050 1200 1350 1500 1500 1650 1800
Unit lenght without cabinet M (mm) 380 530 680 830 980 1130 1280 1280 1430 1580
2 PIPE SYSTEM MOD. 10 20 30 40 50 60 70 80 90 100
Fans number n° 1 1 1 2 2 2 2 3 4 4
Coils numbers n° 1 1 1 1 1 1 1 1 1 1
Coil used for
cooling and
heating
Rows number n° 4 4 4 4 4 4 4 4 4 4
Water content litri 0,7 1,1 1,6 2,0 2,4 2,8 3,2 3,2 3,7 4,1
Hydraulic connection (Ø Gas female) Ø 1/2" 1/2" 1/2" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4"
General
features
Unit lenght with cabinet L (mm) 600 750 900 1050 1200 1350 1500 1500 1650 1800
Unit lenght without cabinet M (mm) 380 530 680 830 980 1130 1280 1280 1430 1580
4 PIPE SYSTEM MOD. 10 20 30 40 50 60 70 80 90 100
Fans number n° 1 1 1 2 2 2 2 3 4 4
Coils numbers n° 2 2 2 2 2 2 2 2 2 2
Coil used for
cooling
Rows number n° 3 3 3 3 3 3 3 3 3 3
Water content litri 0,5 0,8 1,2 1,5 1,8 2,1 2,4 2,4 2,7 3,1
Hydraulic connection (Ø Gas female) Ø 1/2” 1/2” 1/2” 1/2” 1/2” 3/4” 3/4” 3/4” 3/4” 3/4”
Coil used for
heating
N. rows n° 1 1 1 1 1 1 1 1 1 1
Water content litri 0,1 0,2 0,3 0,4 0,5 0,6 0,6 0,6 0,7 0,8
Hydraulic connection (Ø Gas female) Ø 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” 1/2” 1/2”
General
features
Unit lenght with cabinet L (mm) 600 750 900 1050 1200 1350 1500 1500 1650 1800
Unit lenght without cabinet M (mm) 380 530 680 830 980 1130 1280 1280 1430 1580
