Lennox Allied Air A96UHMV User Manual

506550-01 Page 7 of 66Issue 1230
SETTING EQUIPMENT

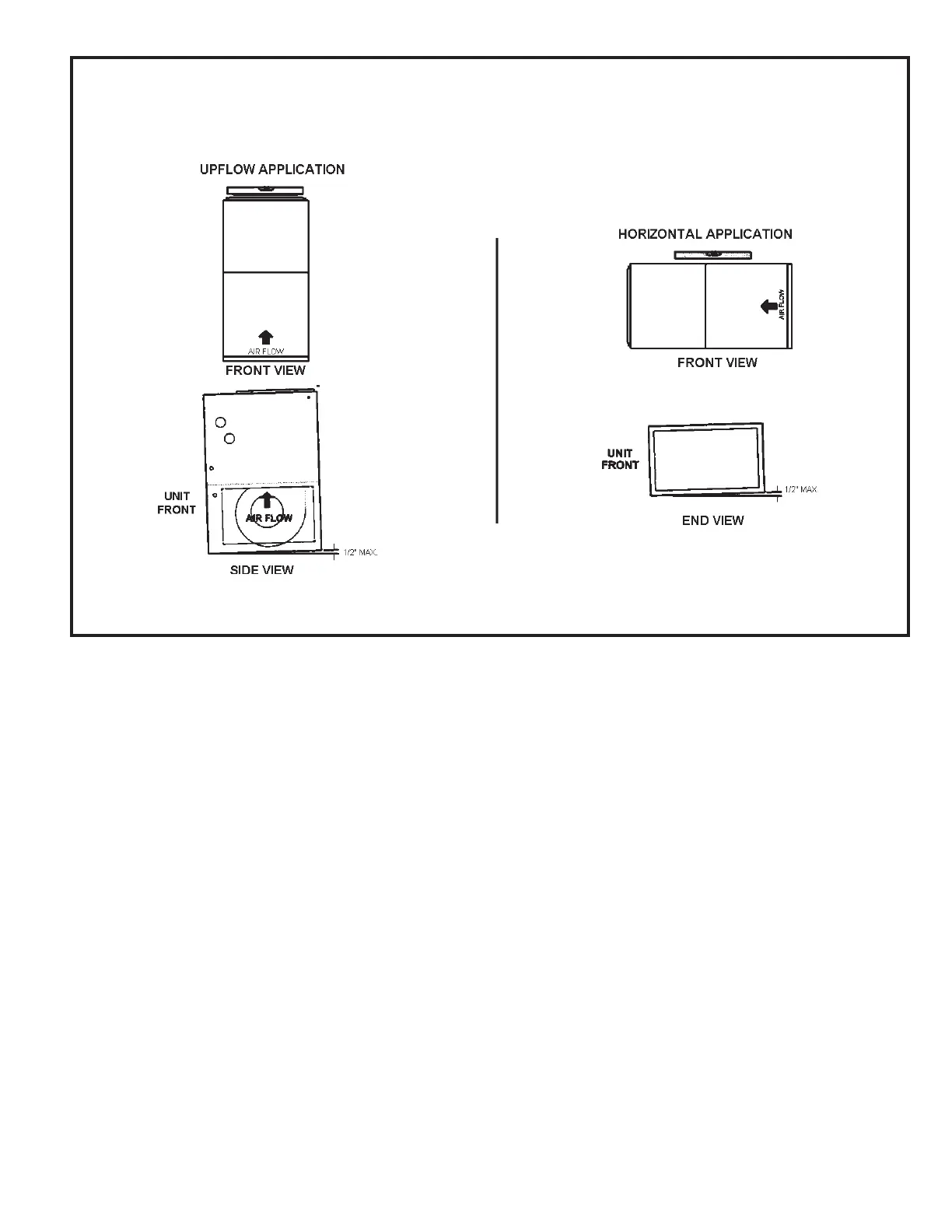

Figure 5
UNIT MUST BE LEVEL SIDE TO SIDE IN ALL APPLICATIONS FOR PROPER OPERATION.
A SLIGHT TILT TOWARD THE DRAIN IS RECOMMENDED FOR PROPER DRAINAGE.
TILT THE UNIT SLIGHTLY (MAX. 1/2”) FROM BACK TO FRONT TO AID IN THE DRAINING OF THE HEAT EXCHANGER.

Lennox Allied Air A96UHMV Specifications

General

Brand	Lennox
Model	Allied Air A96UHMV
Category	Furnace
Language	English
