IOM / ROOFTOP BALTIC Series - 0704-E Page 119
control interface CLIMALINK / CLIMALOOK

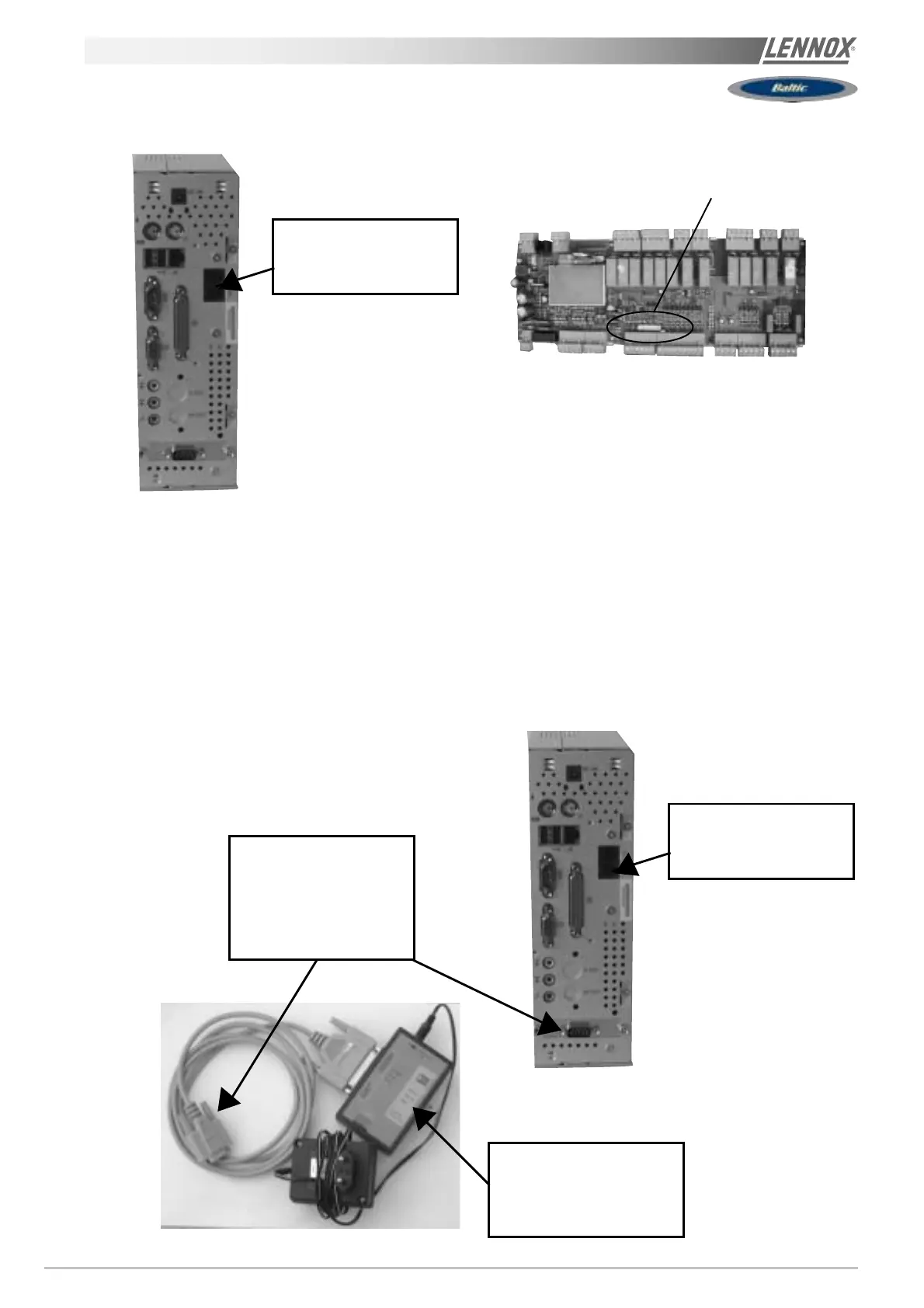

After the starting procedure of the Climalook 3 central unit,
the LED next to the B PORT on the CLIMATIC KP01 board
will start to flash. The CPU connects to the boards one
after the other , and so it is normal for the LED to stop
flashing occasionally.
When all the connections are established, press the on/off
button. The programs are launched automatically, and the
LED located to the right of the Com B on the CLIMATIC
KP01 board should flash.
Note the site telephone number in order to make the
remote query.
Plug for telephone link
RJ11. Cable supplied with
the unit.
CONNECTION TO CLIMATICTM 50 USING INTERFACE 435/
232
It is possible to connect up to 12 rooftops fitted with
CLIMATIC 50 when using a Climalook 3.
The connections between the units and the Climalink/
Climalook must be done using a double shielded pair of
wire (not supplied by Lennox) This cable must have
external metal braiding, and its cross-section must be at
least 0.5mm2 with a maximum of 1mm2
The wires will be connected to each CLIMATIC50 485
ports You must ensure the connection order is correct:
+ on +,
- on -
and gnd on gnd.
Note the site telephone number in order to make the
remote query
Plug for telephone link
RJ11. Cable supplied with
the unit.
The cable terminated by a
DB9 plug, coming out of
the 485/232 interface will
be connected to the
SERIAL port on the
Climalook central unit
After the starting up
procedure is completed
the LED on the INTER-
FACE will start flashing.
RS 485 daughter-board
