Page 28 - IOM / ROOFTOP BALTIC Series - 0704 - E
INSTALLATION ON A ROOF MOUNTING FRAME
NON ADJUSTABLE NON ASSEMBLIED ROOFCURB INSTALLATION
FRAME PARTS IDENTIFICATION

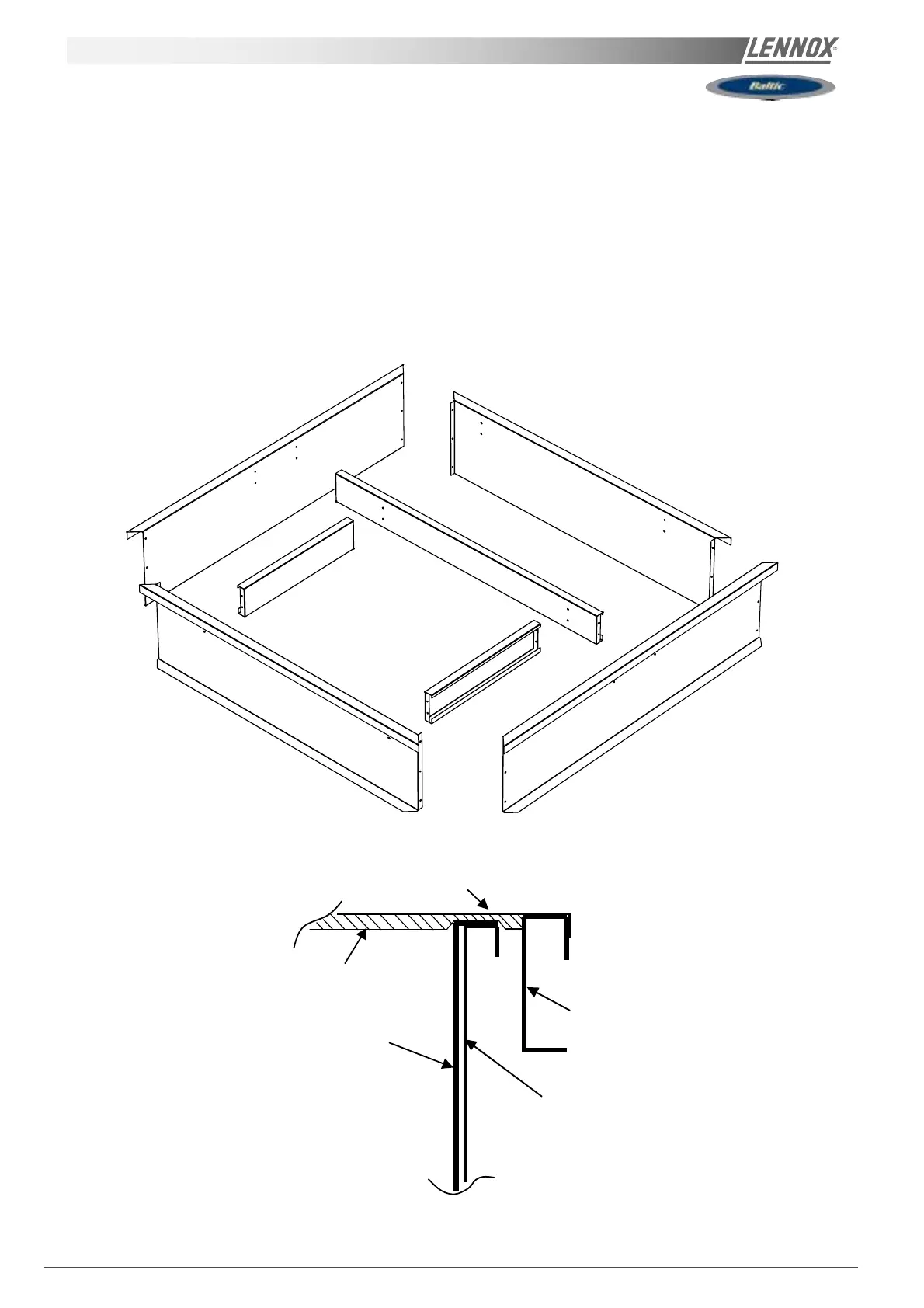

Figure 6 shows the different parts for identification
INSTALLATION
The roof mounting frame provides support when the units are installed in down-flow configurations.
The non adjustable, non assembled roof mounting frame can be installed directly on decks having adequate structural
strength or on roof supports under deck. See page 29 for frame dimensions, location of supply and return air opening
NOTE: frame assembly must be installed flat, levelled within 5mm per linear meter in any direction.
UNIT FLOOR
UNIT FLOOR
INSULATION
UNIT SUPPORT RAIL
ROOFCURB
AIR DUCT
Fig. 6
