Lennox BMAC-12C - Locating the Air Cleaner; Special Installation Notes; Box Media Air Filter Location; Dimension;Specifications

3
Model No.Model No.
Model No.Model No.
Model No.
Filter SizeFilter Size
Filter SizeFilter Size
Filter Size
Catalog No.Catalog No.
Catalog No.Catalog No.
Catalog No.
BMAC-12C 16 x 25 x 3 X0581
(406.4 x 635 x 76.2)
BMAC-14CE 16 x 26 x 5 X0584
(406.4 x 660.4 x 127)
BMAC-20C 20 x 25 x 5 X0586
(508 x 635 x 127) X1152
BMAC-20CE 20 x 26 x 5 X0587
(508 x 660.4 x 127)
Model No.Model No.
Model No.Model No.
Model No.
AA
AA
A
BB
BB
B
CC
CC
C
DD
DD
D
EE
EE
E
FF
FF
F
BMAC-12C 24-5/8 21-29/32 13-1/2 16-15/32 17-13/32 4-15/16
(625.5) (556.4) (342.9) (418.3) (442.1) (125.4)
BMAC-14CE 26-3/8 23-5/8 13-9/16 16-15/32 19-15/32 6-15/16
(669.9) (600.1) (344.5) (418.3) (494.5) (176.2)
BMAC-20C 24-5/16 22-5/16 17-3/16 20-3/16 21-5/32 6-15/16
(617.5) (566.7) (436.6) (512.8) (537.4) (176.2)
BMAC-20CE 26-11/32 23-5/8 17-3/4 20-21/32 23-21/32 6-15/16
(669.1) (600.1) (450.9) (524.7) (600.9) (176.2)
D
C
B
E
A
F
AIR FLOW
NOT TO EXCEED 20
AIR HANDLER
RETURN AIR/
ENTERING AIR
OPENING
AIR HANDLER
AIR CLEANER
DUCT
AIR FLOW
AIR CLEANER
OPENING
TRANSITION SECTION
(
IF NEEDED
)
Figure 4
Box media air filter locationBox media air filter location
Box media air filter locationBox media air filter location
Box media air filter location

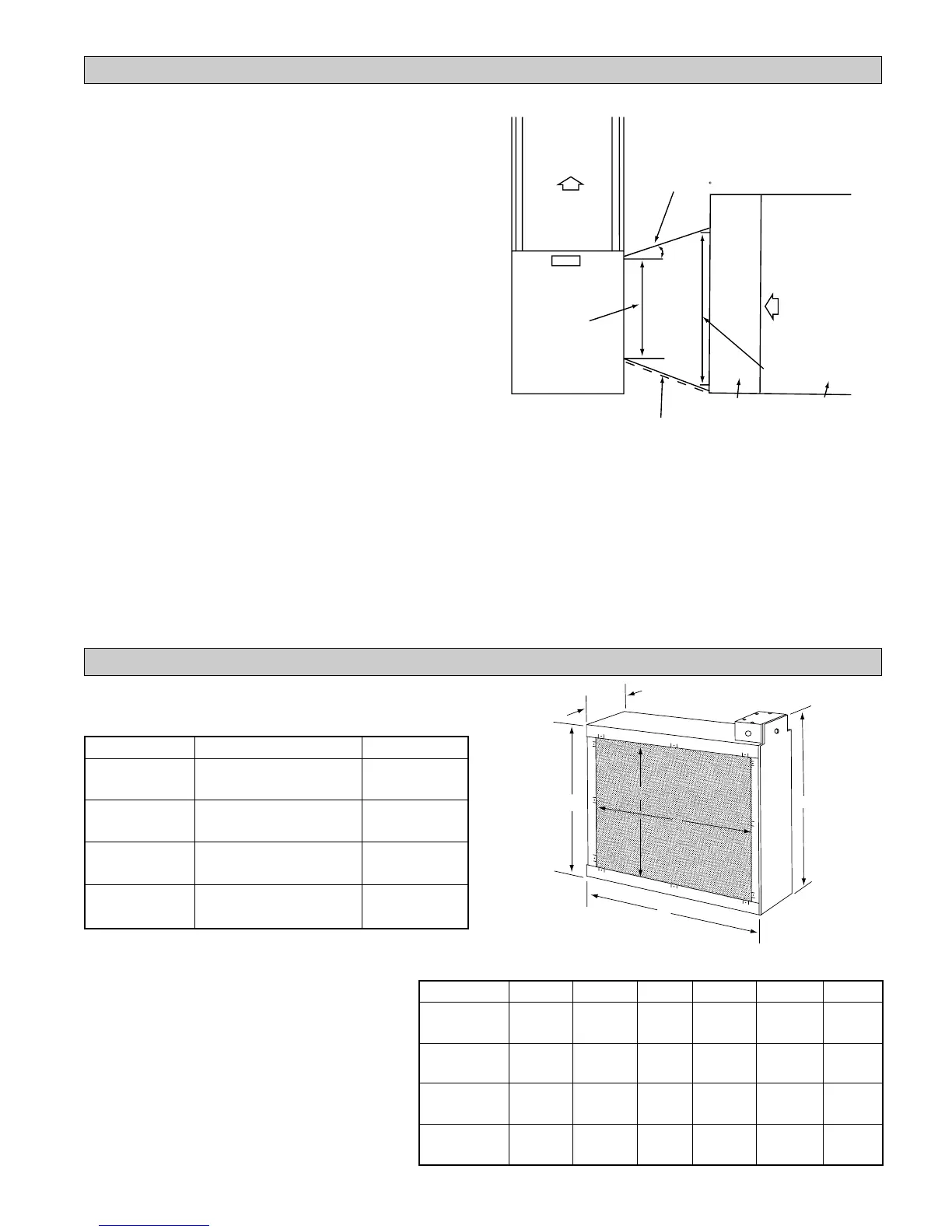

LOCATING THE AIR CLEANERLOCATING THE AIR CLEANER
LOCATING THE AIR CLEANERLOCATING THE AIR CLEANER
LOCATING THE AIR CLEANER
Install the air cleaner in the return air duct (air entering
side) of the furnace or air handler as shown in figure 3.
Install the air cleaner in such a way that the face of the filter
is at a right angle to the air stream. Do not install the air
cleaner in the discharge or supply air duct system.
Allow 25” clearance in front of the air cleaner to accom-
modate removal of media filters or air cleaner cells. Refer
to figure 4 for dimensions.
If air handler return air, or air entering, opening is not large
enough to accommodate air filter, install a field fabricated
sheet metal transition. Transition reduction should be no
more than 4 inches per linear foot, creating an angle of
approximately 20 degrees. Refer to figure 4.
SPECIAL INSTALLATION NOTES:SPECIAL INSTALLATION NOTES:
SPECIAL INSTALLATION NOTES:SPECIAL INSTALLATION NOTES:
SPECIAL INSTALLATION NOTES:
Atomizing spray-type humidifier (if used) must be installed
downstream of the air cleaner.
UV germicidal light (if used) must be installed a minimum
of 6 ft. from the air cleaner when the two are installed in
direct line of sight to one another. If there is a 90 degree
bend or turn in the air duct between the air cleaner and UV
light, a 3 ft. installation clearance is required between the
two.
Dimension/SpecificationsDimension/Specifications
Dimension/SpecificationsDimension/Specifications
Dimension/Specifications
Filter Media Dimensions NominalFilter Media Dimensions Nominal
Filter Media Dimensions NominalFilter Media Dimensions Nominal
Filter Media Dimensions Nominal
in Inches (Millimeters)in Inches (Millimeters)
in Inches (Millimeters)in Inches (Millimeters)
in Inches (Millimeters)
Specifications subject toSpecifications subject to
Specifications subject toSpecifications subject to
Specifications subject to
change without notice.change without notice.
change without notice.change without notice.
change without notice.
Dimensions in Inches (Millimeters)Dimensions in Inches (Millimeters)
Dimensions in Inches (Millimeters)Dimensions in Inches (Millimeters)
Dimensions in Inches (Millimeters)
Figure 3
