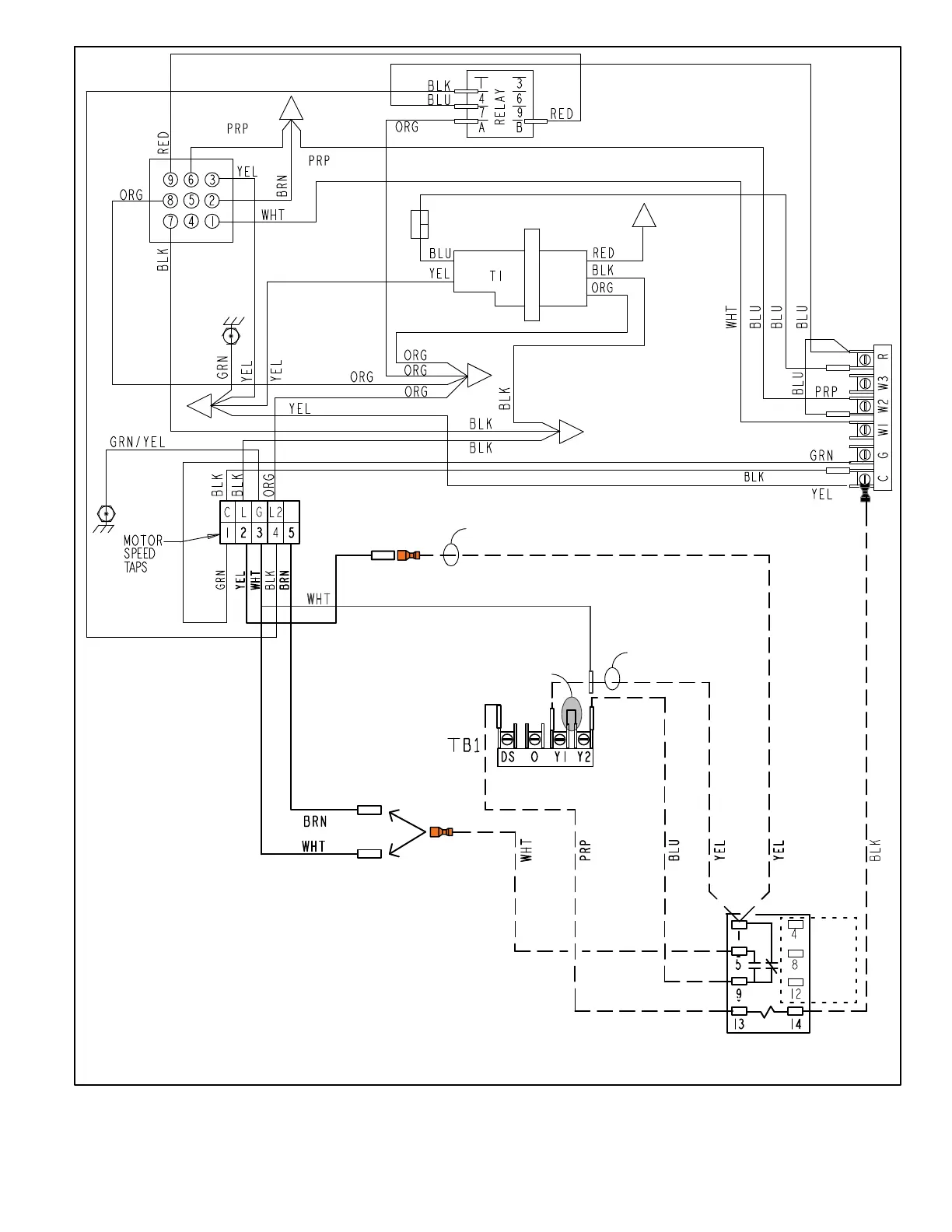

Page 45

CONNECT FOR 0.50 - 0.80

IN.W.G., TWO-STAGE ONLY;

OTHERWISE, NOT USED

(PINS

4,8,12

NOT

USED)

CONNECT FOR 0.50 - 0.80 IN.W.G.

ONLY; OTHERWISE, NOT USED

Y1-Y2 JUMPER IN FOR

SINGLE-STAGE;

REMOVED FOR

TWO-STAGE

K183 DEHUMIDIFICATION RELAY

AND WIRING HARNESS

0.10 - 0.49 IN.W.G.

WHT - WHT

0.50 - 0.80 IN.W.G.

WHT - BRN

DISCONNECT FROM Y2
