COOLING COMPONENTS

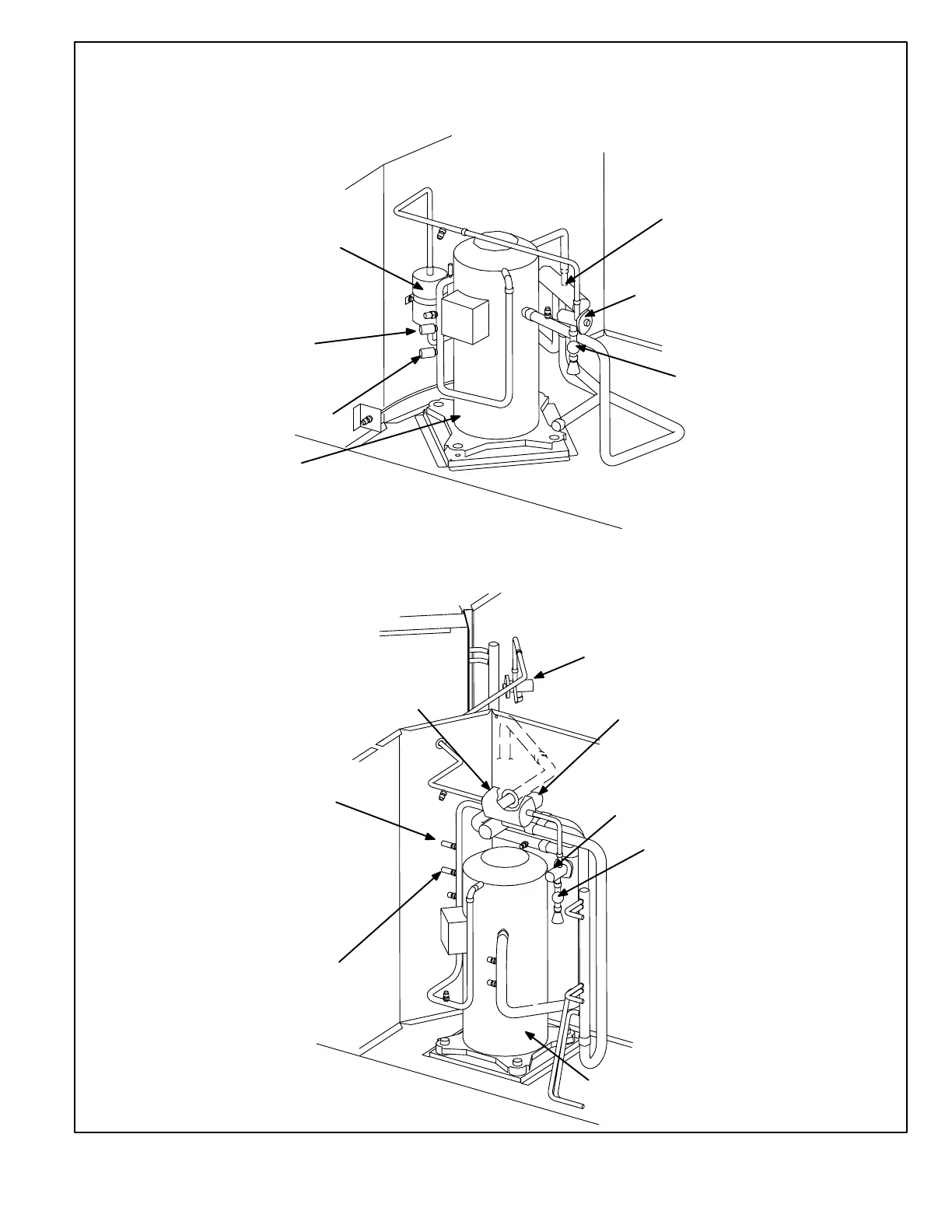

FIGURE 10
CHP20-030, CHA/CHP16/20-036
CHA/CHP16-048/060, CHP20-042/048/060
REVERSING VALVE
L1
DRIER
OUTDOOR
TXV VALVE
DEFROST THERMOSTAT SWITCH
S6
SCROLL COMPRESSOR
B1
HIGH PRESSURE SWITCH
S4
DEFROST PRESSURE SWITCH
S46
OUTDOOR
TXV VALVE
REVERSING VALVE
L1
DEFROST THERMOSTAT SWITCH
S6
DRIER
HIGH PRESSURE SWITCH
S4
DEFROST PRESSURE SWITCH
S46
SCROLL COMPRESSOR
B1
INDOOR
TXV VALVE
