Lennox CLIMATIC 200 Installation Operating & Maintenance Manual

8

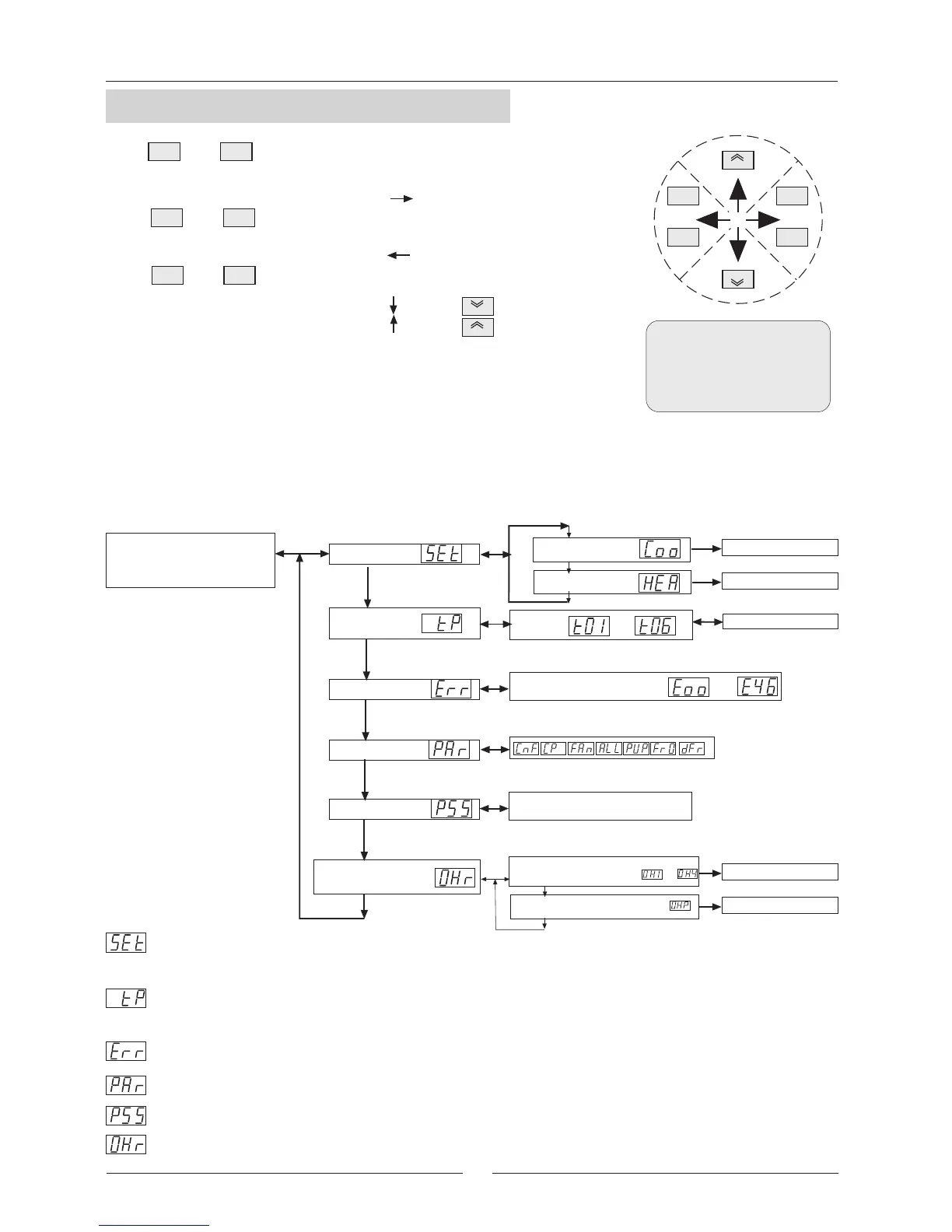

MENU MODE
To move through the menu on this way :
Press and buttons simultaneously and release within 2 seconds.
To move through the menu on this way :
Press and buttons simultaneously during more than 2 seconds.
To move through the menu on this way , press:
To move through the menu on this way , press:
mode
on off
mode
on off
NOTE: When the leds on the
display lit alternatively from
one to the other, you are on
menu mode.
Water temperature adjustment menu.
Status temperature probes menu:
St1: Inlet water temperature.
St2: Outlet water temperature.
St3 and St6: Piping temperature.
St4: Outdoor temperature (with option Dynamic set point).
Active alarms Menu.
Configuration parameters menu.
Password to access to parameters configuration (number); the password is 38.
Operating hours resources management (compressor, water pump).
Press and buttons and release within 2 seconds, to enable the user
to get to the menu mode
MAIN DISPLAY
Visualizes:
Inlet water temperature
Active alarms
LEVEL 1
Cooling set point
Probe status
ALARMS
PARAMETERS
PASSWORD
OPERATING HOURS
Set point value cool
Heating set point
SET POINT
Probe value
Active alarms Codes
Codes
Password value (number 38)
Compressor operating
hours
Amount of hours
LEVEL 2 LEVEL 3
MENU STRUCTURE
-----
-----
---
Water pump operating hours
Set point value heat
Amount of hours
mode
on off
mode
on off
+
mode
on off
+
>2" <2"
