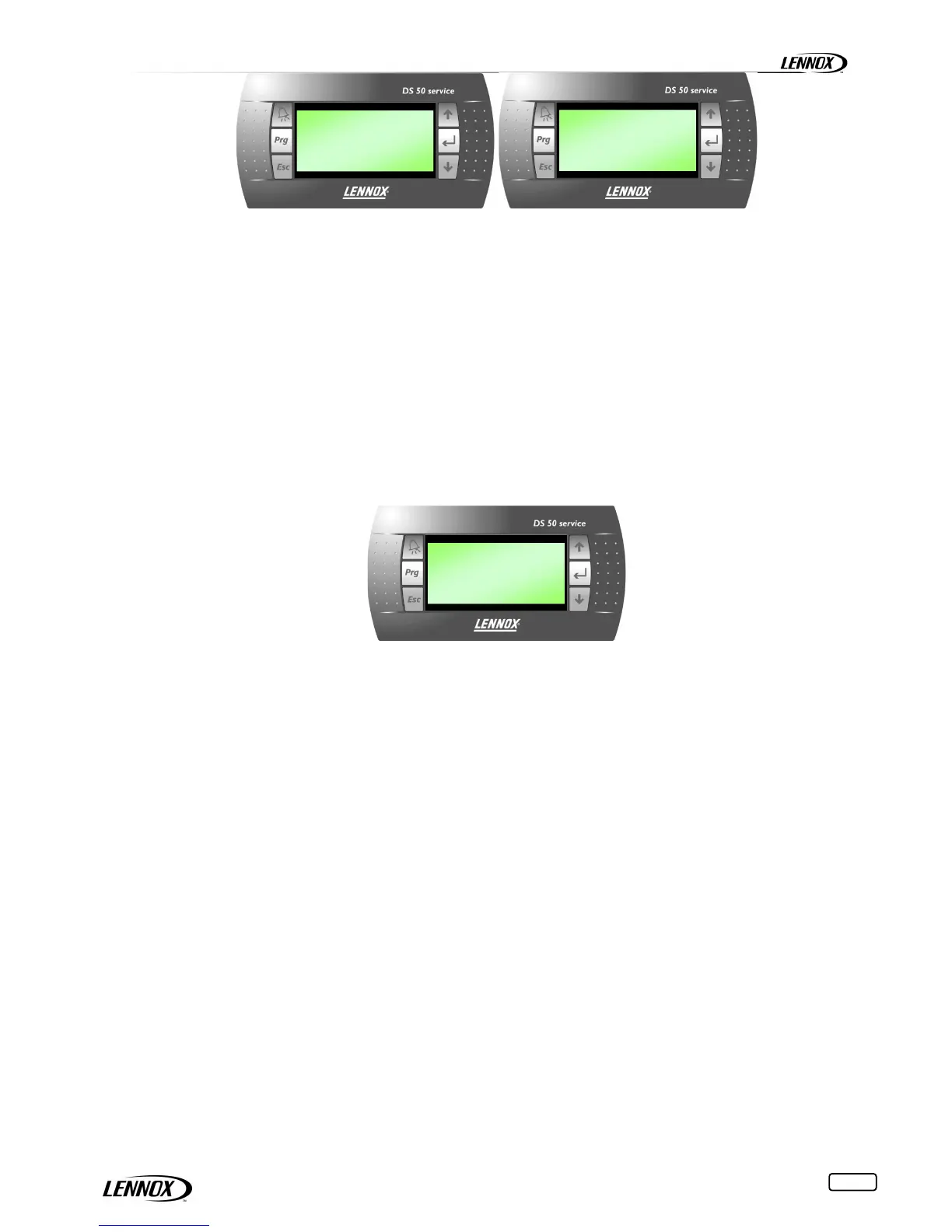

The number in the upper right shows the unit affected by this setting. (Unit connected by the DS50)
The number of the second line indicates the number of different cards that could be connected to the bus Master/Slave.
(Note: Even if the unit is not connected to the bus that screen will be displayed)
The first column represents the symbol DCw may be connected to this unit slave.
The following six columns represent the symbol SCw may be connected to this unit slave.
A symbol '' indicates that a probe is present and connected to the slave
A Symbol '' indicates that the values of this probe will not be used for the unit concerned.
A Symbol '' indicates that the values of this probe will be used for this unit.
To change the choice of assignments (a make on 12 pages):
The cursor blinks at the top left of the screen. Press the button ' ' to move the cursor to the square of DCw.
Press the buttons ‘↓ or ↑ to change status.
Then press, again, the button ' ' to validate the new value and position the cursor on the following square corresponding
to the first probe SCw.
Then press, as many times as necessary, button ' ' to reposition the cursor on the other probes then at the top right
corner
The last special screen shows the result of averaging probes selected for this unit.









