 Secure data transmission.
The advantages of working at 2.4 GHz
The band centred around 2.45 GHz (used in the Wireless system) is the only one that can be used all over the world,
without needing to apply for special licenses. In addition, the ISM band (Industrial, Scientific and Medical) exploits the full
potential of the standard, that is, can use 16 transmission channels with a bit rate of 250 Kbit/s.
LENNOX© CONCEPTION
50m
Display
DCw
6 Sensors (T° only)
SCw
Access Point
APw
Cable length up to 100m:
LiYCY
-
P (0.34 mm ²), 2 pairs with general shield

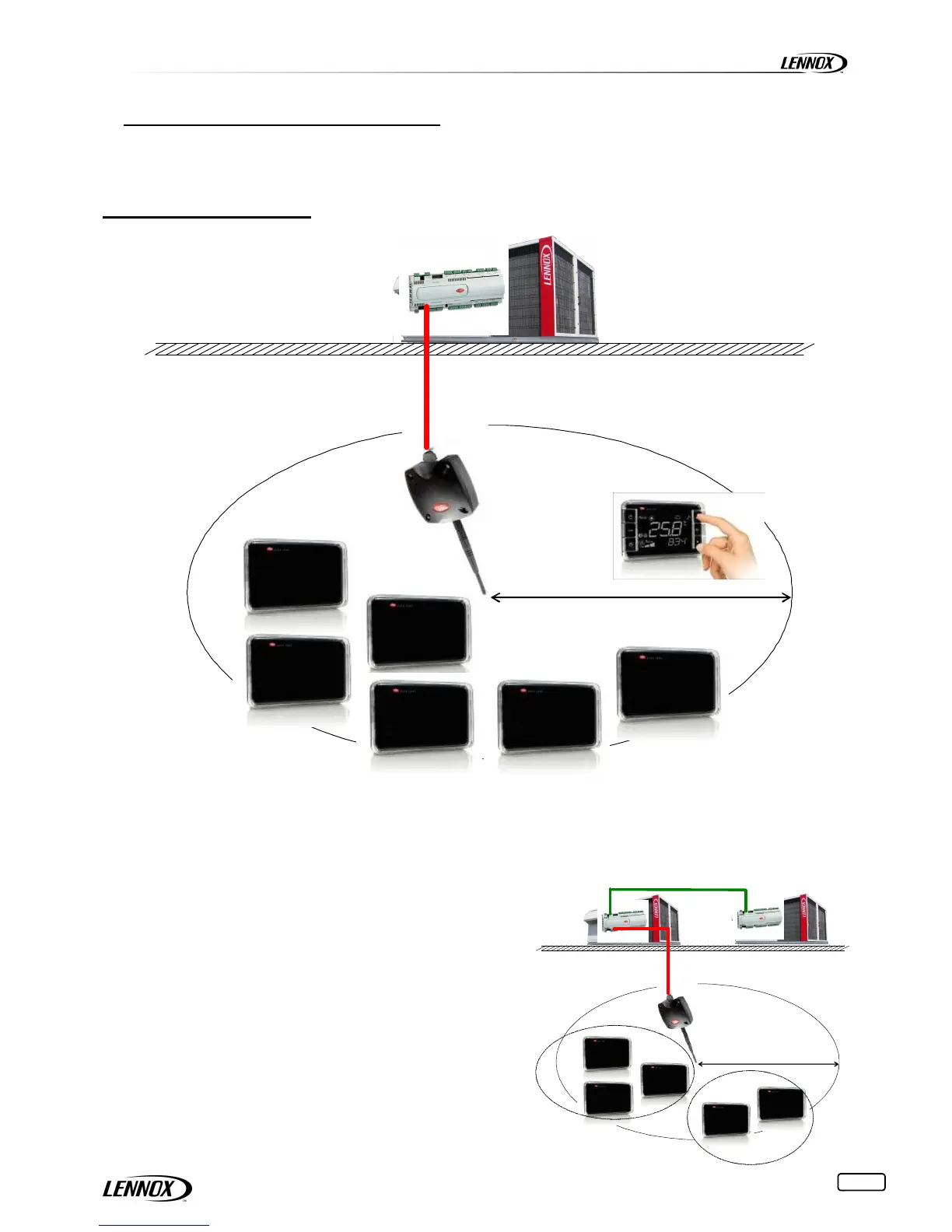

The Lennox© Wireless system is designed around an Access Point per unit. The latter, in a bubble radius of 50 meters
at most, allows connection to wireless displays 'DCw' and a maximum of 6 probes 'SCw'
The display allows the display and adjusting the parameters of the unit connected.
For probes, a setting can send to the unit concerned the average value of probes desired.
If the bus Master/Slave is made between units, the value of one or other probes connected to an APw may be sent to
another unit
50m
2 Sensors
for Unit 2
Access Point
APw
Master/Slave Connection
3 Sensors
f
or
U
nit 1
U
nit 1
U
nit
2
SCw
1
SCw
2
SCw
3
SCw
4
SCw
5
