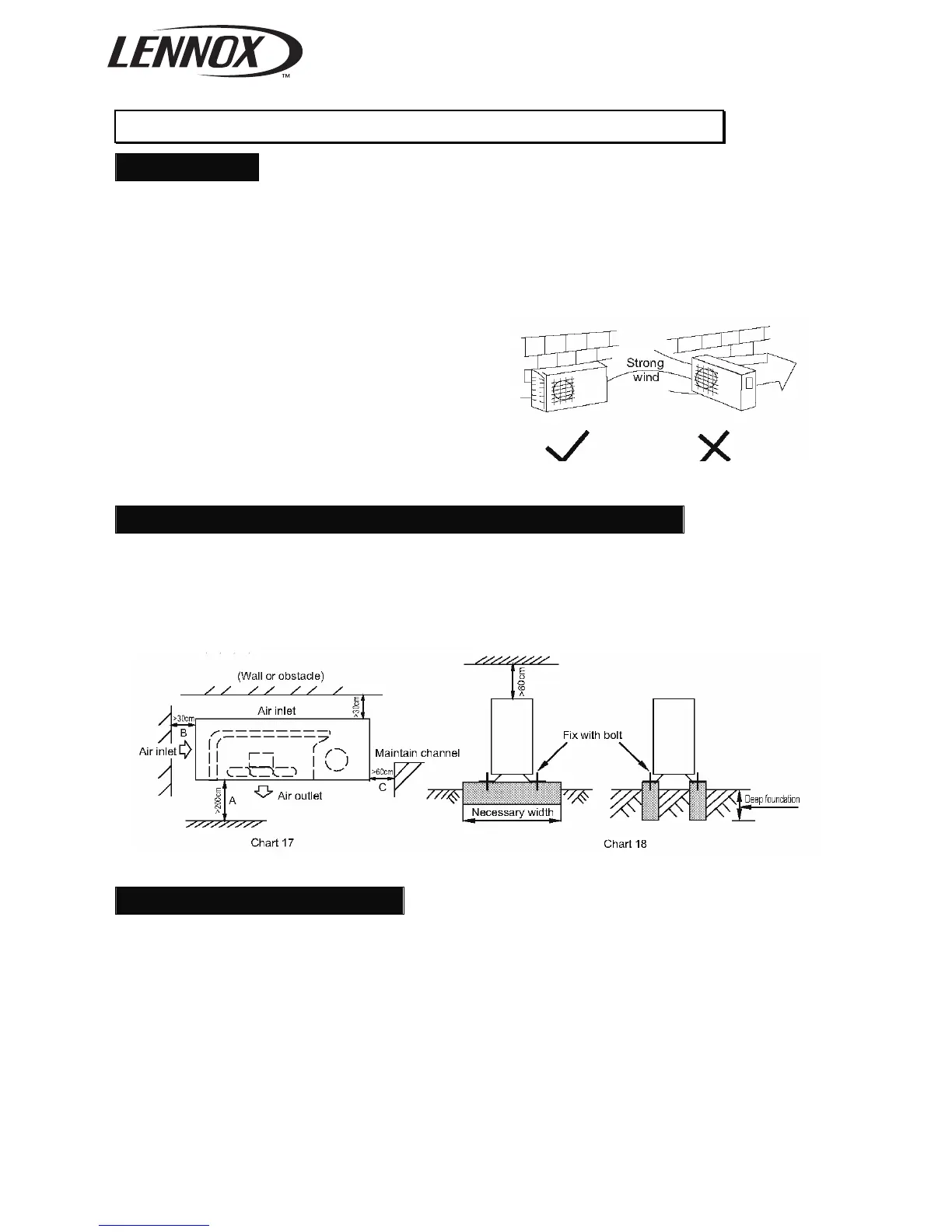

6. OUTDOOR UNIT INSTALLATION
CAUTION
• Keep this unit away from direct radiation of the sun or other heaters.
• If unavoidable, please cover it with a shelter.
• In places near coast or with a high attitude where the wind is violent, please install the outdoor unit
against the wall to ensure normal performance.
• Use a baffle when necessary.
• In the case of extremely strong wind, please prevent the air from flowing backwards into the outdoor
unit. (Refer to chart 16)
• Locate the outdoor unit as close to the indoor unit
as possible.
• The minimum distance between the outdoor unit
and obstacles described in the installation chart
does not mean that the same is applicable to the
situation of an airtight. Leave open two of three
directions A, B, C.
Chart 16
NECESSARY ROOM FOR INSTALLATION AND MAINTENANCE
(Refer to chart 17,chart 18)
If possible, please remove the obstacles nearby to prevent the performance from being impeded by too
little of air circulation.
The minimum distance between the outdoor unit and obstacles described in the installation chart does
not mean that the same is applicable to the situation of an airtight room. Leave open two of the three
directions (A,B,C)
MOVING AND INSTALLING
• Since the gravity center of this unit is not at its physical center, so please be careful when lifting it
with a sling.
• Never hold the air-in of the outdoor unit to prevent it from deforming.
• Do not touch the fan with hands or other objects.
• Do not lean it more than 45º, and do not lay it sidelong.
• Please fasten the feet of this unit with bolts firmly to prevent it from collapsing in case of earthquake
or strong wind.
• Make concrete foundation of the size of 590*328. (Refer to chart 18)
