10
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

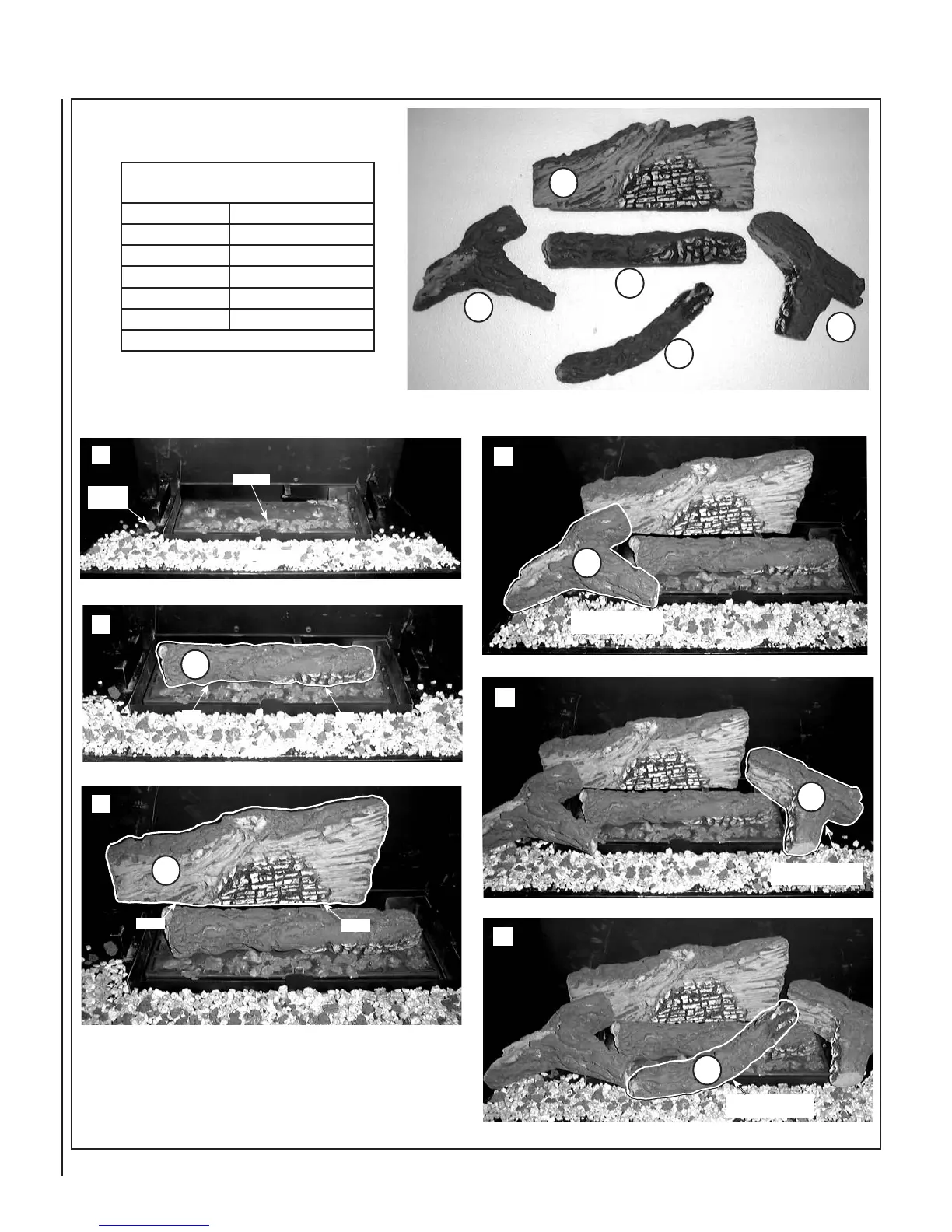

Figure 9
MODEL LMDV-4035
Log Placement Instructions
LOG SET
Catalog Number
H3365
* Item
Description
A
Log, Rear
B
Log, Left
C
Log, Center
D
Log, Center Front
E
Log, Right
* Item "letters" above correspond to photos
Install the Embers, Vermiculite, Volcanic Stone and Logs in the order
shown here (1 through 6) and per the instructions on Page 8.
D
C
E
A
B
1
2
3
4
5
6
Vermiculite
Volcanic
Stone
DO NOT PLACE EMBERS OVER GAS SLOTS
Embers
C
A
B
E
D
Place log over pins
Pin
Pin
Notch
Notch
The 2 notches
on log bottom
rest on locating
brackets
Notch on log bottom
fi ts over bracket
Notch on log bottom
fi ts over bracket
Slot on bottom of Log
(D) fi ts over bracket
To Next Page
