7
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

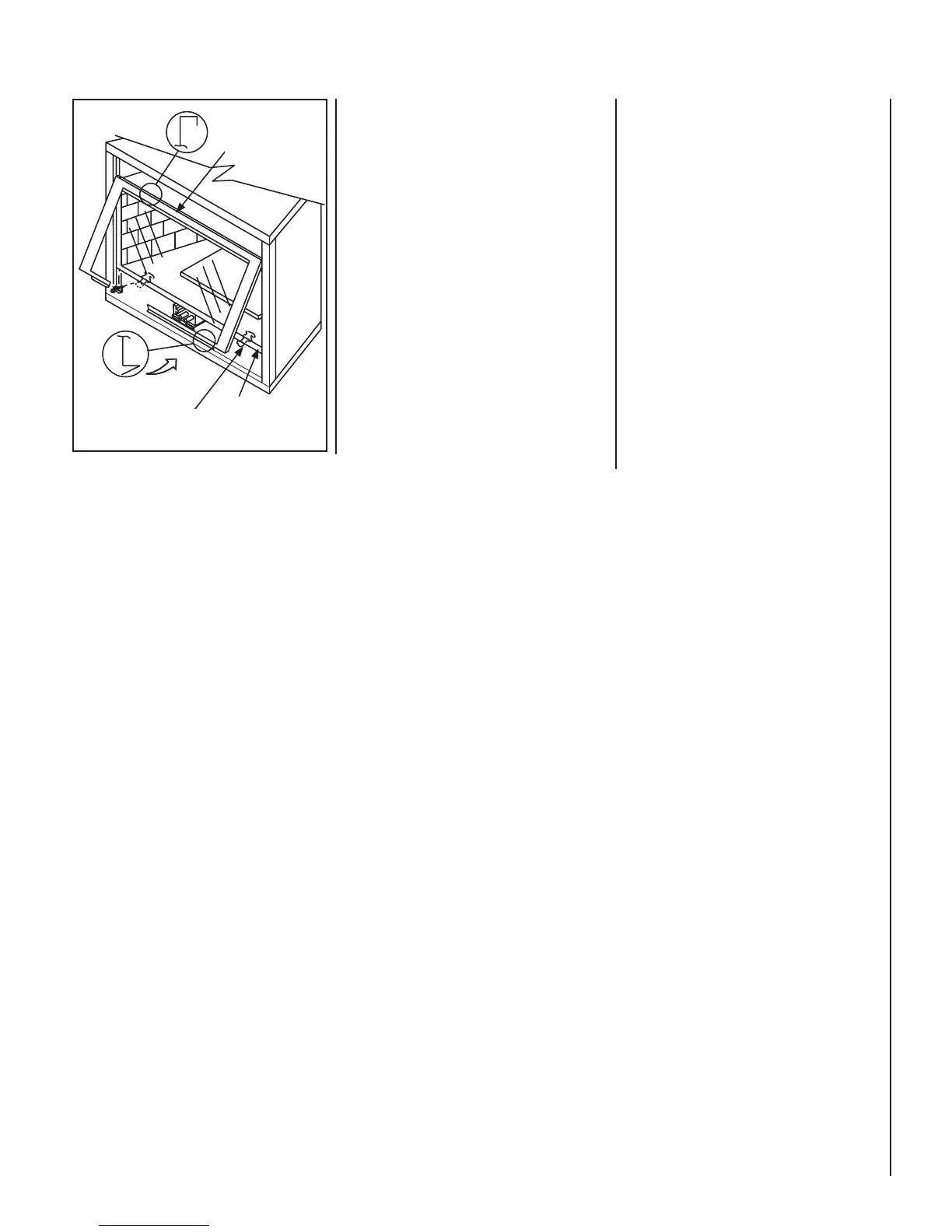

Figure 6 - INSTALLING GLASS DOOR
Top Flange on
Glass Door
Bottom Vee-fl ange
Glass Door
Glass Door Latch
Glass Door
Firebox Floor
Removing Glass Enclosure Panels
(see Figure 6)
1. Remove the top louver assembly by pulling
it up and out.
2. Remove the control compartment access
door (see removal instructions on Page 4
- Removing Control Compartment Door).
3. Locate the two (2) latches at the top of the
control compartment. To disengage the two
latches from the bottom vee-fl ange of the
glass enclosure panel, reach for the handles
located towards the back of the latches and
pull the handles down toward the front of
the appliance.
4. Swing the bottom of the door out and raise
it slightly to lift the top fl ange of the door
frame away from the appliance.
Installing Glass Enclosure Panels
(see Figure 6 )
1. Visually inspect the gasket on the backside
of the glass panel. The gasket surface must
be clean, free of irregularities and seated
fi rmly.
2. Position the glass enclosure panel in front of
the fi rebox opening at a 45 degree angle and
engage the top fl ange over the lip at the top
of the fi rebox opening. See Figure 6.
3. Swing the glass enclosure panel down and
back. Ensure the gasket seats evenly as the
panel draws shut. Engage the Vee-fl ange at
the bottom of the panel with the latches and
close the latches to secure the panel.
4. Reinstall the control compartment door
see installation instructions on Page 4 ,
Reinstalling Control Compartment Door).
