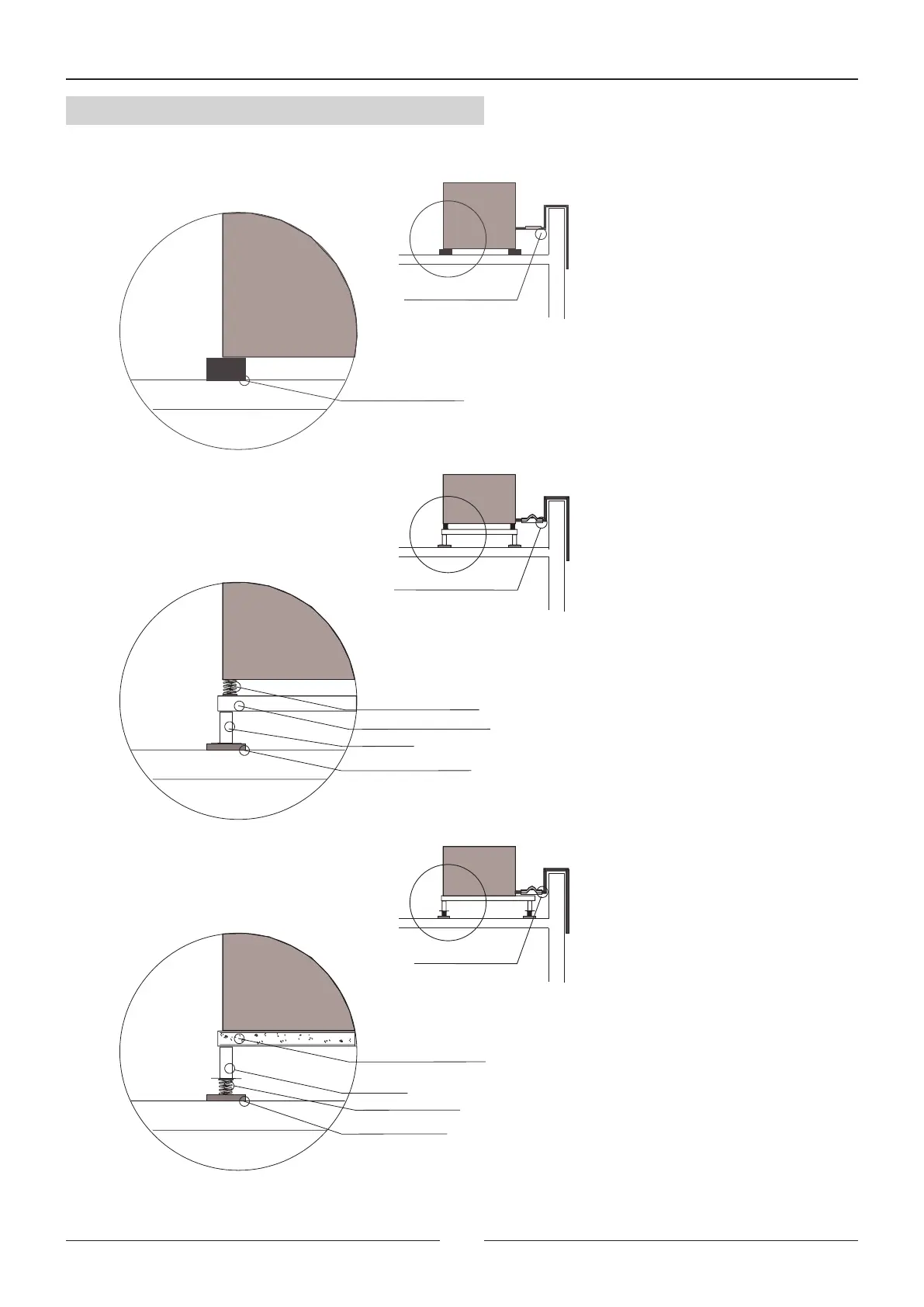

2.3.- ANTIVIBRATION MOUNTING
Unit
Flexible connection
Rubber mounting
Flexible connection with loop
Damping spring
Metallic structure
Support
Rubber mounting
Flexible connection with loop
Damping spring
Metallic and concrete structure
Support
Rubber mounting
Unit
Unit
1.- Mounting on a low sensibility zone
2.- Mounting on a medium sensibility zone
3.- Mounting on a high sensibility zone
(Check oor load)
