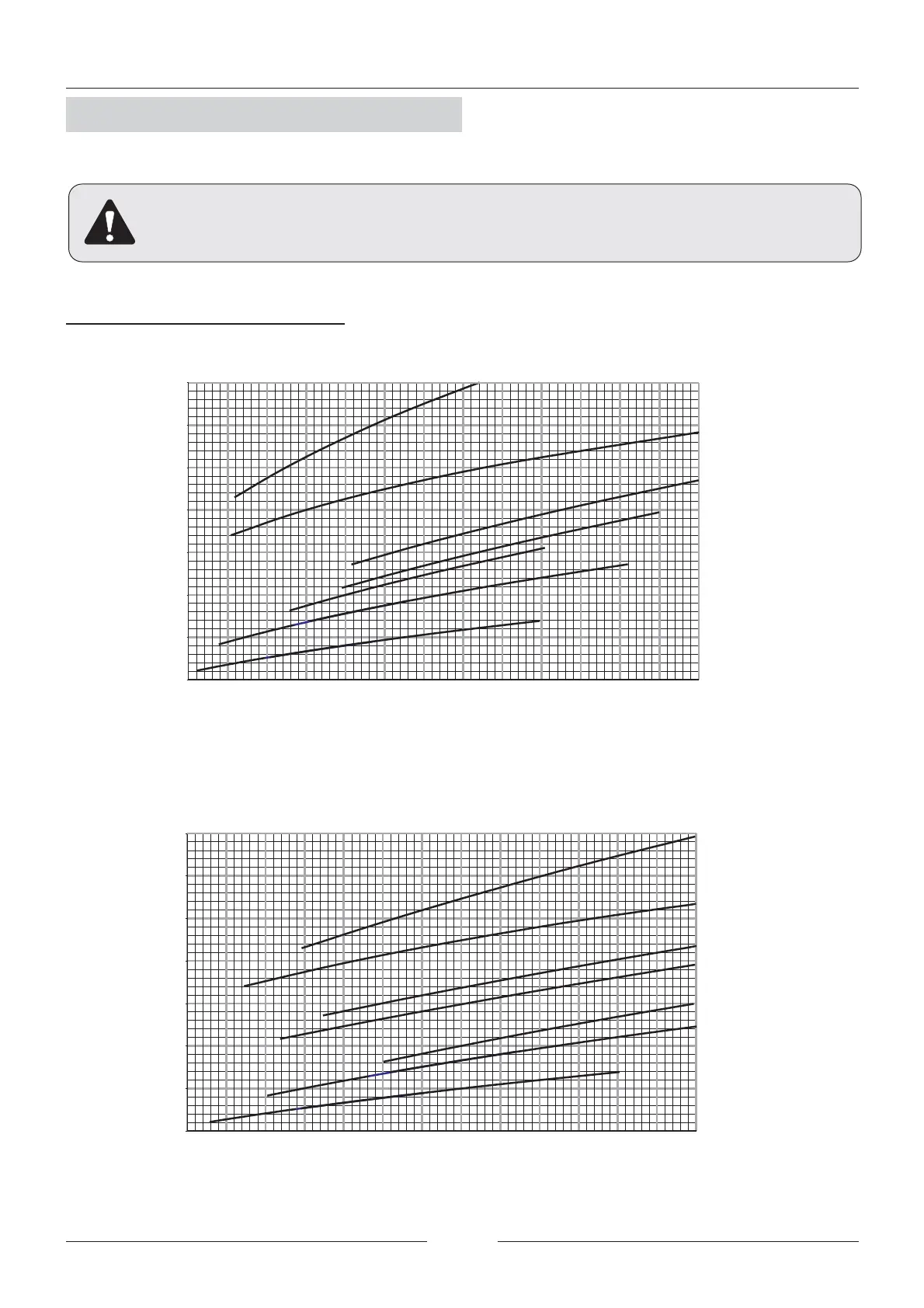

PRESSURE DROP WITHOUT FILTER
MODELS EAC / EAR 0091 TO 0431
PRESSURE DROP + WATER FILTER (*)
1.- GENERAL CHARACTERISTICS
1.5.- PRESSURE DROP IN THE WATER SYSTEM
Pressure drop KPa
Water flow M3/h
1
2
3
4
5
6
7
8
15 20 25 30 35 40 45 50 55 60 65 70 75 80
EAR/C 0111
EAR/C 0091
EAR/C 0151
EAR/C 0191
EAR/C 0251
EAR/C 0211
EAR/C 0351
EAR/C 0431
EAR/C 0291
Pressure drop KPa
Water flow M3/h
1
2
3
4
5
6
7
8
35 40 45 50 55 60 65 70 75 80 85 90 95 100
EAR/C 0111
EAR/C 0091
EAR/C 0151
EAR/C 0191
EAR/C 0251
EAR/C 0211
EAR/C 0351
EAR/C 0431
EAR/C 0291
INSTALLATION ADVISE
The units MUST be fitted with a water filter at the inlet to the unit (trapping any particles with a diameter
greater than 1 mm.)
