Water flow M3/h
(*) Option in standard version, included in Hydronic and Hydraulic version.
MODELS 0472 TO 1303
COOLING ONLY (EAC)
HEAT PUMPS (EAR)
1.- GENERAL CHARACTERISTICS

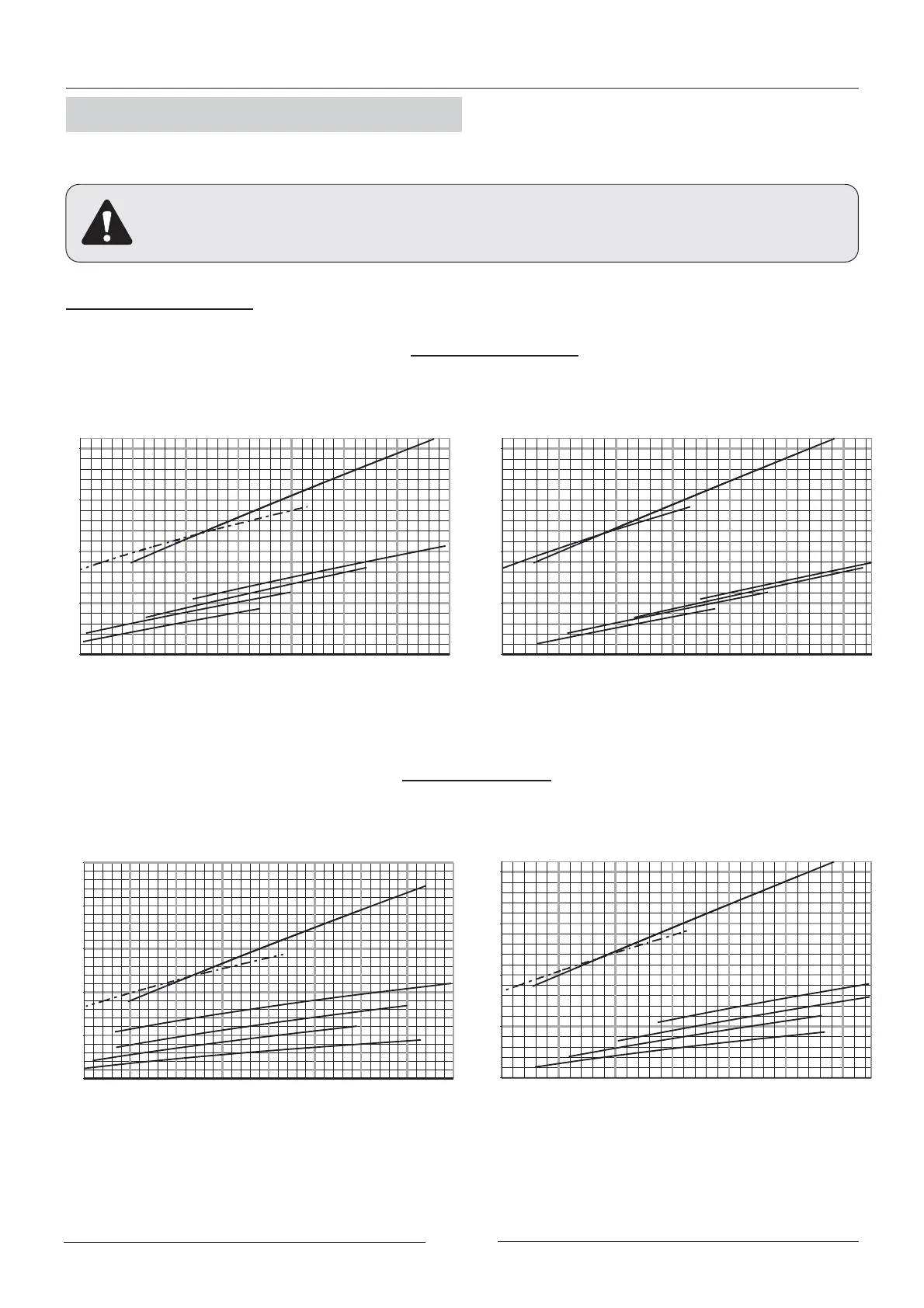

1.5.- PRESSURE DROP IN THE WATER SYSTEM
PRESSURE DROP WITHOUT FILTER
Pressure drop KPa
Water flow M3/h
5
10
15
20
25
25 30 35 40 45 50 55 60
EAC 1003
EAC 1103
EAC 1203
EAC 1303
EAC 0812
EAC 0672
EAC 0552
EAC 0472
PRESSURE DROP + WATER FILTER (*)
Pressure drop KPa
5
10
15
20
25
30 40 50 60 70 80 90
EAC 1003
EAC 1103
EAC 1203
EAC 1303
EAC 0812
EAC 0672
EAC 0552
EAC 0472
PRESSURE DROP WITHOUT FILTER
Pressure drop KPa
Water flow M3/h
5
10
15
20
25
30
25
30 35
40
45 50 55 60 65
EAR 0472
EAR 0552
EAR 0672
EAR 0812
EAR 1003
EAR 1103
EAR 1203
EAR 1303
PRESSURE DROP + WATER FILTER (*)
Pressure drop KPa
Water flow M3/h
5
10
15
20
25
30 40 50 60 70 80 90
EAR 0472
EAR 0552
EAR 0672
EAR 0812
EAR 1003
EAR 1103
EAR 1203
EAR 1303
INSTALLATION ADVISE
The units MUST be fitted with a water filter at the inlet to the unit (trapping any particles with a diameter
greater than 1 mm.)
