Page 73

MATCH UP COMMENTS OR SEQUENCE WIRING CONNECTIONS

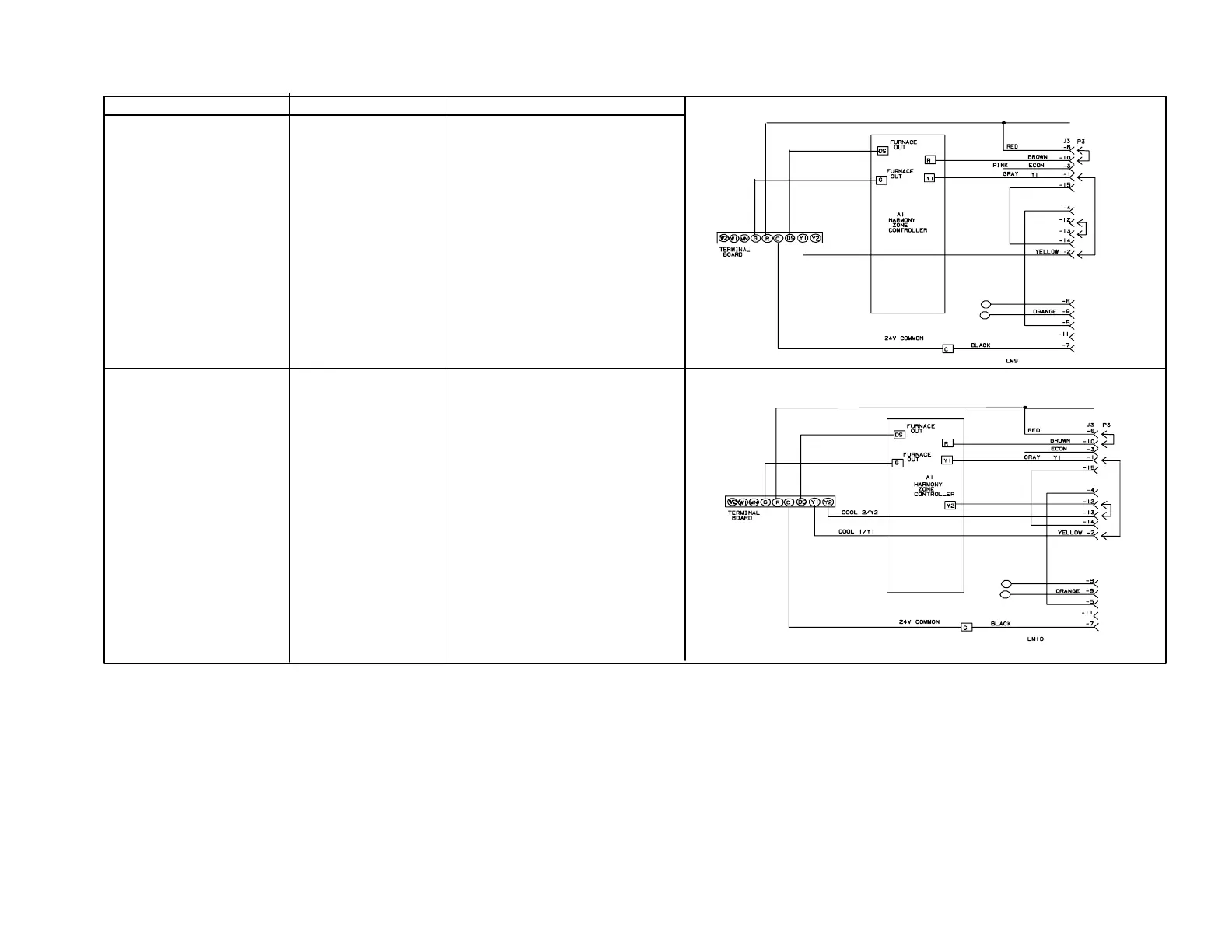

G32V−1 / −3 OPERATION SEQUENCE AND JUMPERS SUMMARY WITH VSP2 (COOLING CONTINUED)

Harmony and Two-

Speed Compressor

Harmony and Single-

Speed Compressor

No Jumpers

(Remove

jumper from

Y1 to DS").

Remove pin #3 of the J73

terminal on the VSP con-

trol. Insulate end to pre-

vent shorting. Blower oper-

ates on PWM signal gener-

ated by Harmony. Harmony

overrides blower speed

taps. Blower speed varies

according to zone demand.

(continued from previous page)

FOR HEATING JUMPERS

SEE SEE HEATING SECTION

ABOVE

T−STRIP JUMPER
