MATCH UP COMMENTS OR SEQUENCE

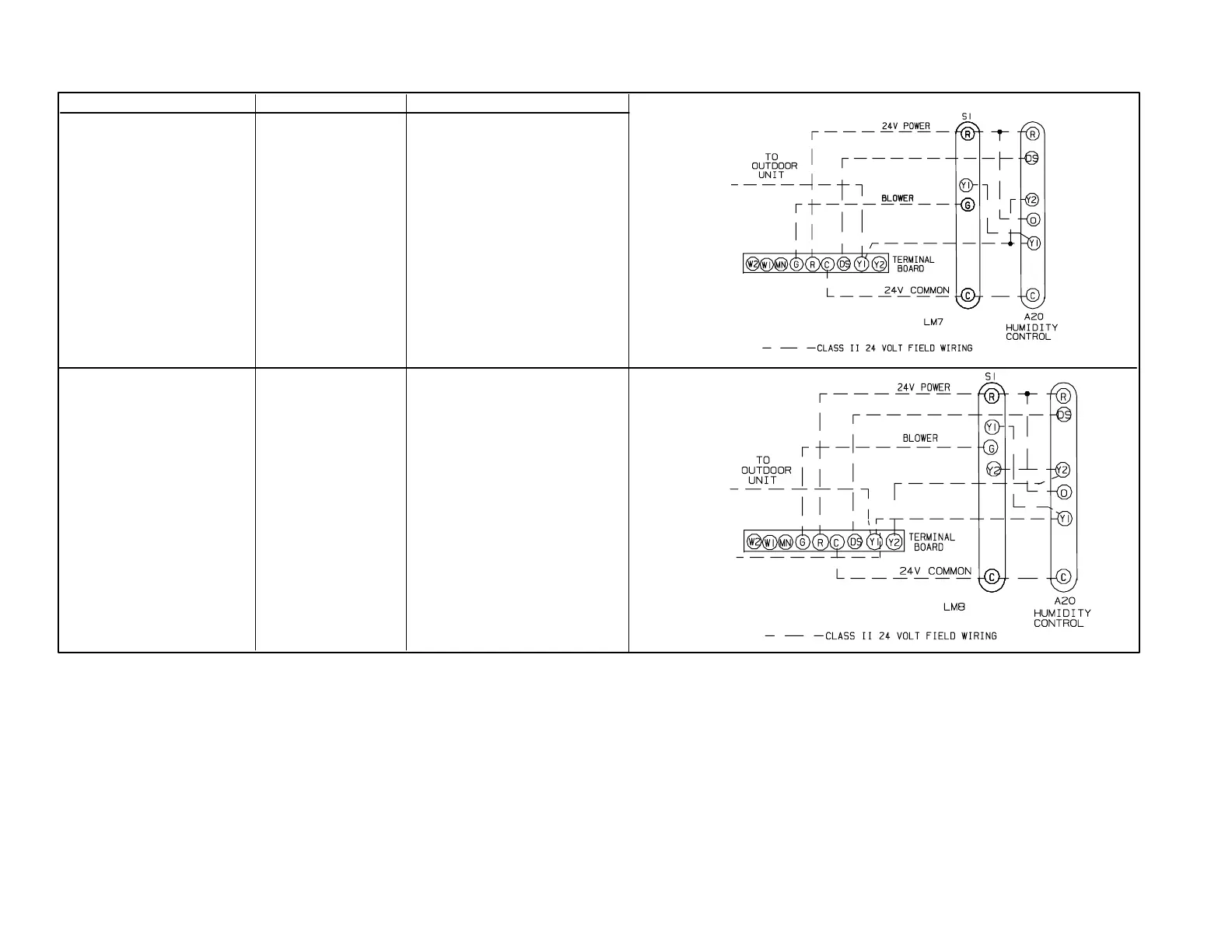

G32V−1 / −3 OPERATION SEQUENCE AND JUMPERS SUMMARY WITH VSP2 (COOLING CONTINUED)
CCB1 with Two-Speed
Compressor, no Harmony
Blower speed is controlled by
the DC signal from CCB1.
Blower operates on low speed
heat/cool tap during dehumidi-
fication. Otherwise, blower op-
erates on high speed cool tap
during high speed compressor
operation and low speed heat/
cool tap during low speed
compressor operation.
FOR HEATING JUMPERS
SEE HEATING SECTION
ABOVE
CCB1 with Single-Speed
Compressor, no Harmony
Blower speed is controlled by
the DC signal from CCB1.
Blower operates on low speed
heat/cool tap during dehumidifi-
cation. Otherwise, blower oper-
ates on high speed cool tap
during cooling cycle.
No Jumpers
(Remove jumper
from Y1 to DS")
T−STRIP JUMPER
No Jumpers
(Remove jumper
from Y1 to DS")
