Page 76

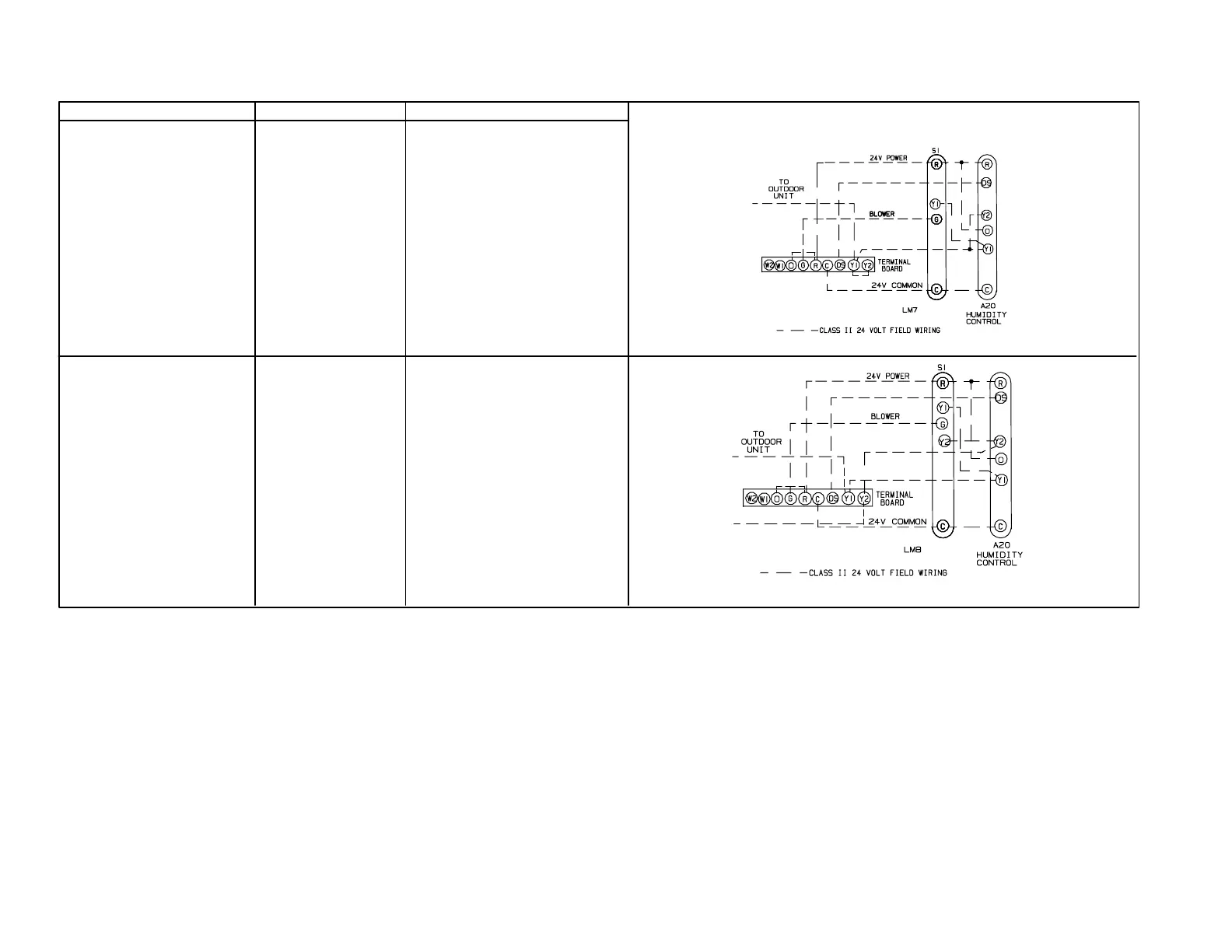

MATCH UP COMMENTS OR SEQUENCE
WIRING CONNECTIONS
G32V−4 OPERATION SEQUENCE AND JUMPERS SUMMARY WITH VSP3 (COOLING CONTINUED)
CCB1 with Two-Speed
Compressor, no Harmony
See table 14.
FOR HEATING JUMPERS
SEE HEATING SECTION
ABOVE
CCB1 with Single-Speed
Compressor, no Harmony
Blower speed is controlled
by the DC signal from
CCB1. Blower operates on
low speed during
dehumidification.
Otherwise, blower operates
on high speed during
cooling cycle.
Y1 to Y2
and
O to R
Remove the
factory−wired
jumper
Y1 to DS.
T−STRIP JUMPER
O to R
Remove jumper
from Y1 to DS
and
Y1 to Y2.
(continued from previous page)
(continued on following page)
