G32V−5 Units with Two Stage Variable Speed Control

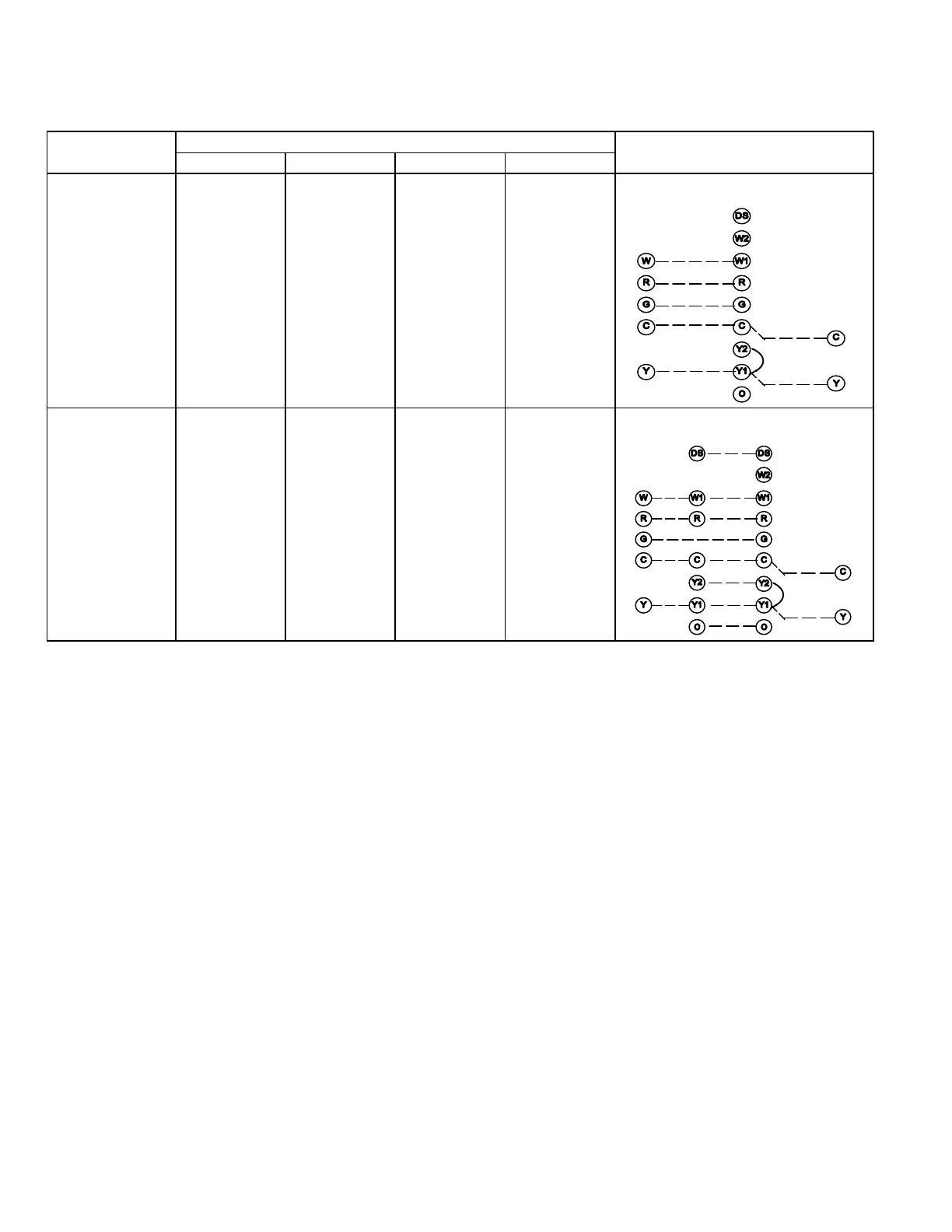

TABLE 37
Field Wiring Applications
Thermostat
Jumper Settings (See figure 16)
Wiring Connections
Thermostat
E20 W915 W914 W951
Wiring Connections
1 Heat / 1 Cool
NOTE − Use dip
switch 3 to set
second−stage
heat ON delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Yes Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
1 Heat / 1 Cool
with CCB1
NOTE − Use dip
switch 3 to set
second−stage
heat ON delay.
ON−10 minutes.
OFF−15 minutes.
SINGLE Yes Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
CCB1
