Lennox G60UHV Series User Manual

Gasket
Flue
Transition
FlueBoxGasket
Flue
Collector
Box
Combustion Air
Orifice
Combustion Air
Pressure Switch Assembly
(two switches)
./
Combustion Air Inducer
Flame Sensor Limit Shield
_Flame Rollout Switches \
Air Intake _ _ Primary \ /I
Cover _ Limit
Burner //__ I
Box Tol I Kz'2 I
NOx Insert
Gas Valve
Gas
Orifices
Gasket
Heat Exchanger
Sight
Glass
Burner
Box Cover
Bracket
Burner Box Bottom
Control Transformer
Ignitor
Circuit Breaker
Air Deflector
G60UH-60C-110
Units Only
\
Secondary Limit(s)
Power Choke
(1 hp Only)
Variable Speed
Blower Motor
Two-Stage, Variable Speed
Integrated Control Board
Door Interlock Switch

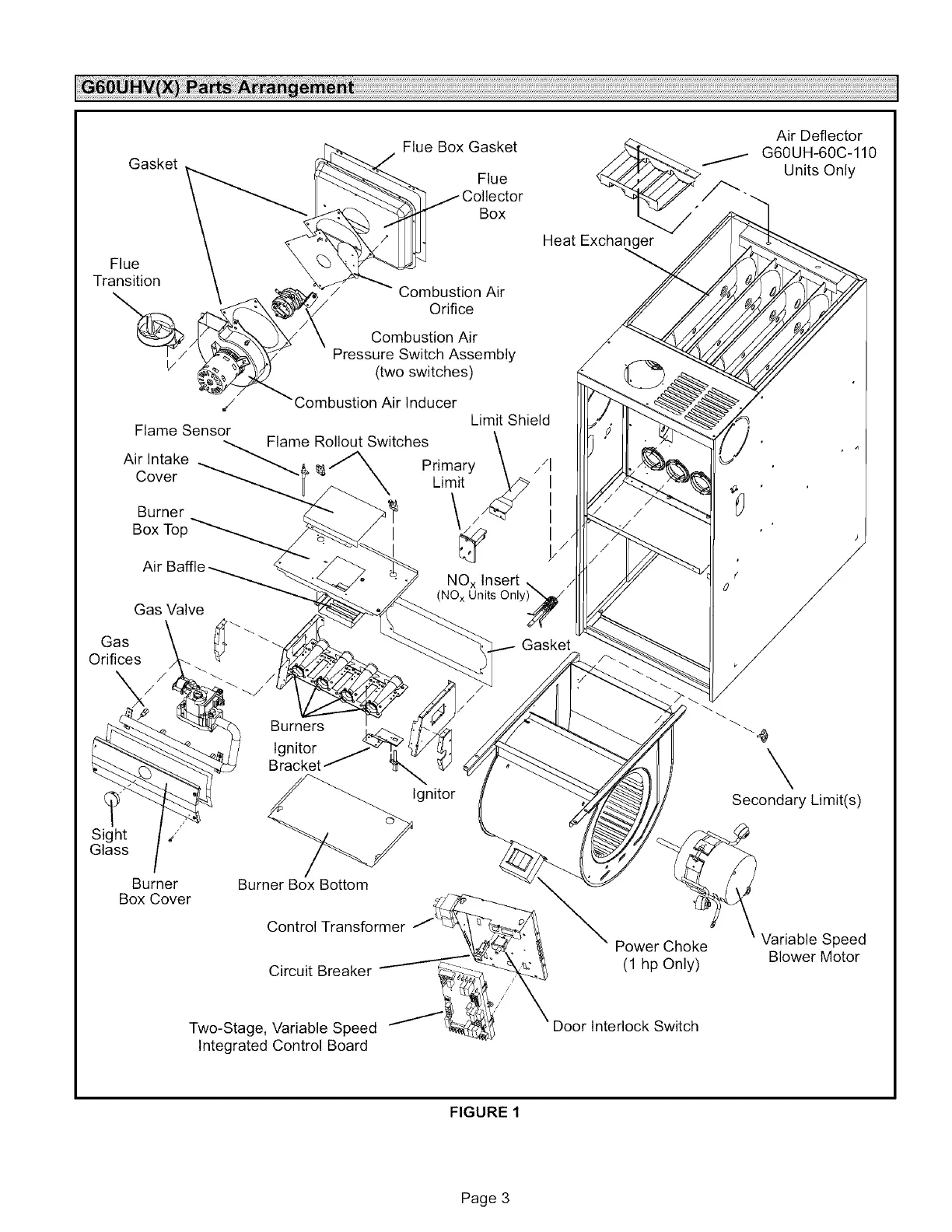

FIGURE 1
Page 3
