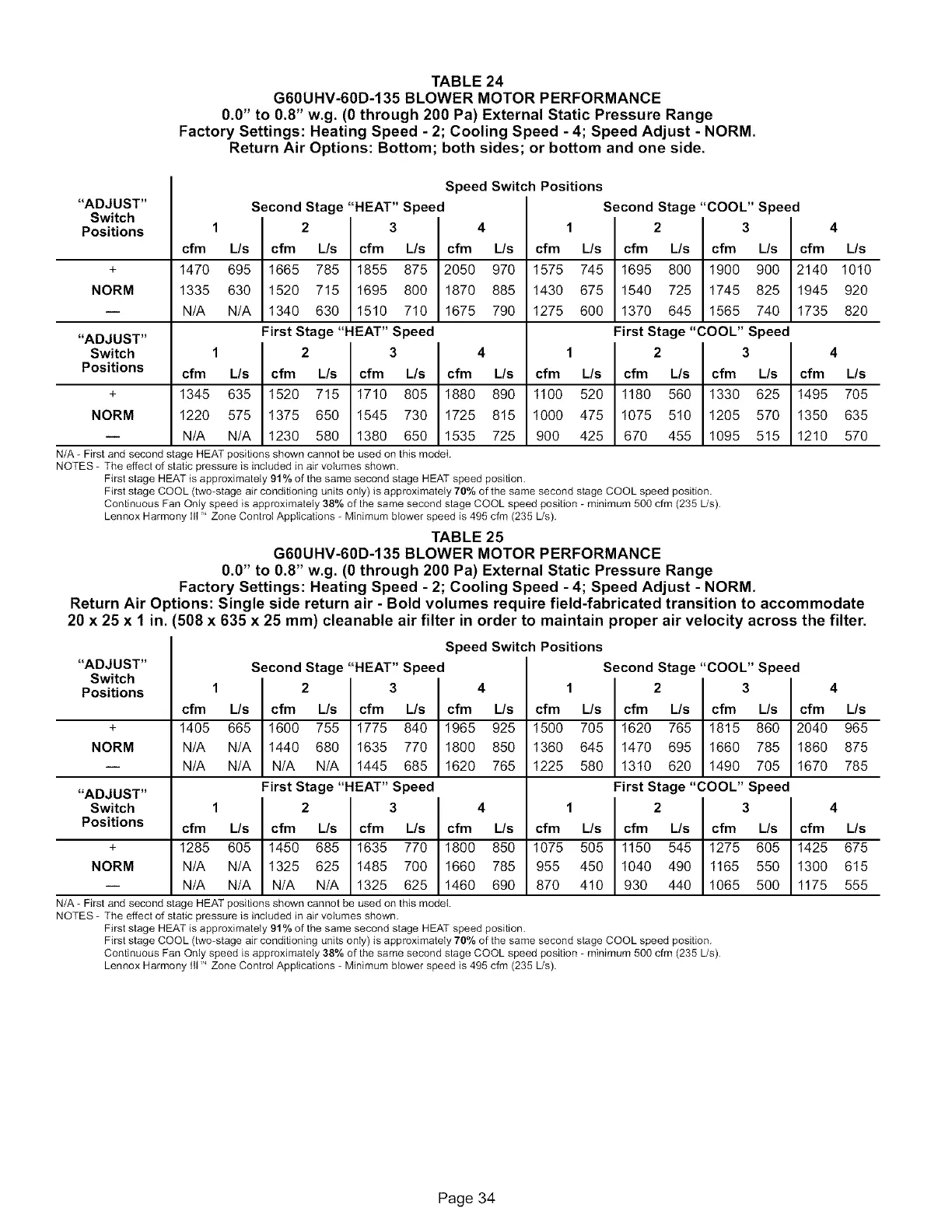

TABLE 24
G60UHV-60D-135 BLOWER MOTOR PERFORMANCE
0.0" to 0.8" w.g. (0 through 200 Pa) External Static Pressure Range
Factory Settings: Heating Speed - 2; Cooling Speed - 4; Speed Adjust - NORM.
Return Air Options: Bottom; both sides; or bottom and one side.
"ADJUST"
Switch
Positions
Speed Switch Positions
Second Stage "HEAT" Speed Second Stage "COOL" Speed
1 2 3 4 1 2 3 4
cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1470 695 1665 785 1855 875 2050 970 1575 745 1695 800 1900 900 2140 1010
NORM 1335 630 1520 715 1695 800 1870 885 1430 675 1540 725 1745 825 1945 920
i N/A N/A 1340 630 1510 710 1675 790 1275 600 1370 645 1565 740 1735 820
"ADJUST" First Stage "HEAT" Speed First Stage "COOL" Speed
Switch 1 2 3 4 1 2 3 4
Positions cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1345 635 1520 715 1710 805 1880 890 1100 520 1180 560 1330 625 1495 705
NORM 1220 575 1375 650 1545 730 1725 815 1000 475 1075 510 1205 570 1350 635
-- N/A N/A 1230 580 1380 650 1535 725 900 425 670 455 1095 515 1210 570
N/A - First and second stage HEAT positions shown cannot be used on this model.
NOTES - The effect of static pressure is included in air volumes shown.
First stage HEAT is approximately 91% of the same second stage HEAT speed position.
First stage COOL (two-stage air conditioning units only) is approximately 70% of the same second stage COOL speed position.
Continuous Fan Only speed is approximately 38% of the same second stage COOL speed position - minimum 500 cfm (235 Us).
Lennox Harmony Ill ' Zone Control Applications - Minimum blower speed is 495 cfm (235 Us).
TABLE 25
G60UHV-60D-135 BLOWER MOTOR PERFORMANCE
0.0" to 0.8" w.g. (0 through 200 Pa) External Static Pressure Range
Factory Settings: Heating Speed - 2; Cooling Speed - 4; Speed Adjust - NORM.
Return Air Options: Single side return air - Bold volumes require field-fabricated transition to accommodate
20 x 25 x 1 in. 508 x 635 x 25 mm) cleanable air filter in order to maintain proper air velocity across the filter.
"ADJUST"
Switch
Positions
Speed Switch Positions
Second Stage "HEAT" Speed Second Stage "COOL" Speed
1 2 3 4
cfm L/s cfm L/s cfm L/s cfm L/s
1500 705 1620 765 1815 860 2040 965
1360 645 1470 695 1660 785 1860 875
1225 580 1310 620 1490 705 1670 785
1 2 3 4
cfm L/s cfm L/s cfm L/s cfm L/s
+ 1405 665 1600 755 1775 840 1965 925
NORM N/A N/A 1440 680 1635 770 1800 850
i N/A N/A N/A N/A 1445 685 1620 765
"ADJUST" First Stage "HEAT" Speed First Stage "COOL" Speed
Switch 1 2 3 4 1 2 3 4
Positions cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s cfm L/s
+ 1285 605 1450 685 1635 770 1800 850 1075 505 1150 545 1275 605 1425 675
NORM N/A N/A 1325 625 1485 700 1660 785 955 450 1040 490 1165 550 1300 615
i N/A N/A N/A N/A 1325 625 1460 690 870 410 930 440 1065 500 1175 555
N/A - First and second stage HEAT positions shown cannot be used on this model.
NOTES - The effect of static pressure is included in air volumes shown.
First stage HEAT is approximately 91% of the same second stage HEAT speed position.
First stage COOL (two-stage air conditioning units only) is approximately 70% of the same second stage COOL speed position.
Continuous Fan Only speed is approximately 38% of the same second stage COOL speed position - minimum 500 cfm (235 Us).
Lennox Harmony Ill" Zone Control Applications - Minimum blower speed is 495 cfm (235 Us).
Page 34
