Page 41

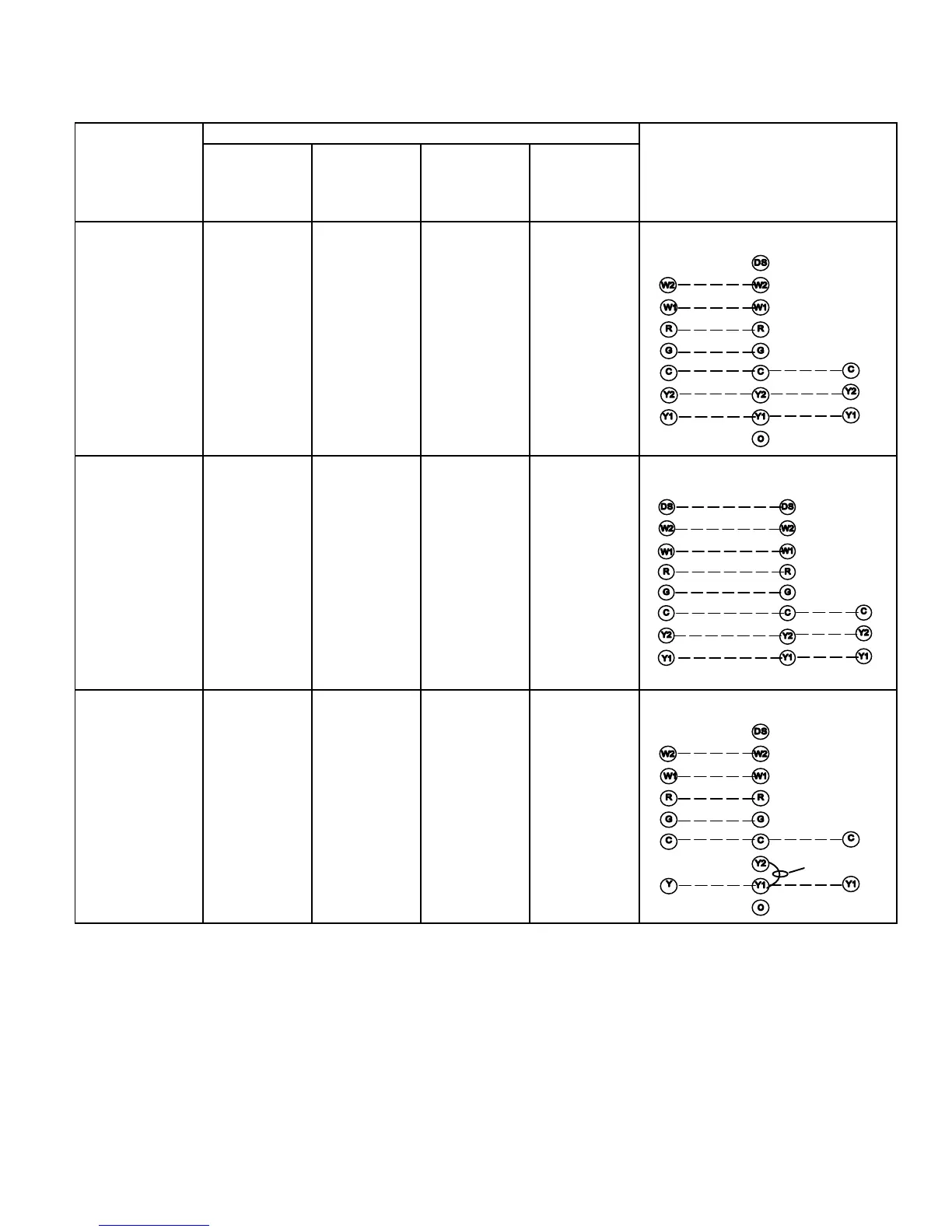

TABLE 11
Field Wiring Applications (Continued)
Thermostat
Dip Switch Settings and On Board Links (See figure 56)
Wiring Connections
DIP Switch 1
W915
Two−Stage
Cooling
W914 Dehu-
midification
or Harmony
IIIt
W951
Heat Pumps
2 Heat / 2 Cool OFF Cut Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
2 Heat / 2 Cool
with t’stat with
humidity control
OFF Cut Cut Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
2 Heat / 1 Cool OFF Intact Intact Intact
S1
T’STAT
CONTROL
TERM. STRIP
OUTDOOR
UNIT
EXISTING
W915 JUMPER
