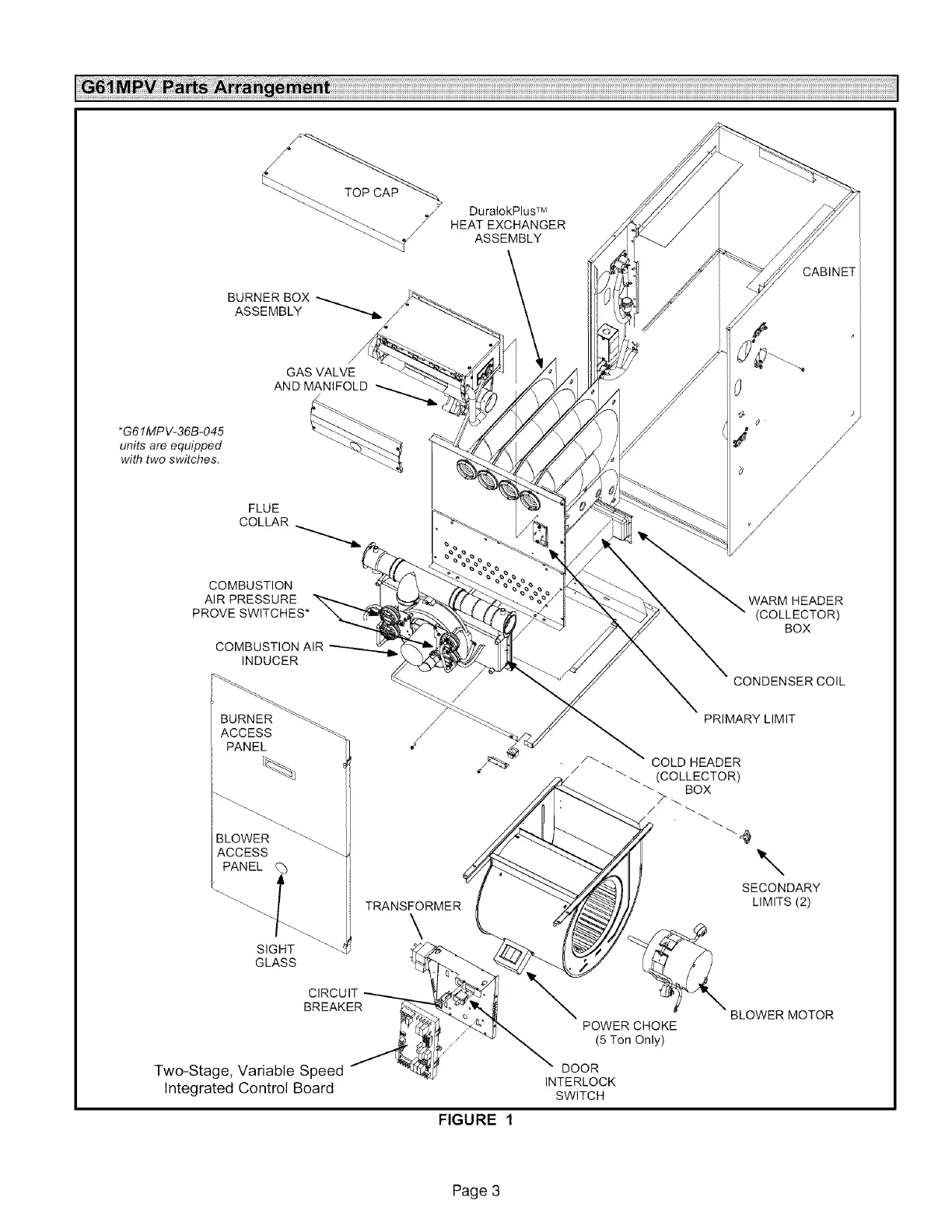

BURNER BOXASSEMBLY
*G61MPV-36B-045
units are equipped
with two switches.
GAS VALVE
AND MANIFOLD
FLUE
COLLAR
DuralokPlus TM
HEATEXCHANGER
ASSEMBLY
CABINET
COMBUSTION
AIR PRESSURE
PROVE SWITCHES*
WARM HEADER
(COLLECTOR)
BOX
INDUCER
BURNER
ACCESS
PANEL
BLOWER
I ACCESS
SIGHT
GLASS
CIRCUIT
BREAKER
TRANSFORMER
\
Two-Stage, Variable Speed
Integrated Control Board
CONDENSER COIL
PRIMARY LIMIT
\
SECONDARY
LIMITS (2)
POWER CHOKE
(5 Ton Only)
DOOR
INTERLOCK
SWITCH
BLOWER MOTOR
FIGURE 1
Page 3
