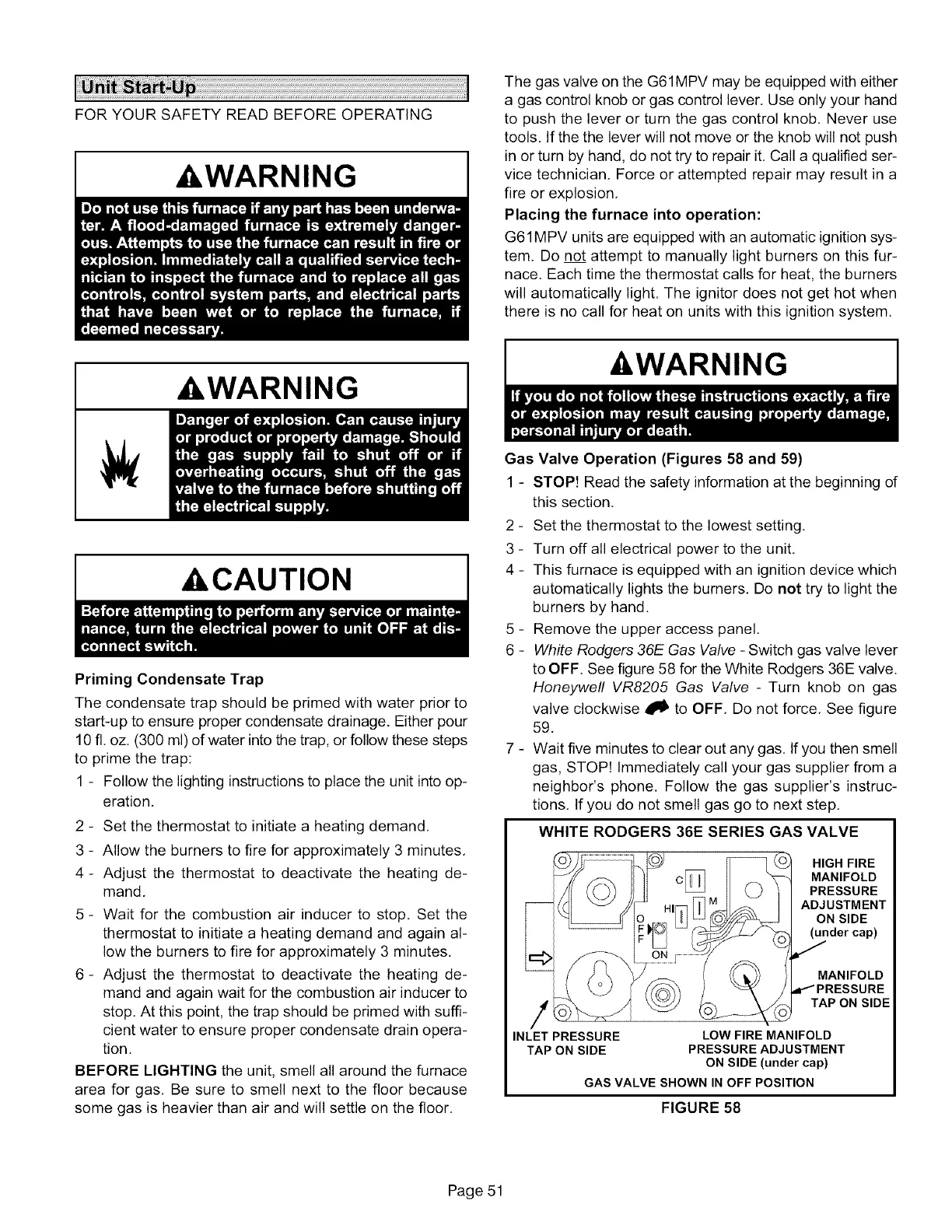

FORYOURSAFETYREADBEFOREOPERATING
AkWARNING
AkWARNING
The gas valve on the G61MPV may be equipped with either
a gas control knob or gas control lever. Use only your hand
to push the lever or turn the gas control knob, Never use
tools. If the the lever will not move or the knob will not push
in or turn by hand, do not try to repair it. Call a qualified ser-
vice technician. Force or attempted repair may result in a
fire or explosion,
Placing the furnace into operation:
G61MPV units are equipped with an automatic ignition sys-
tem. Do not attempt to manually light burners on this fur-
nace, Each time the thermostat calls for heat, the burners
will automatically light. The ignitor does not get hot when
there is no call for heat on units with this ignition system.
AkCAUTION
Priming Condensate Trap
The condensate trap should be primed with water prior to
start-up to ensure proper condensate drainage. Either pour
10 fi, oz. (300 ml) of water into the trap, or follow these steps
to prime the trap:
1 - Follow the lighting instructions to place the unit into op-
eration,
2 - Set the thermostat to initiate a heating demand,
3 - Allow the burners to fire for approximately 3 minutes,
4- Adjust the thermostat to deactivate the heating de-
mand,
5 - Wait for the combustion air inducer to stop, Set the
thermostat to initiate a heating demand and again al-
low the burners to fire for approximately 3 minutes,
6- Adjust the thermostat to deactivate the heating de-
mand and again wait for the combustion air inducer to
stop. At this point, the trap should be primed with suffi-
cient water to ensure proper condensate drain opera-
tion,
BEFORE LIGHTING the unit, smell all around the furnace
area for gas, Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
-&WARNING
Gas Valve Operation (Figures 58 and 59)
1 - STOP! Read the safety information at the beginning of
this section,
2 - Set the thermostat to the lowest setting,
3 - Turn off all electrical power to the unit,
4 - This furnace is equipped with an ignition device which
automatically lights the burners, Do not try to light the
burners by hand.
5 - Remove the upper access panel.
6 - White Rodgers 36E Gas Valve - Switch gas valve lever
to OFF. See figure 58 for the White Rodgers 36E valve.
Honeywell VR8205 Gas Valve - Turn knob on gas
valve clockwise _lb to OFF, Do not force, See figure
59,
7 - Wait five minutes to clear out any gas, If you then smell
gas, STOP! Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's instruc-
tions, If you do not smell gas go to next step,
WHITE RODGERS 36E SERIES GAS VALVE
HIGH FIRE
MANIFOLD
PRESSURE
ADJUSTMENT
ON SIDE
(under cap)
MANIFOLD
TAP ON SIDE
INLET PRESSURE LOW FIRE MANIFOLD
TAP ON SIDE PRESSURE ADJUSTMENT
ON SIDE (under cap)
GAS VALVE SHOWN IN OFF POSITION
FIGURE 58
Page 51
