Page 16
506393−01 11/2010

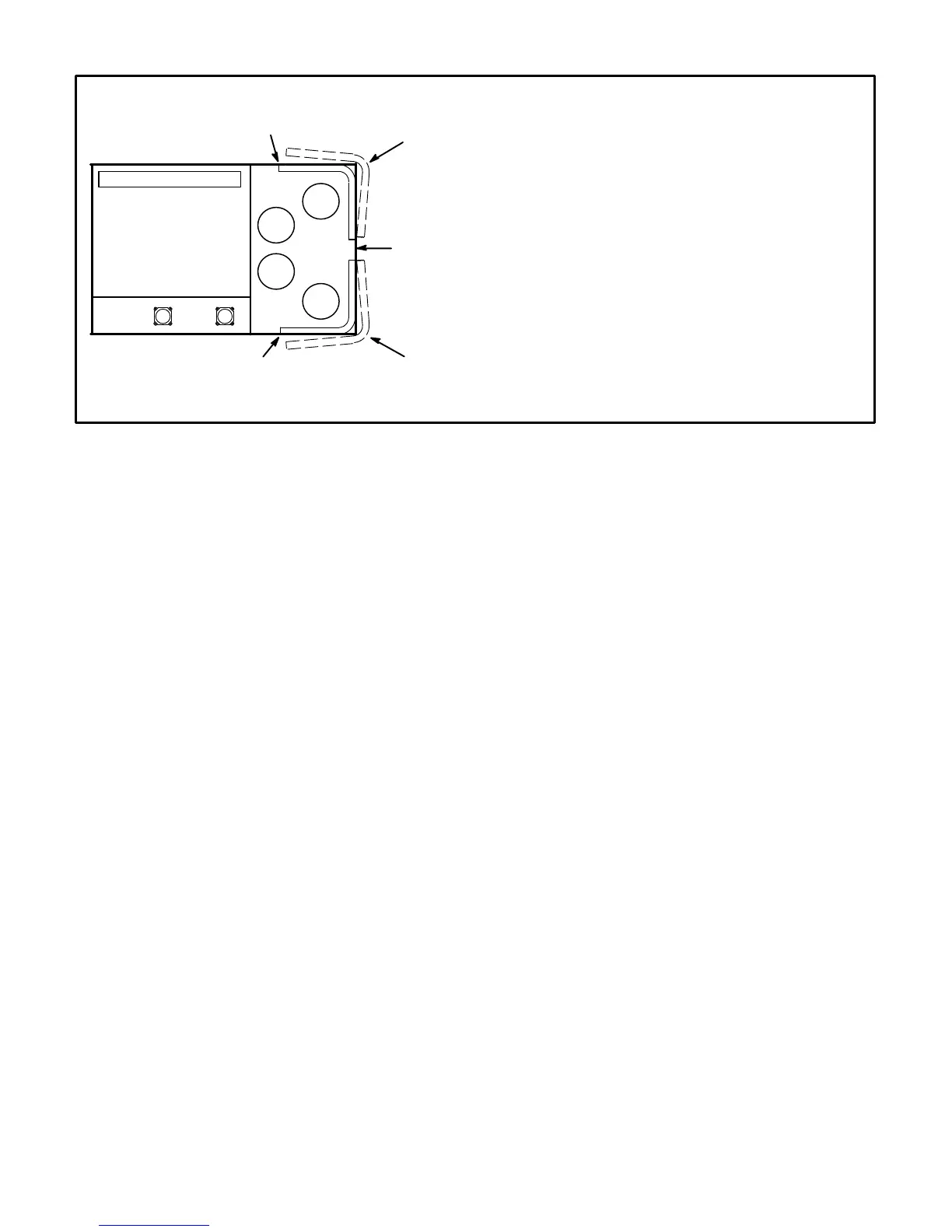

TOP VIEW
OUTDOOR
COIL
FIGURE 11
1− Remove unit outdoor section top panel and outdoor
coil access panel.
2− Remove screws securing coil end plates to mullions.
3− Remove wire ties connecting coils slabs and separate
slabs 3−4" (76−102mm).
4− Clean coils with detergent or commercial coil cleaner.
5− Rinse thoroughly with water and reassemble.
6− Secure coil slabs together using field−provided
wire ties.
CLEAN CONDENSER COIL
END PLATE IS
SECURED TO
MULLION
INDOOR COIL
OUTDOOR
COIL
OUTDOOR
COIL ACCESS
PANEL
END PLATE IS
SECURED TO
MULLION
