Lennox LCH180H

Page 32
LGH/LCH156, 180, 210, 240, 300S

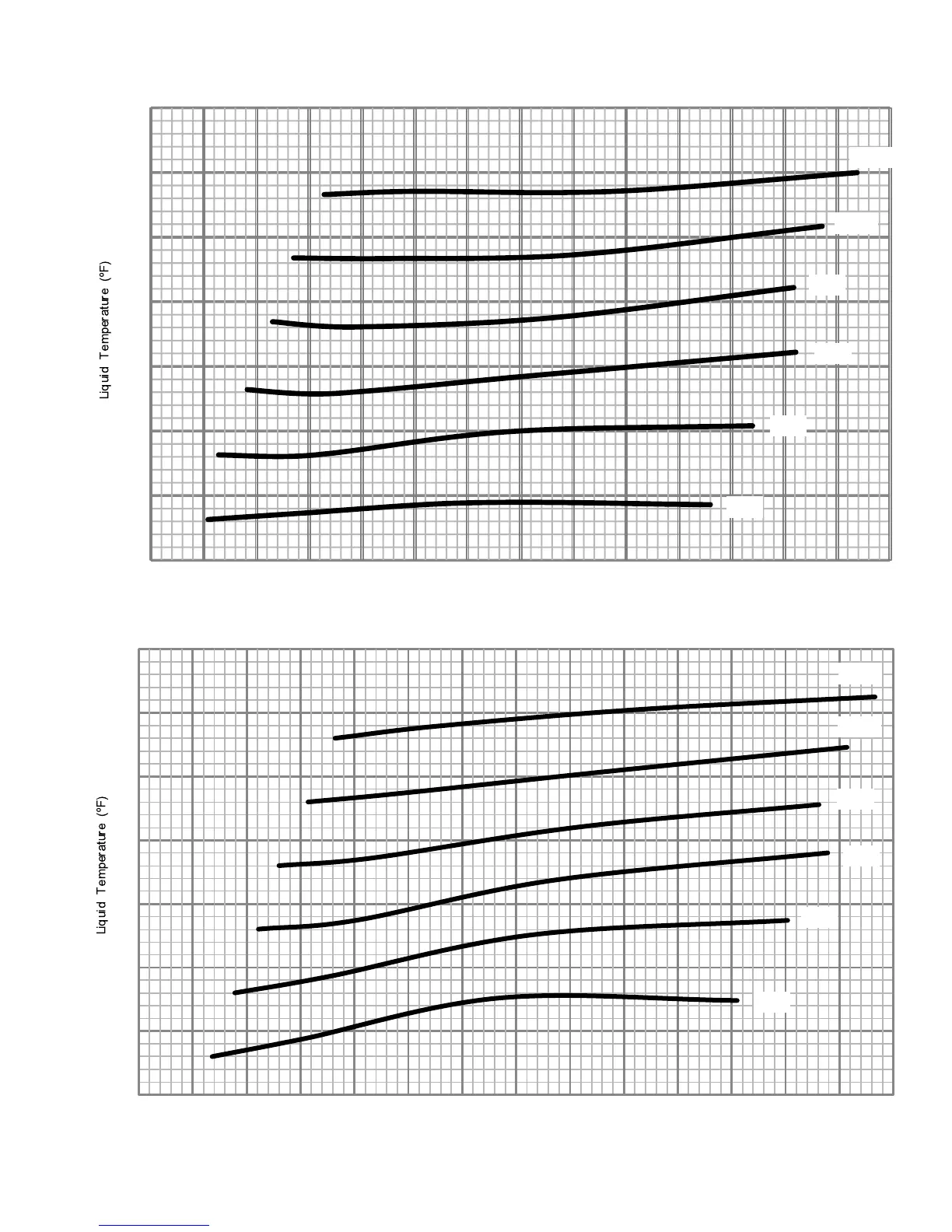

LGH/LCH240 CHARGING CURVE CIRCUIT 1
100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Suction Pressure (psig)
60
70
80
90
100
110
120
130
115°
105°
95°
85°
75°
65°
Outdoor Temperature (°F)
LGH/LCH240 CHARGING CURVE CIRCUIT 2
100 105 110 115 120 125 130 135 140 145 150 155 160 165 170
Suction Pressure (psig)
115°
105°
95°
85°
75°
65°
Outdoor Temperature (°F)
60
70
80
90
100
110
120
130
