Lennox LCH180H

Page 5
507124-04 3/2016

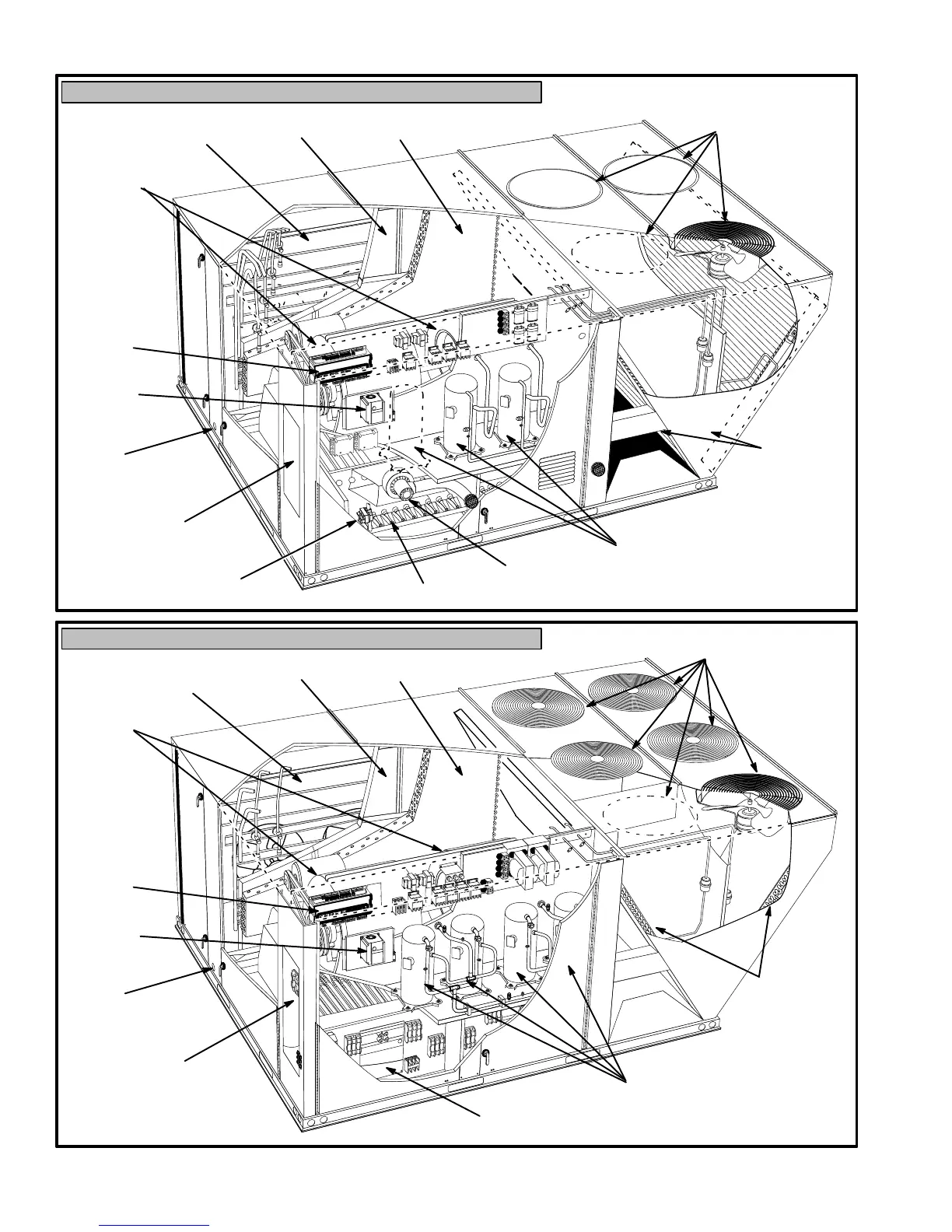

LGH156, 180H/U, 210, 240H/U, 300S PARTS ARRANGEMENT
EVAPORATOR
COIL
COMBUSTION
AIR INDUCER
CONDENSER FANS
(3 FANS ON 156 UNITS; 6
FANS ON 180U, 210, 240H/U,
& 300S UNITS
CONDENSER
COILS
COMPRESSORS
(4 ON 180U, 240H/U &
300S UNITS)
GAS VALVE
BURNERS
BLOWERS
CONDENSATE
DRAIN
FILTERS
(SIX - 24 X 24 X 2”)
ECONOMIZER
DAMPERS (OPTIONAL)
UNIT
CONTROLLER
DISCONNECT
(Factory-installed option)
INVERTER
(OPTIONAL)
180H Shown
LCH156, 180H/U, 210, 240H/U, 300S PARTS ARRANGEMENT
CONDENSER
COILS
ELECTRIC
HEAT
EVAPORATOR
COIL
BLOWERS
FILTERS
(SIX - 24 X 24 X 2”)
ECONOMIZER
DAMPERS (OPTIONAL)
CONDENSATE
DRAIN
UNIT
CONTROLLER
DISCONNECT
(Factory-installed option)
COMPRESSORS
(3 ON 156, 180H & 210 UNITS)
CONDENSER FANS
(3 FANS ON 156 UNITS;
4 FANS ON 180H UNITS
INVERTER
(OPTIONAL)
180U Shown
