Lennox LGA Series User Manual

Page 37

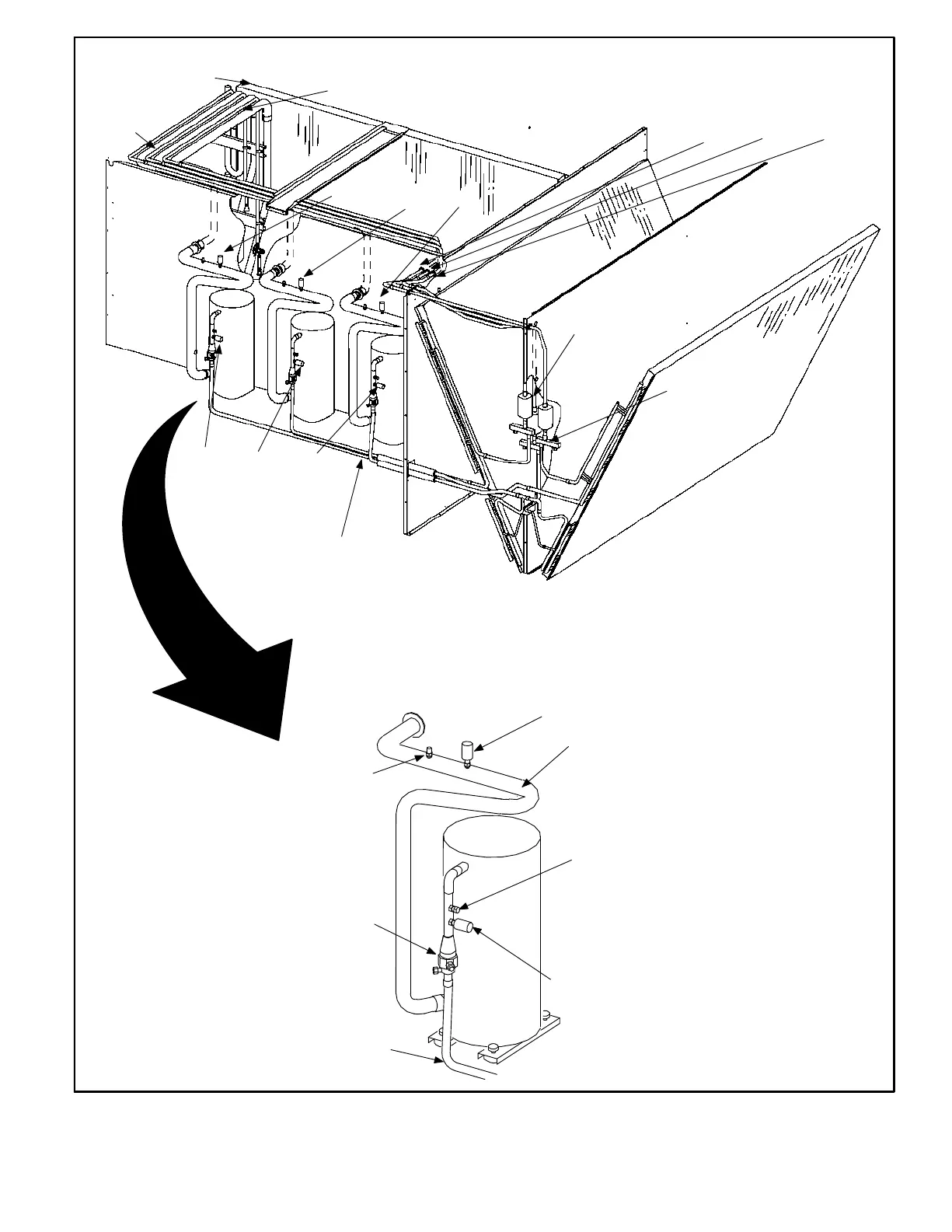

360H PLUMBING COMPONENTS
3 compressors
FIGURE 10
COMPRESSOR DETAIL
FREEZESTATS (3) ONE
FOR EACH STAGE OF
COIL (LOCATED ON
RETURN BENDS)
SUCTION
LINE (3)
LIQUID LINE
(3)
LOW AMBIENT SWITCHES
(S11) (S84) (S85)
HIGH PRESSURE SWITCHES
(S4) (S7) (S28)
LOW PRESSURE SWITCHES
(S87) (S88) (S98)
DRIERS
SERVICE
VALVES
(OPTIONAL)
DISCHARGE LINE (3)
SUCTION
LINE
SUCTION
PRESSURE
TAP
LOW PRESSURE
SWITCH (S87)
DISCHARGE
LINE
HIGH PRESSURE
SWITCH (S4)
DISCHARGE
PRESSURE
TAP
OPTIONAL
SERVICE
VALVE
CIRCUIT 1
(STG 1)
(B1)
STG. 1
(B2)
STG. 1
(B13)
STG. 2
