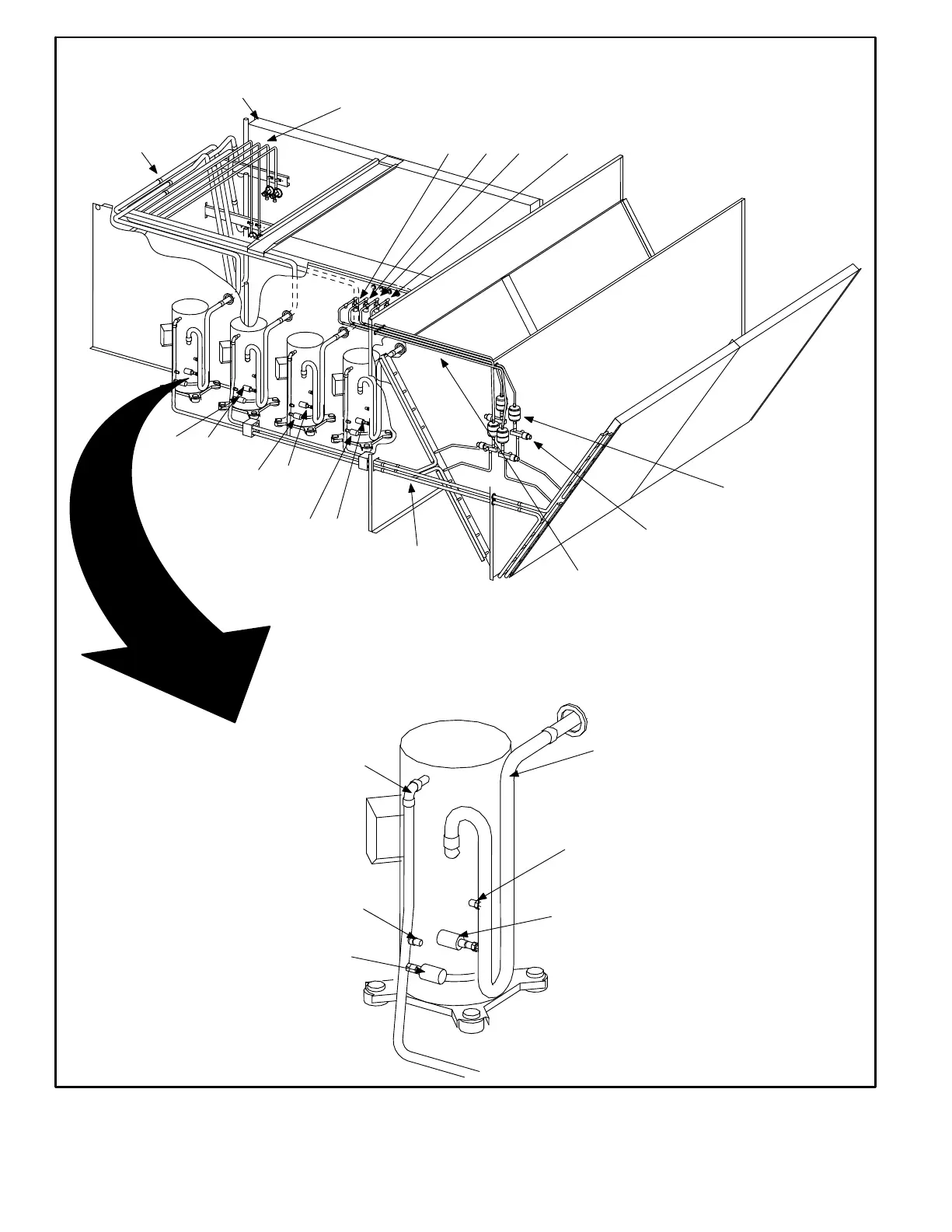

248H, 300H, 360H PLUMBING COMPONENTS
FIGURE 11
SUCTION
LINE
DISCHARGE
LINE
DISCHARGE
PRESSURE
TAP
LOW PRESSURE
SWITCH (S87)
HIGH PRESSURE
SWITCH (S4)
SUCTION
PRESSURE TAP
COMPRESSOR DETAIL
CIRCUIT 1
(STG 1)
(S11) (S84) (S85) (S94)
LIQUID LINE (4)
OPTIONAL
SERVICE
VALVE (4)
DRIER (4)
LIQUID LINE (4)
DISCHARGE
LINE (4)
SUCTION
LINE (4)
(S28)
(S98)
(S96) (S97)
(S88)
(S7)
LOW AMBIENT SWITCHES
CIRCUIT 2
(STG 1)
CIRCUIT 3
(STG 2)
CIRCUIT 4
(STG 2)
FREEZESTATS (4)
ONE FOR EACH STAGE
OF COIL (LOCATED ON
THE RETURN BEND)
