FIGURE 29

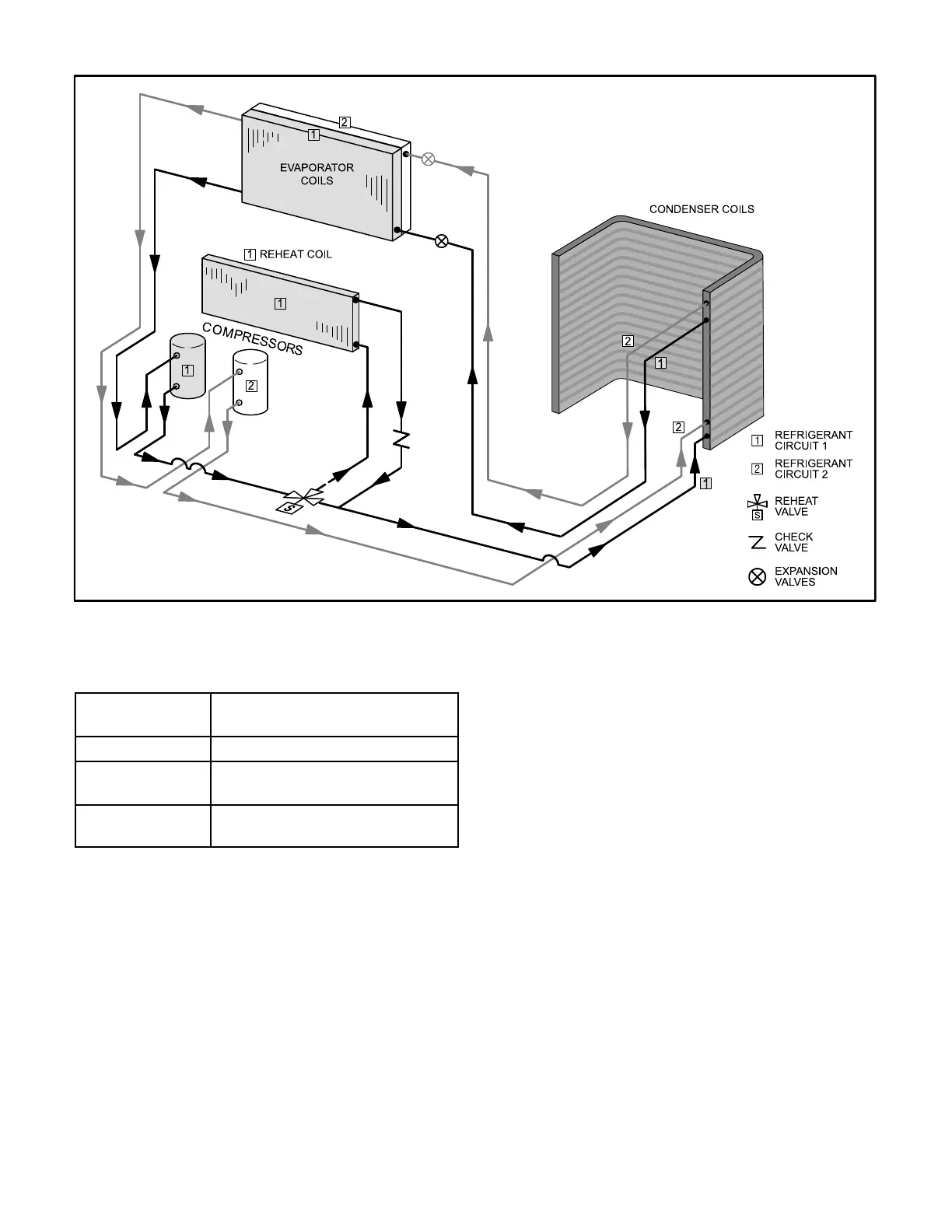

COOLING MODE REFRIGERANT ROUTING
Default Reheat Operation
TABLE 14
Reheat Operation - Two Cooling Stages - Default
T'stat and Humid
ity Demands
Operation
Reheat Only Compressor 1 Reheat
Reheat & Y1
Compressor 1 & 2 Enhanced De
humidification at Low CFM
Reheat & Y1 & Y2
Compressor 1 & 2 Enhanced De
humidification at High CFM
*If there is no reheat demand and outdoor air is
suitable, free cooling will operate.
**If there is no reheat demand and outdoor air is suitable,
free cooling and compressor 1 will operate.
