Page 53
508288-01 9/2022

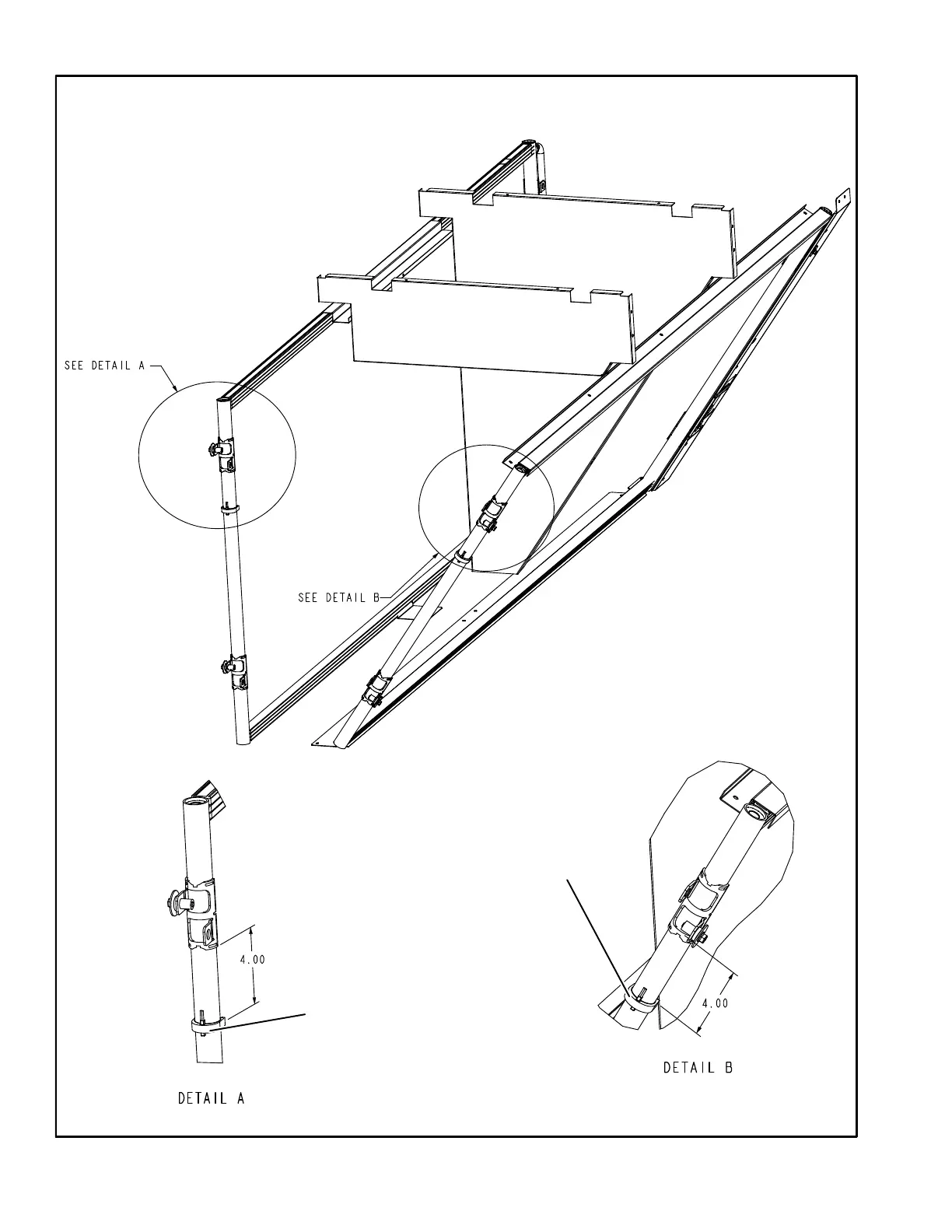

FIGURE 26
DETAILS NOT TO SCALE
LGT/LCT156
CONDENSER / OUTDOOR COIL
(RT48, 49)
YELLOW
RT48
BLUE
RT49
23V50
23V50
CLAMP THERMISTOR
TO BARE COPPER.
