47
Installation and Maintenance
Service Manual

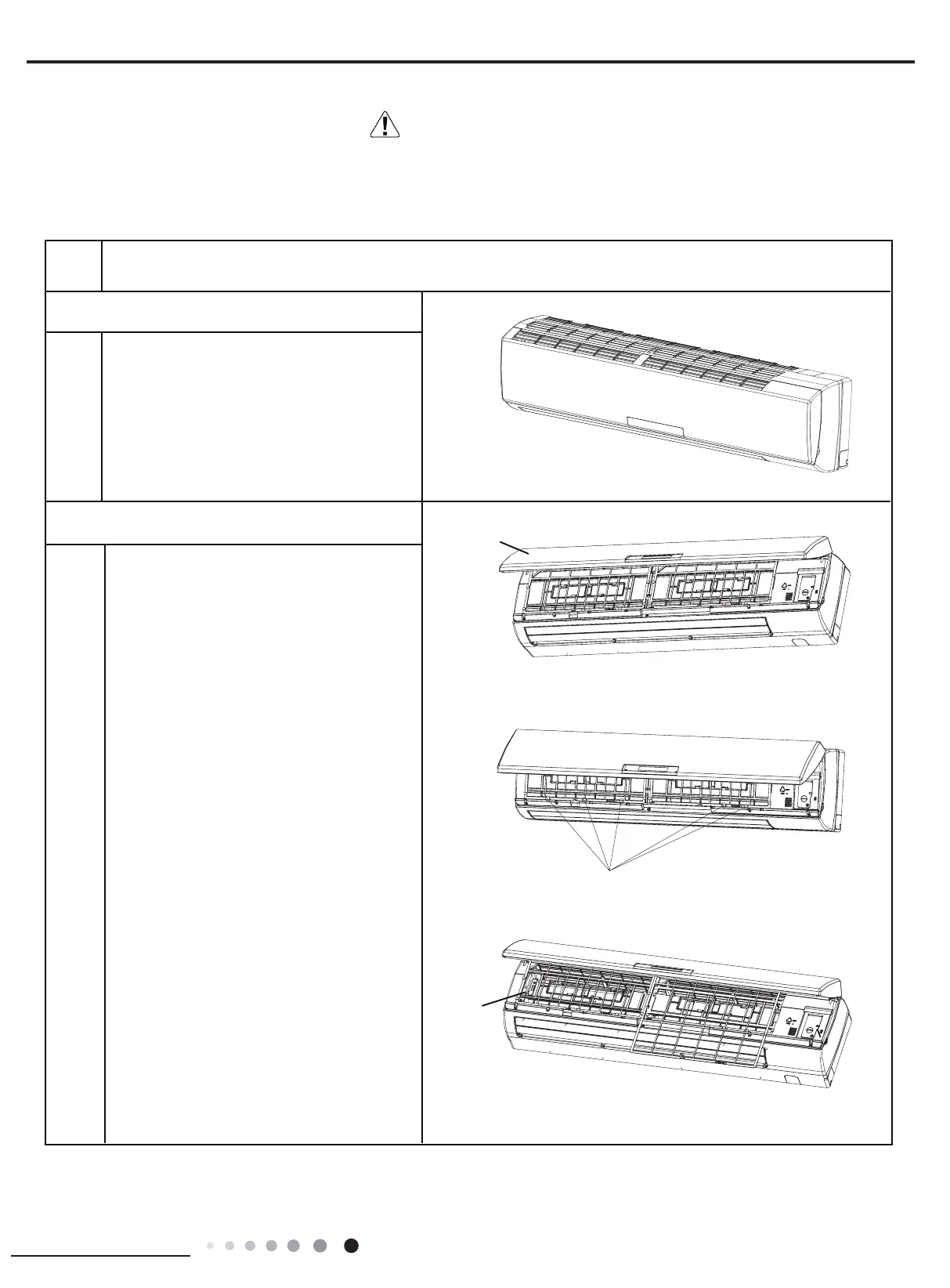

11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Warning: Be sure to discharge the refrigerant completely
before removal.
Steps
Procedure
1.Before disassembly of the unit
2.Remove filter
panel
clasps
filter
Axonometric drawing for the complete
unit.
Open the panel.
Loosen the clasps on the filter.
Draw out two pieces of filter.
a
b
c
