Lennox LM036CO-100P232-1X Service Manual

53
Installation and Maintenance
Service Manual
a
b
c
Steps
Procedure

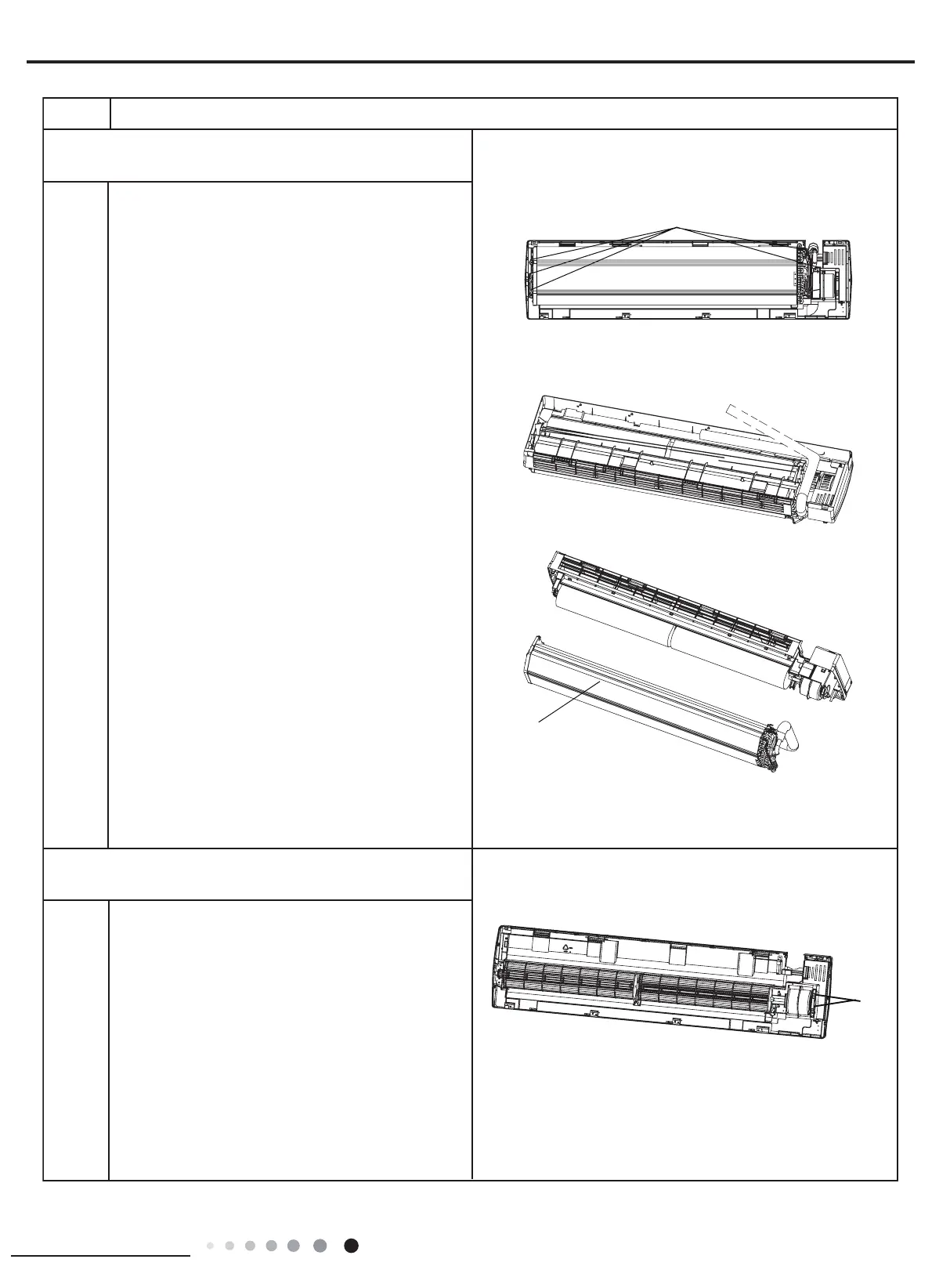

16.Remove evaporator
17.Remove the fixing plate of motor
screw
evaporator
screw
Remove screws between evaporator and bottom
case.
Turn over the indoor unit and adjust the pipe line to
the position as shown by the broken line.
Lift up the evaporator, and then remove the
evaporator.
Remove 2 screws on fixing plate of motor, and then
remove the fixing pate of motor.
