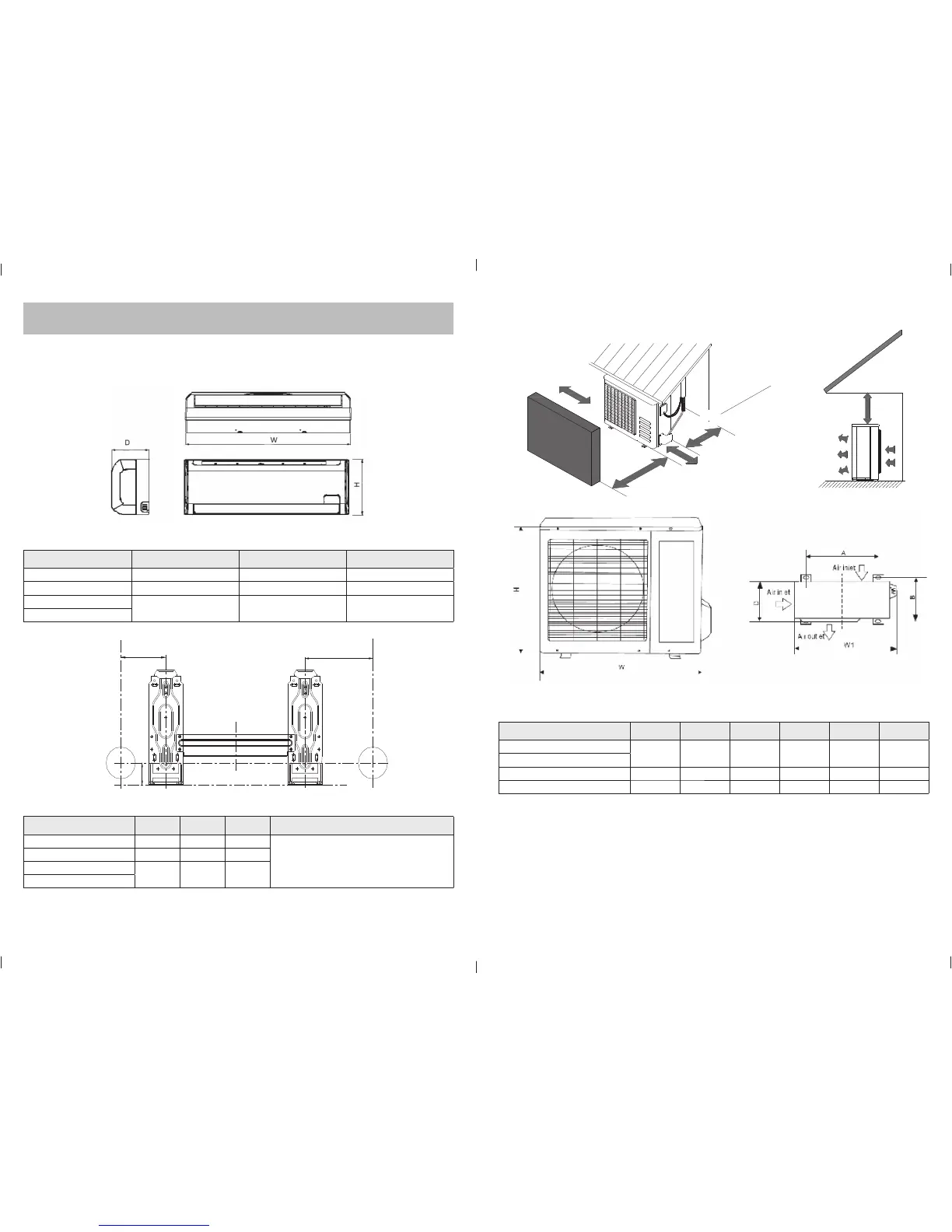

3.1 Indoor Unit
Model W D H
LNEO26V 790 198 265
LNEO35V 920 223 292
LNEO50V
998 240 322
LNEO65V
Model R(mm) L(mm) H(mm) Dimension of Installation Hole (mm)
LNEO26V 151 100 45
∅65
LNEO35V 185 150 45
LNEO50V
118.5 100 45
LNEO65V
3.2 Outdoor Unit
Model W D H W1 A B
LNCO26V
760 285 590 823 530 290
LNCO35V
LNCO50V 845 320 700 908 560 335
LNCO65V 900 315 860 980 590 333
3. DIMENSIONS
L
R
H
More than 30cm
More than 60cm
More than 70cm
More than 30cm
More than 60cm
(Service space
Fence or
obstacles
