Lennox MERIT ML14XC1 User Manual

ML14XC1 - 1.5 to 5 Ton Air Conditioner / Page 8
SUCTION AND
C
SIDE VIEW
DISCHARGE AIR
SIDE VIEW
A
B
A
LIQUID LINE
CONNECTION
OUTDOOR
COIL FAN
COMPRESSOR
OPTIONAL UNIT
STANDOFF KIT (4)
(FIELD INSTALLED)
4-3/
8
INLET
AIR
INLET
AIR
TOP VIEW
INLET AIR
INLET AIR
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
6-3/8
(162)
TOP VIEW BASE SECTION
COMPRESSOR
COIL DRAIN OUTLETS
(Around perimeter of base)
OPTIONAL UNIT
STAND-OFF KIT (4)
(Field Installed)
(111
)
4-3/8
4-3/8
4-3/8
4-3/8
6-3/8
(162)
(111)
(111 )
(111
)(
111)
4-3/8
(111)
2 (51)
3/4 (19)
2-3/4 (70)
ELECTRICAL
INLETS
Model
A B C
inches mm inches mm inches mm
018 24-1/4 616 29-1/4 743 28-1/2 724
024 28-1/4 718 29-1/4 743 28-1/2 724
030 28-1/4 718 37-1/4 946 36-1/2 927
036 28-1/4 718 29-1/4 743 28-1/2 724
041 28-1/4 718 37-1/4 946 36-1/2 927
042 28-1/4 718 37-1/4 946 36-1/2 927
047 32-1/4 817 33-1/4 845 32-1/2 826
048 28-1/4 718 37-1/4 946 36-1/2 927
059 32-1/4 817 43-1/4 1099 42-1/2 1080
060 32-1/4 817 43-1/4 1099 42-1/2 1080

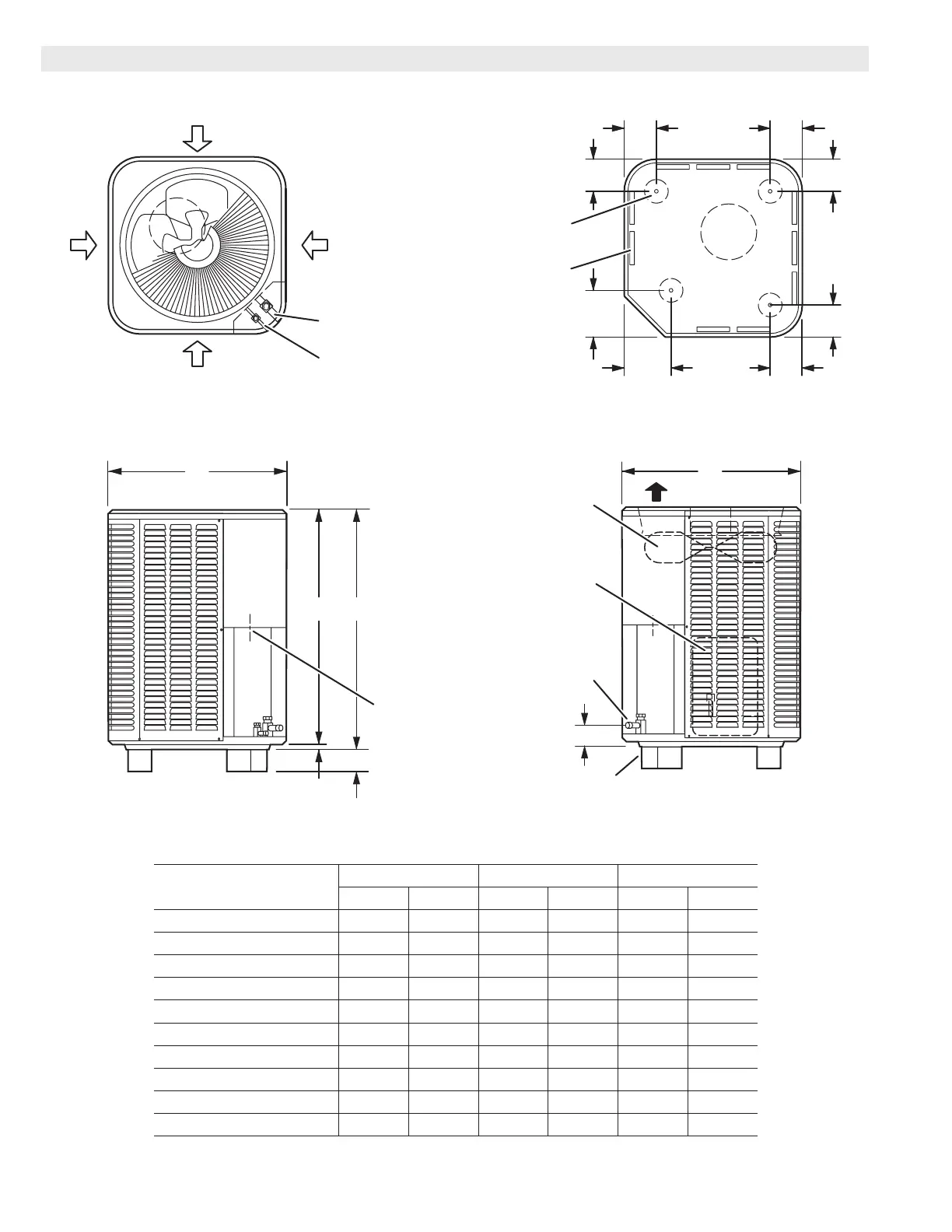

DIMENSIONS - UNIT - INCHES (MM)

Lennox MERIT ML14XC1 Specifications

General

Compressor Type	Single-stage
Refrigerant	R-410A
Energy Star Certified	No
Cooling Capacity (BTU/h)	18, 000 - 60, 000
Operating Voltage (VAC)	208/230
Unit Weight (lbs)	Varies by model
Dimensions (H x W x D, inches)	Varies by model
Cooling Capacity	1.5 to 5 tons
Warranty	5-Year Limited Warranty on covered components
