24

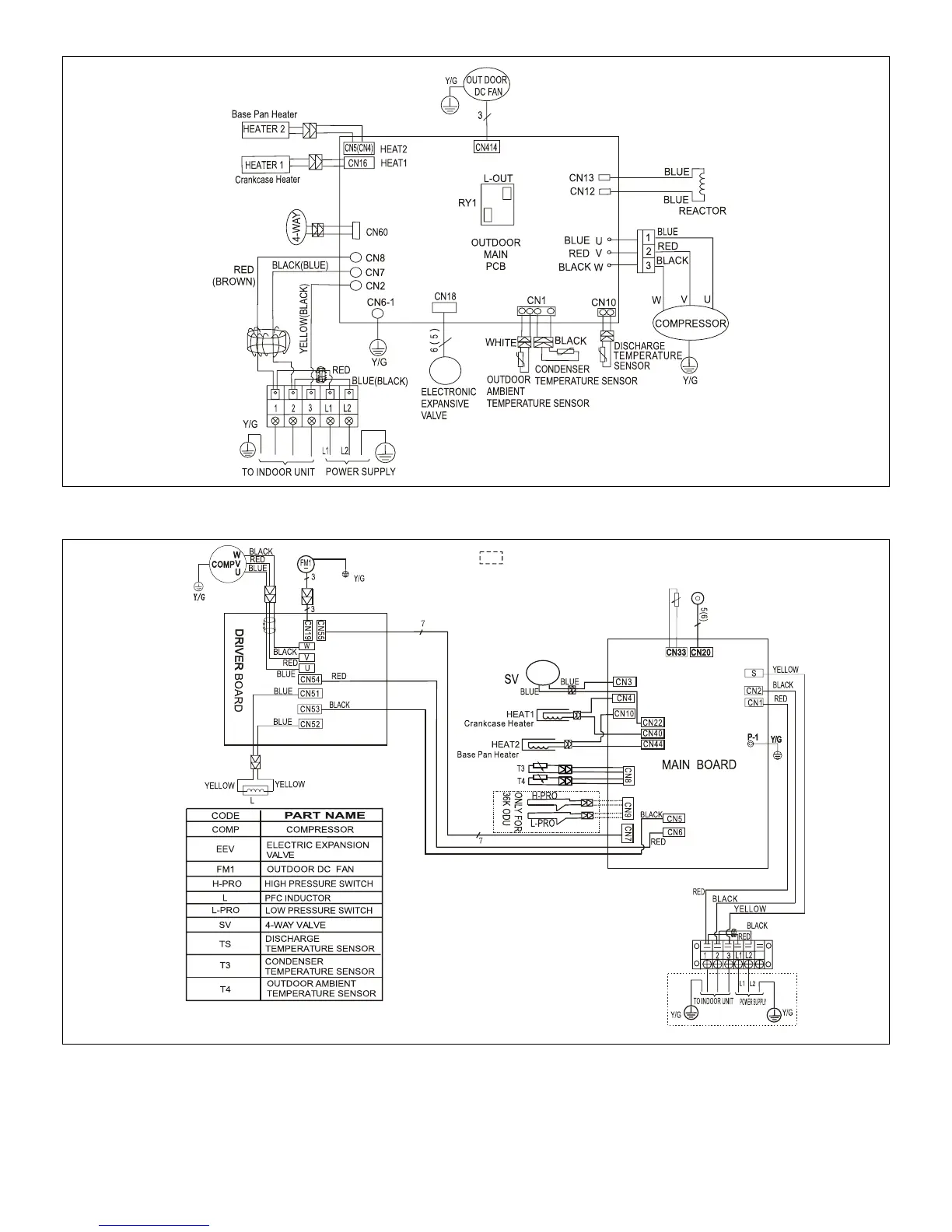

Figure 33. 208/230V MPB018S4S-*P and MPB024S4S-*P Outdoor Unit Wiring Diagram
EXV
4-WAY
VALVE
TS
•••••
COMPONENT IN DASH
LINE IS OPTIONAL
OR FIELD WIRING.
Figure 34. 208/230V MPB030S4S-*P, Outdoor Unit Wiring Diagram
