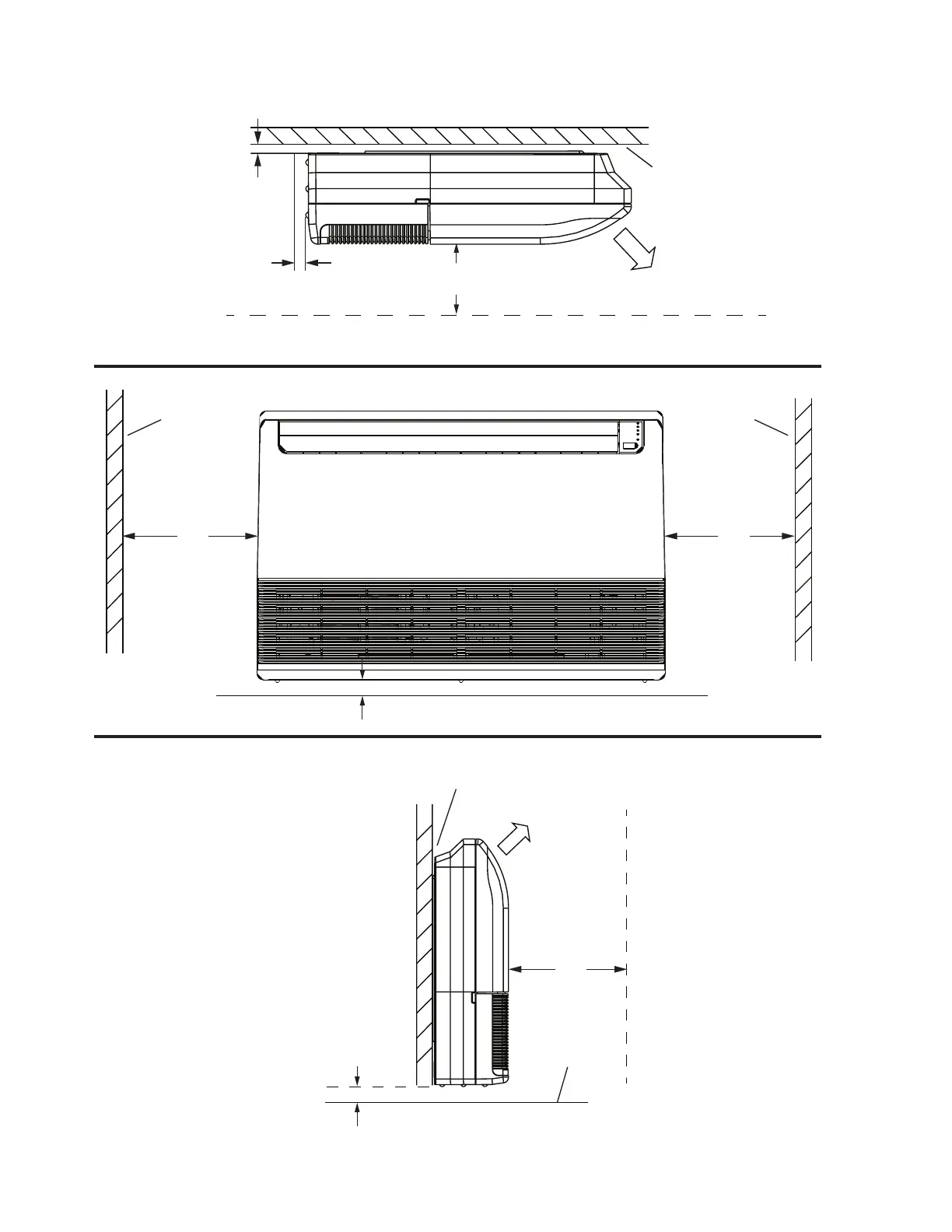

4.4. Indoor Unit Clearances
24
(610)
24
(610)
FRONT VIEW
SIDE VIEW
SIDE VIEW
SUPPLY
AIR
SUPPLY
AIR
59 (1499)
(Service Clearance
Front of Unit)
DROP CEILING
3/4
(19)
WALL WALL
CEILING APPLICATIONS
CEILING AND FLOOR APPLICATIONS
FLOOR APPLICATIONS
Unit Flush with Wall
59 (1499)
(Service Clearance
Floor
1 (25) Minimum
1 (25) Minimum
1 (25)
Minimum
