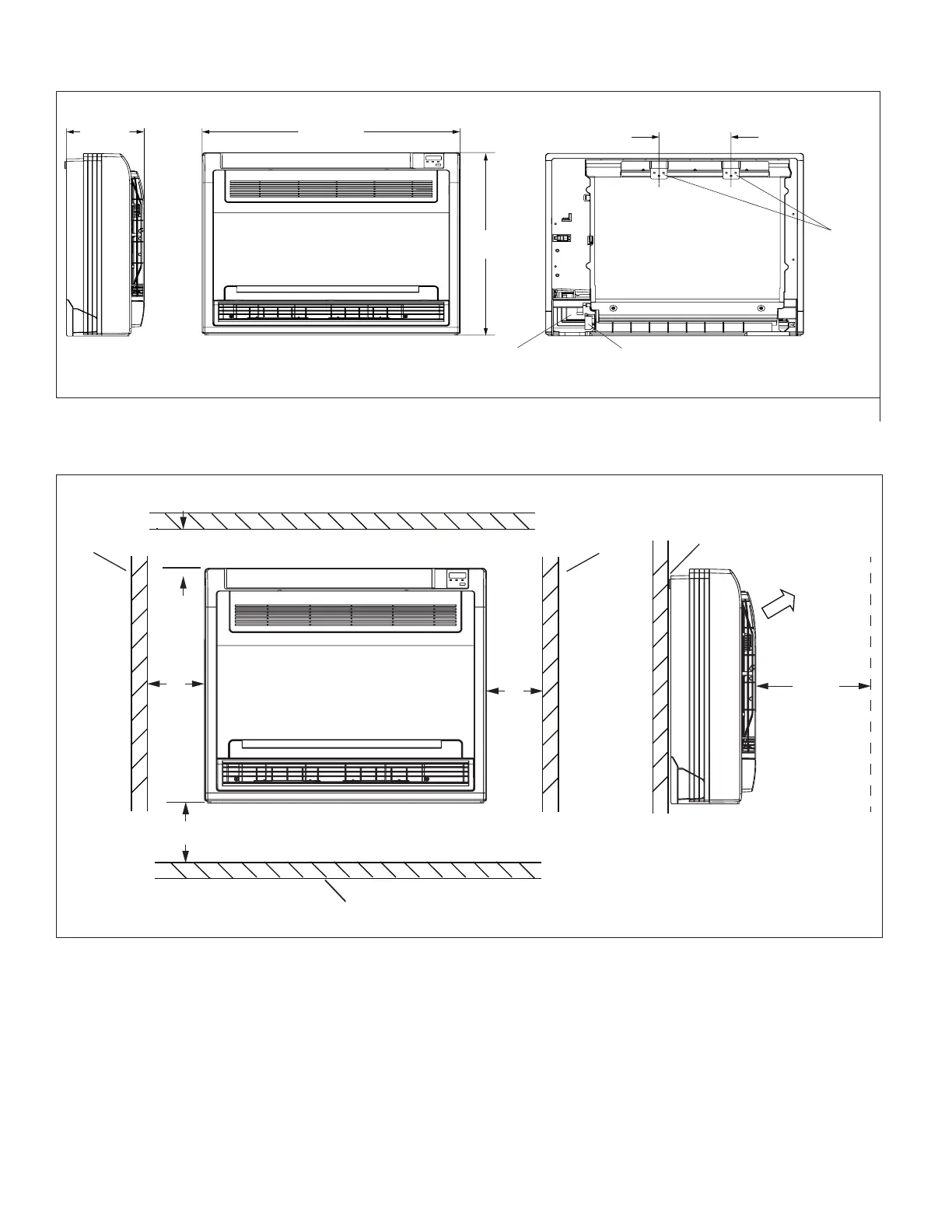

5.3. Indoor Unit Dimensions
Hanging
Brackets (2)
FRONT VIEW
SIDE VIEW
BACK VIEW
MFMA012S4
27-1/2 (699)8-1/4 (210)
23-5/8
(600)
7-11/16 (195)
Condensate Drain
Outlet
Refrigerant
Piping
Figure 15. MFMA Indoor Unit Dimensions - Inches (mm)
5.4. Indoor Unit Clearances
FRONT VIEW
SIDE VIEW
4
(102)
WALL
SUPPLY
AIR
40 (1016)
(Service
Clearance
Front of Unit)
Unit Flush with Wall
4
(102)
WALL
4
(102)
FLOOR
6
(152)
Figure 16. Indoor Unit Clearances - Inches (mm)
