NOTE — If opposite-side exit is preferred, see figure 18 to
switch condensate line and drain cap.
3. Use the wall mounting bracket as a template to
determine the exit point for the line set, condensate line
and indoor / outdoor cable (figure 11).
09 − 12 kBtu
21-5/16” (542)
10-7/8”
(275)
2” (50)
5” (124)
4”
(100)
2” (50)
2-3/16”
(55)
2-3/16”
(55)
18 kBtu
5/8” (16)
256
27-5/16”
(694)
7-3/4”
(197)
2-1/8”
(55)
33-1/4”
(945)
22-3/16”
(563)
5-5/16”
(136)
11-3/4”
(298)
5/8” (16)
6-1/4”
(160)
4-7/8”
(124)
3-1/4”
(82)
2-3/16”
(55)
2-3/16”
(55)
1-3/4” (45)

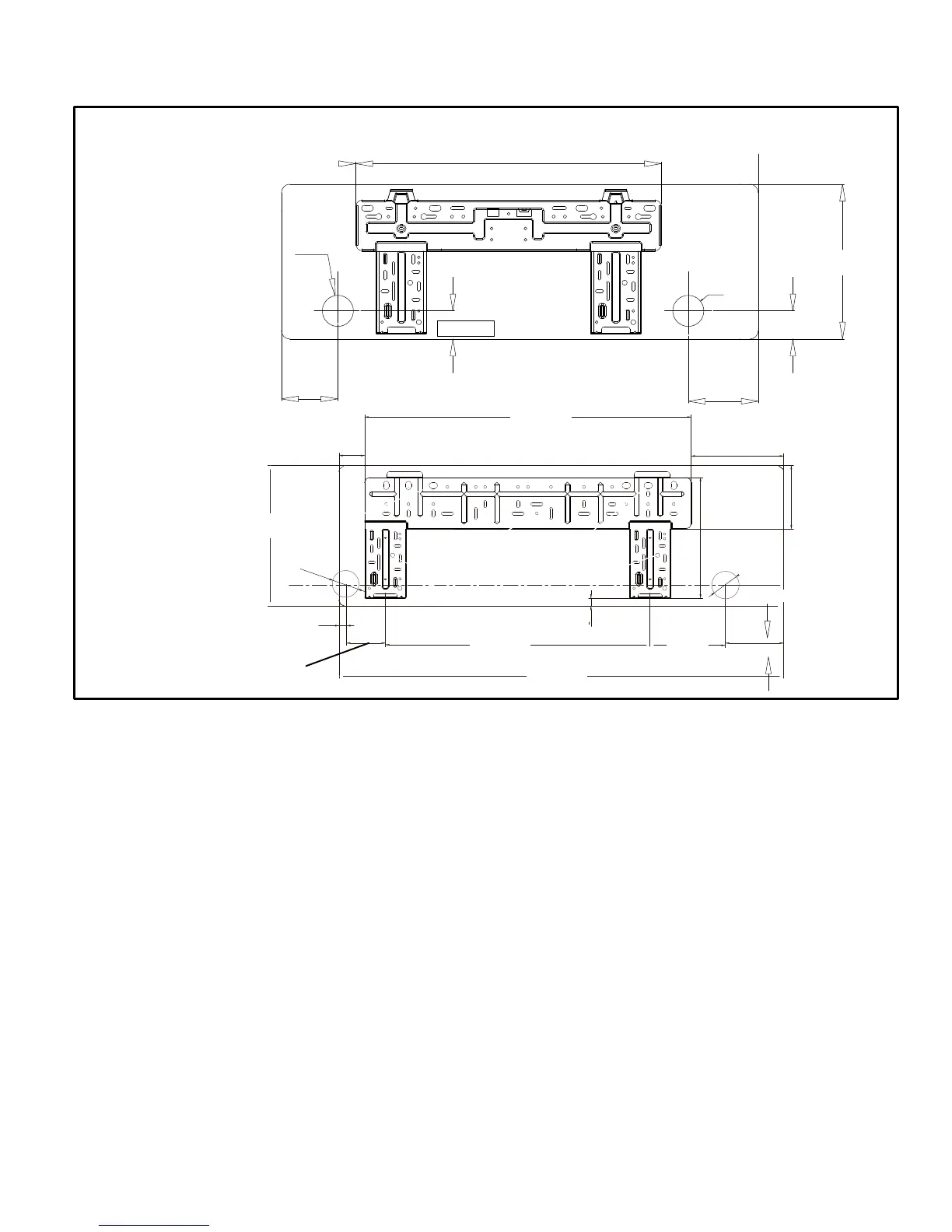

CONDENSATE / REFRIGERANT PIPING REAR EXIT LOCATIONS
FIGURE 11
