Lennox MS8 SERIES

Page 89
Corp. 1244-L9

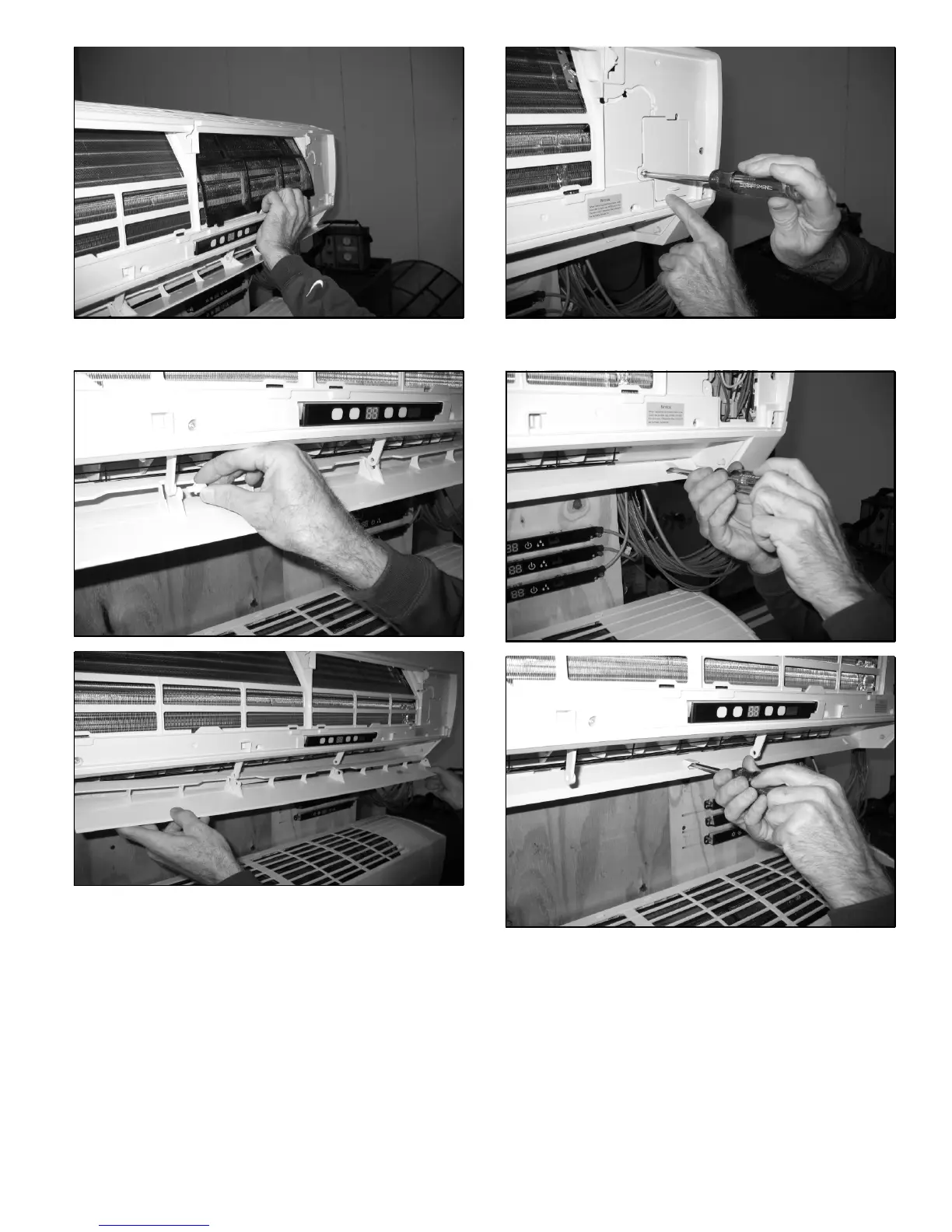

3. Loosen the clasps that secure the louvers to the case
cover. Bend the louver slightly to remove it.
4. Remove the screw(s) that secure the indoor terminal
strip access cover.
5. Lift the screw cover to access the screws that secure
the lower portion of the front cover to the unit.
