Page 91
Corp. 1244-L9

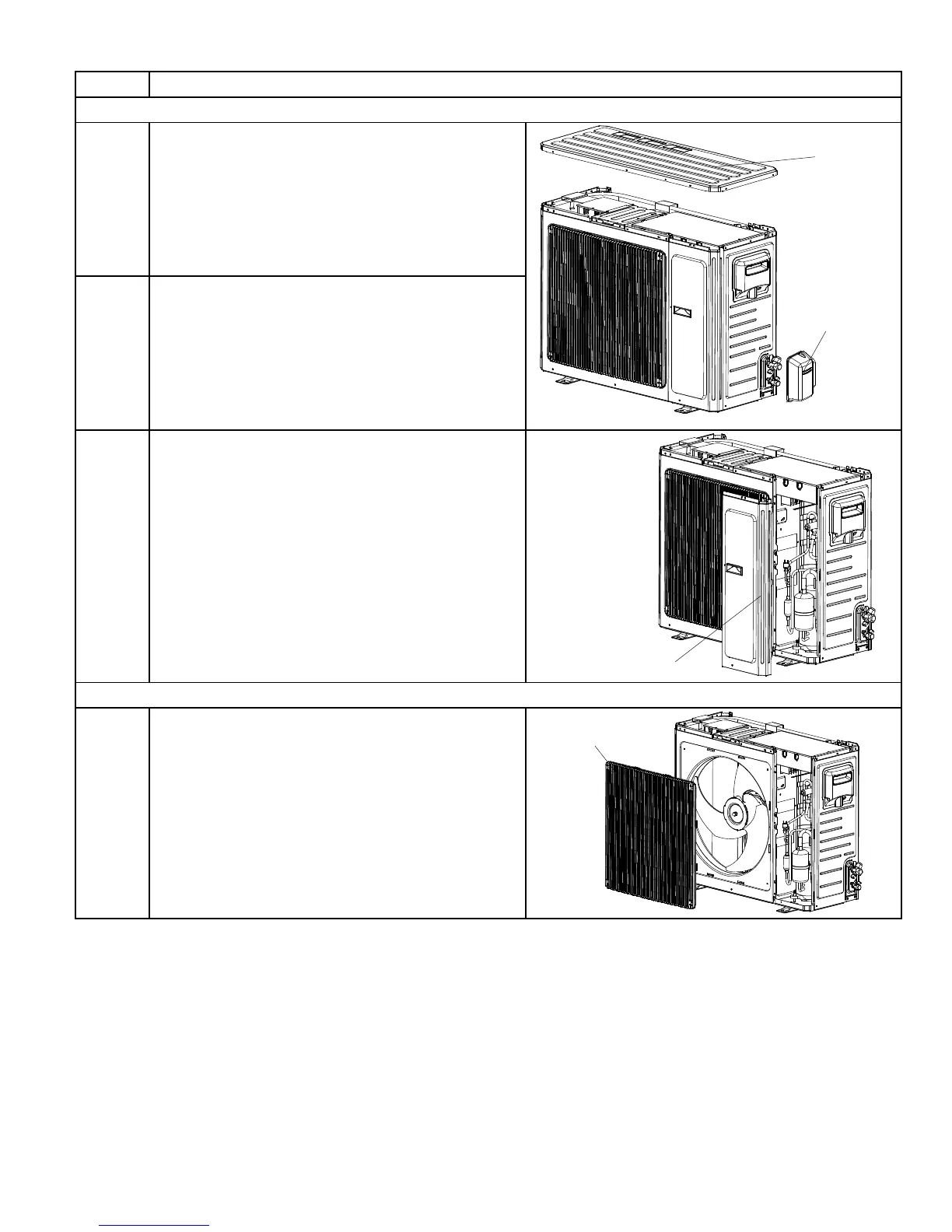

OUTDOOR UNIT DIS-ASSEMBLY
Step Outdoor Unit Procedure
1. Remove the top cover and front-side plates.
A * Remove the screws that secure the top panel to
unit.
* Remove top panel.
TOP PANEL
VALVE
COVER
B * Remove the screws that secure the valve cover to
the unit.
* Remove valve cover.
C * Remove the screws securing the front-side panel
to chassis.
* Remove the front-side panel.
FRONT-SIDE PLATE
2. Remove exhaust grille
* Removes screws securing the exhaust grille to the
unit.
* Remove grille.
EXHAUST GRILLE
To Next Page
