Lennox Prodigy User Manual

www.lennoxcommercial.com
10
2
1
=========================================================================================

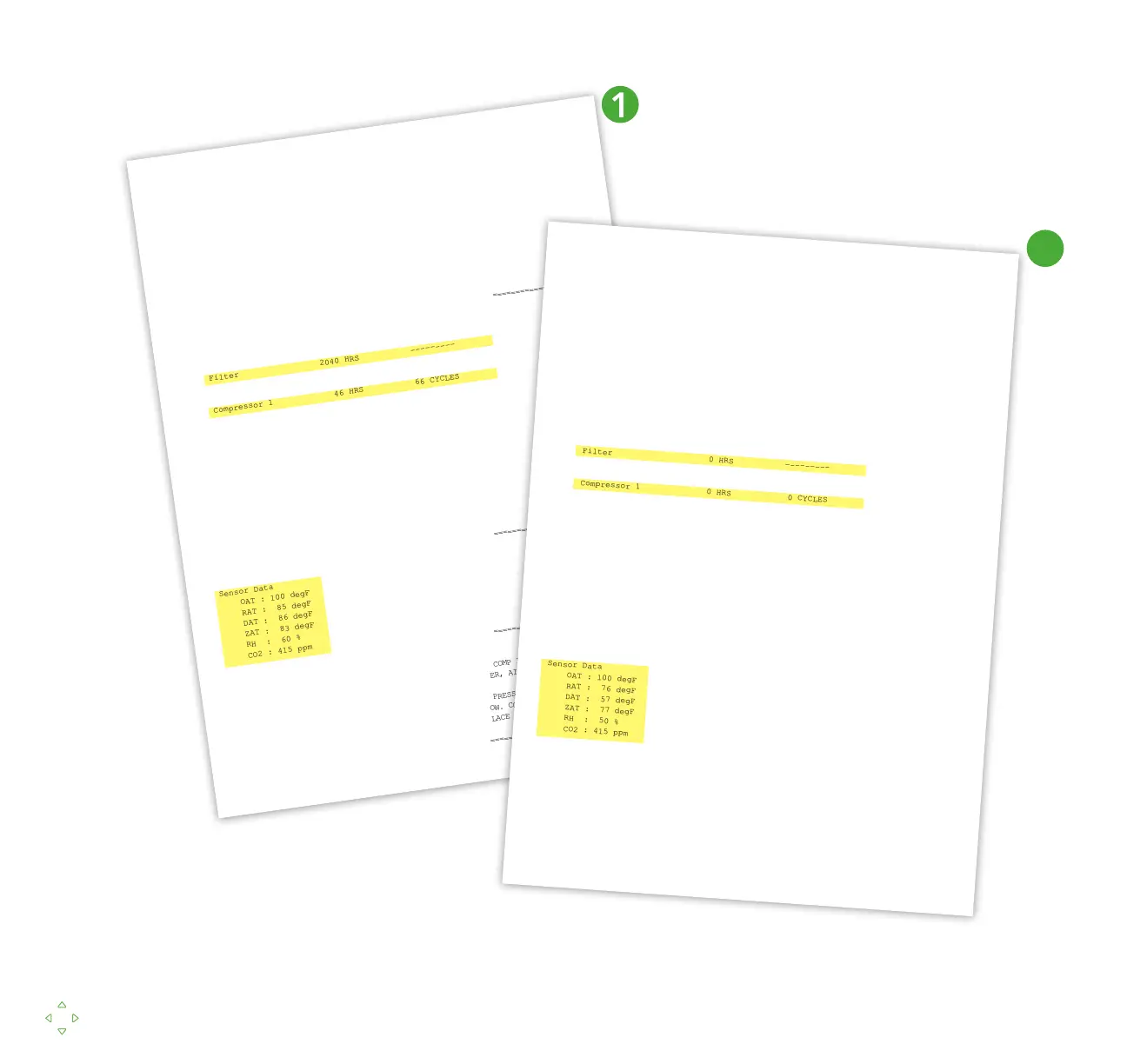

USB SERVICE REPORT
=========================================================================================
Service Date
7/4/2010
Service Time
3:15:00
Serial No. 5609K00002
M2 Version 7.06.00
DB1 Version
1.06.00
Unit No.
2
Sbus Address
2
BACnet Address
2
CAT No.
36L87
MODEL NO.
LGH036H4ES1Y
Status
COOLING
=========================================================================================
Runtime Data
Total Power On
1832 HRS
79 CYCLES
Before Install
286 HRS
---------
Filter
2040 HRS
---------
Belt
1063 HRS
---------
Blower
1162 HRS
131 CYCLES
Compressor 1
46 HRS
66 CYCLES
Compressor 2
0 HRS
---------
Compressor 3
0 HRS
0 CYCLES
Compressor 4
0 HRS
0 CYCLES
Outdoor Fan 1
14 HRS
32 CYCLES
Outdoor Fan 2
0 HRS
2 CYCLES
Outdoor Fan 3
0 HRS
0 CYCLES
Outdoor Fan 4
0 HRS
0 CYCLES
Outdoor Fan 5
0 HRS
0 CYCLES
Outdoor Fan 6
0 HRS
0 CYCLES
Heat Stage 1
5 HRS
17 CYCLES
Heat Stage 2
0 HRS
16 CYCLES
Reheat
2 HRS
13 CYCLES
Free Cooling
15 HRS
1608 CYCLES
UV Lamp
0 HRS
---------
=========================================================================================
Sensor Data
OAT : 100 degF
RAT : 85 degF
DAT : 86 degF
ZAT : 83 degF
RH : 60 %
CO2 : 415 ppm
=========================================================================================
Alarm/Status Log
23 ALARM(23) STRIKE 3 ON COMP 1 S87 COMP LOCKOUT.
CHECK CHECK CHARGE, FILTER, AIR FLOW, COIL, USE SERVICE
( 23) 7.04.2010 1:05:00
MENU TO CLEAR LOCKOUTS.
22 ALARM(22) COMP 1 LOW PRESS S87 COMP OFF. CHECK
( 22) 7.04.2010 1:00:00
CHARGE, FILTERS, AIR FLOW. COIL
ALARM(5) FILTER S27 REPLACE FILTER OR CHECK FILTER
( 5) 6.30.2010 21:05:00
SWITCH S27
=========================================================================================
END OF REPORT
=========================================================================================
USB SERVICE REPORT
=========================================================================================
Service Date
Service Time
4:23:00
Serial No.
5609K00002
M2 Version
DB1 Version
Unit No.
Sbus Address
BACnet Address
CAT No.
MODEL NO.
Status COOLING
=========================================================================================
Runtime Data
Total Power On 1832 HRS 80 CYCLES
Before Install 286 HRS ---------
Filter 0 HRS ---------
Belt 1063 HRS ---------
Blower 1162 HRS 131 CYCLES
Compressor 1
0 HRS 0 CYCLES
Compressor 2
0 HRS ---------
Compressor 3
0 HRS 0 CYCLES
Compressor 4
0 HRS 0 CYCLES
Outdoor Fan 1 14 HRS 32 CYCLES
Outdoor Fan 2 0 HRS 2 CYCLES
Outdoor Fan 3 0 HRS 0 CYCLES
Outdoor Fan 4 0 HRS 0 CYCLES
Outdoor Fan 5 0 HRS 0 CYCLES
Outdoor Fan 6 0 HRS 0 CYCLES
Heat Stage 1
5 HRS 17 CYCLES
Heat Stage 2
0 HRS 16 CYCLES
Reheat 2 HRS 13 CYCLES
Free Cooling
15 HRS 1608 CYCLES
UV Lamp
0 HRS ---------
=========================================================================================
Sensor Data
OAT : 100 degF
RAT : 76 degF
DAT : 57 degF
ZAT : 77 degF
RH : 50 %
CO2 : 415 ppm
=========================================================================================
Alarm/Status Log
23 ALARM(23) STRIKE 3 ON COMP 1 S87 COMP LOCKOUT.
CHECK CHECK CHARGE, FILTER, AIR FLOW, COIL, USE SERVICE
( 23) 7.04.2010 1:05:00
MENU TO CLEAR LOCKOUTS.
22 ALARM(22) COMP 1 LOW PRESS S87 COMP OFF. CHECK
( 22) 7.04.2010 1:00:00
CHARGE, FILTERS, AIR FLOW. COIL
ALARM(5) FILTER S27 REPLACE FILTER OR CHECK FILTER
( 5) 6.30.2010 21:05:00
SWITCH S27
=========================================================================================
END OF REPORT
