2 Product Introduction

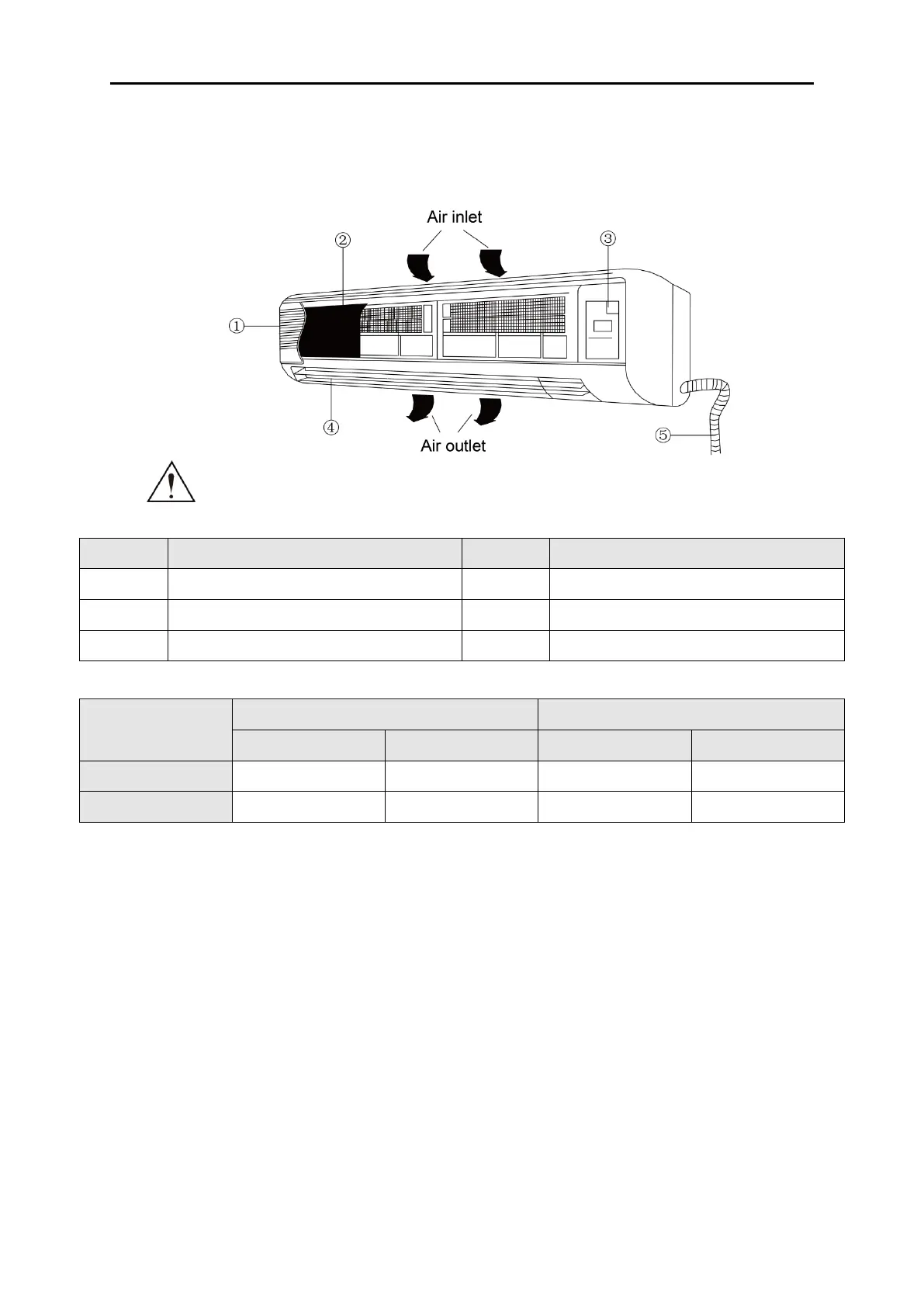

2.1 Outline of the Unit and Main Parts
Note：
The appearances will be different by the different models of air conditioners.
No. Part Name No. Part Name
① Surface panel ④ Guide louver
② Filter ⑤ Drain pipe
③ Wiring cover
2.2 Rated Operating Condition
Item
Indoor Condition Outdoor Condition
DBTemperature°C WBTemperature°C DBTemperature°C WBTemperature°C
Rated Cooling 27 19 35 24
Rated Heating 20 15 7 6
3 Preparations for Installation
3.1 Location for Installation
(1) The appliance shall not be installed in the laundry.
(2) The indoor unit should be installed at 2.3m or higher above the floor.
(3) The top holder must be strong enough to support unit’s weight.
(4) Drain pipe can drain water out easily.
(5) There is no obstacle at inlet or outlet. Please ensure good air circulation.
(6) Keep the unit away from heating source, inflammable gas or smoke.
High Wall Type Indoor Unit
