Lennox VPB192H4M

12

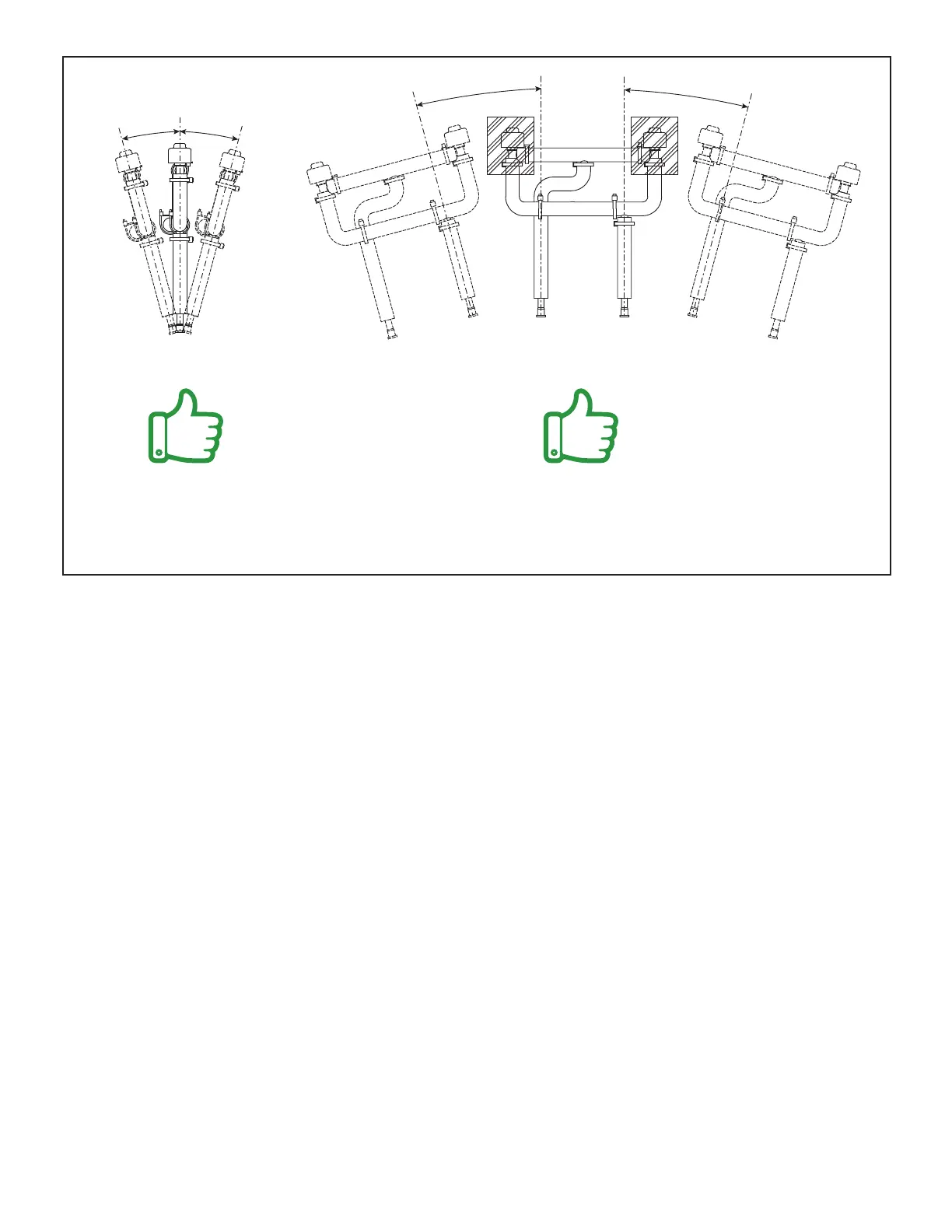

Figure 8. Position the EXV Vertically when the EXV is out of the Box
NOTE -
1. The EXV is position sensitive in or out side of the factory enclosure.
2. The EXV must be mounted in a vertical, upright orientation (+/- 15°) only.
3. Locate the EXV near the indoor unit coil so that connective piping does not exceed 16 ft. (5 m).
FRONT VIEW
15°
15°
15°
15°
FRONT VIEW
