Lennox VPB192H4M User Manual

28
Main AHU Control Kit Only
Indicates that the fan has three speeds:
Low, Medium, and High. (default)
Main AHU Control Kit Only
Indicates that the fan has two speeds: Low,
and High.
Main AHU Control Kit Only
Indicates that the fan has one speed: High.
Reserved.
Indicates that the dry contact “DEH”
CLOSED for dehumidication OFF, and
“DEH” OPENED for dehumidication ON.
(default)
Indicates that the dry contact “DEH”
CLOSED for dehumidication ON, and
“DEH” OPENED for dehumidication OFF.
(default)
Air Handling Unit Fan Speed Setting
Congure the number of fan speeds using SW5-1 and
SW5-2. Main kit only.
The fan control logic is shown in the Fan Control section.

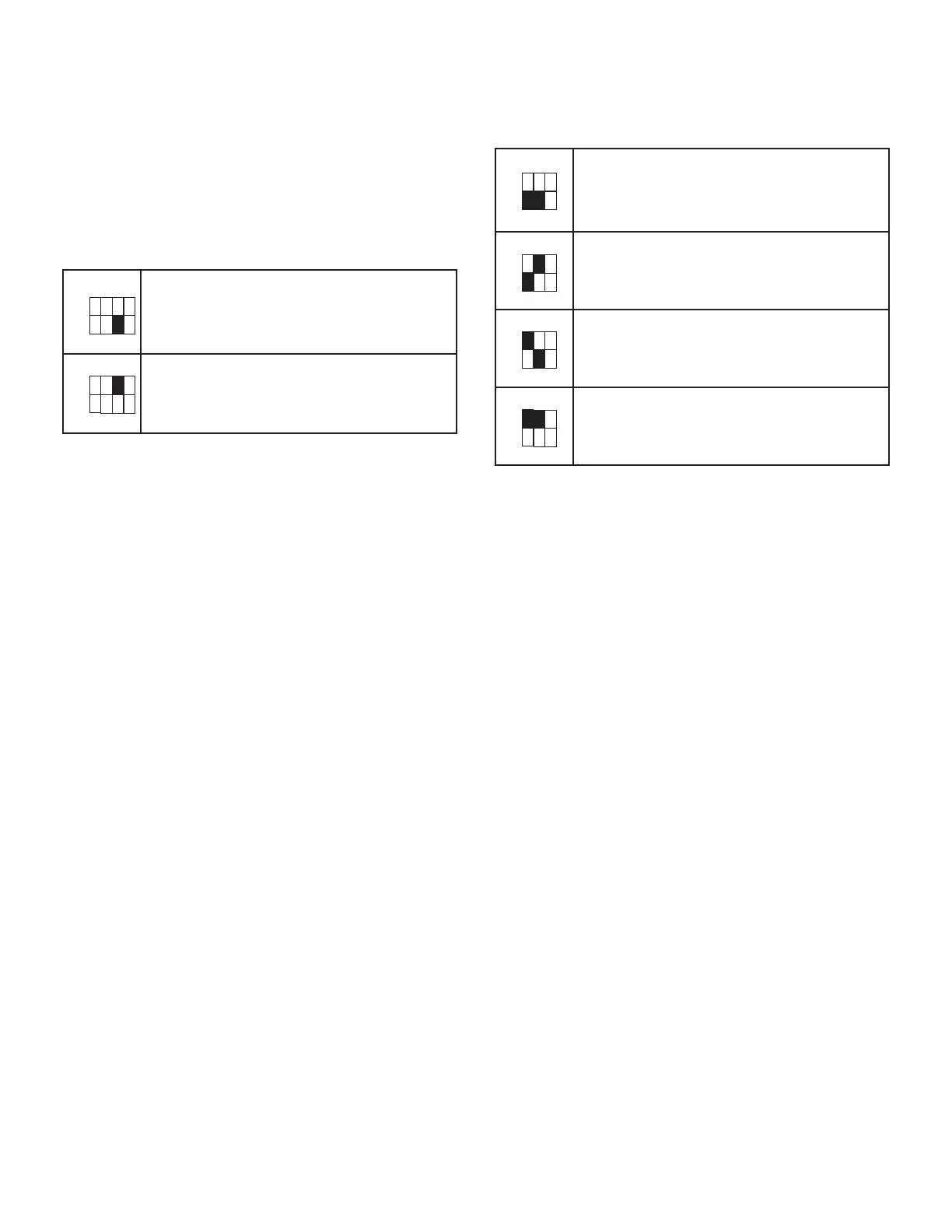

NOTE - Dip switch handle location is shown as a solid
black box in the tables.
0 = OFF (down)
1 = ON (up)
NOTE - Turn o power to the unit before setting the dial/
dip switch. The function will be available when the unit is
powered on again.
DEH (Dehumidication) Control Logic Setting
SW3-3 denes the normal open or normal closed status
of dehumidication relay output DEH (dry contact 24V 1A
max) at terminal CN51.
SW3-3 set at 0 (default) indicates the relay is CLOSED
when dehumidication demand is OFF. The relay is OPEN
when dehumidication demand is ON.
SW3-3 set at 1 indicates the relay is CLOSED when
dehumidication demand is ON. The relay is OPEN when
dehumidication demand is OFF.
ON
1
2 3
SW3
4
ON
1
2 3
SW3
4
SW3-4 is reserved. Do not adjust.
SW4 is reserved. Do not adjust.
ON
1
2 3
SW5
ON
1
2 3
SW5
ON
1
2 3
SW5
ON
1
2 3
SW5
