5

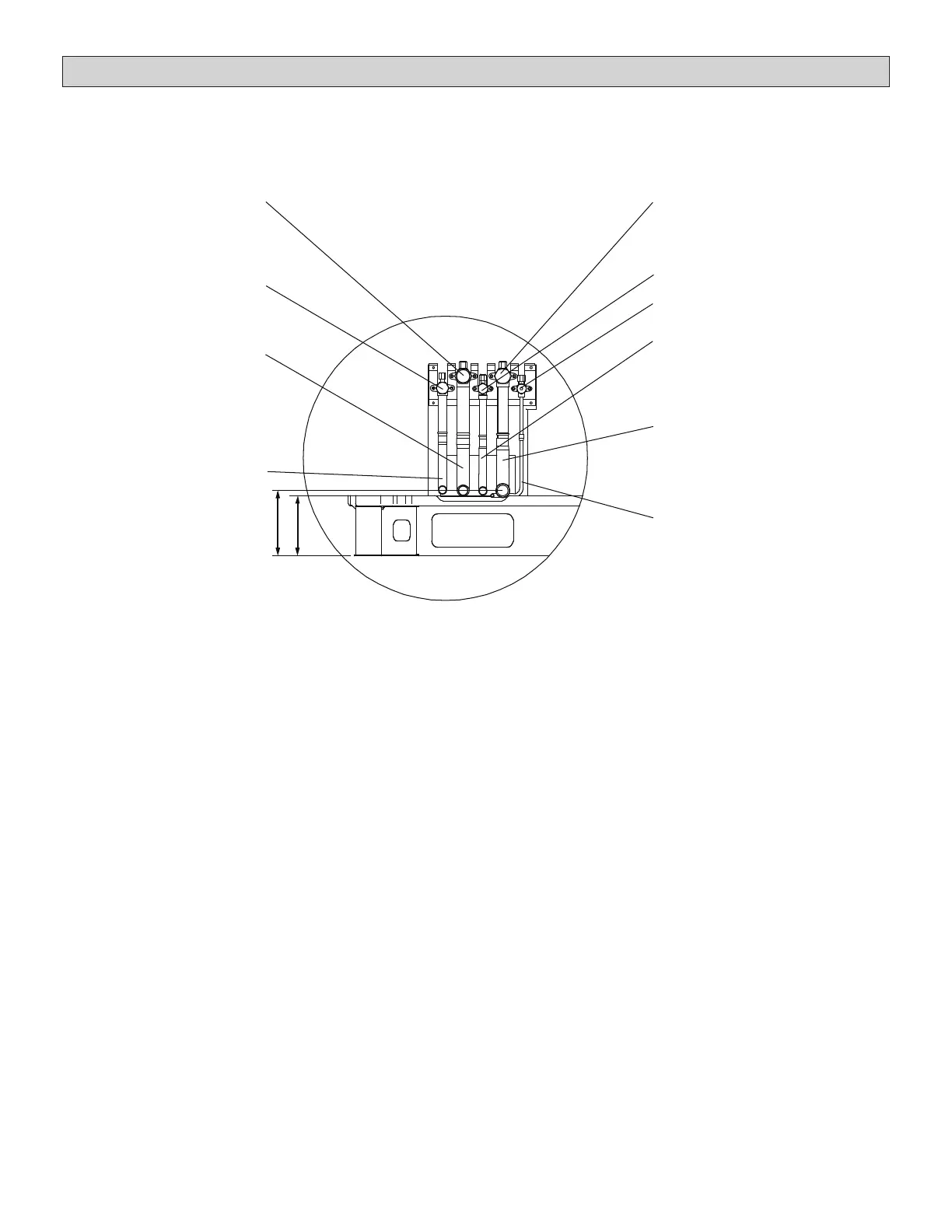

Dimensions - Piping Details - inches (mm)
6-1/4 (159)
5-5/8 (143)
Low pressure gas valve
High pressure
gas balance valve
Low pressure gas pipe
(1-1/8 in. diameter 072-120 sizes)
(3/4 in. diameter)
High pressure
gas balance pipe
High pressure gas valve
(1-3/8 in. diameter 144-192 sizes)
Liquid side valve
Oil balance valve
Liquid side valve
Liquid side pipe
(5/8 in. diameter 072-120 sizes)
(3/4 in. diameter 144-192 sizes)
High pressure gas pipe
(1-1/8 in. diameter 072-120 sizes)
(1-3/8 in. diameter 144-192 sizes)
Oil balance pipe
(1/4 in. diameter)
Internal valve layouts are the same in both heat
recovery and heat pump units, it is their function that
is di󰀨erent. Pay close attention when making nal
piping connections.
Heat Recovery internal valve layouts are described
below. See the Heat Pump installation manual for
heat pump internal valve information.
