DC Inverter Multi VRF System
20
Model Power supply
Circuit breaker
capacity
(A)
Number of ground wire
× Min sectional area
(mm
2
)
Number of power cord
× Min sectional area
(mm
2
)
VEC055N432U
220~240V 50Hz
208~230V 60Hz
40 1×6.0 2×6.0
VEC060N432U
220~240V 50Hz
208~230V 60Hz
40 1×6.0 2×6.0
NOTES!
①
Selection of circuit breaker and power cord in the above table is based upon unit’s maximum
power (maximum current).
②
Specification of power cord is based on the working condition where ambient temperature is
40°C and multi-core copper cable (working temperature is 90°C, e.g. power cable with YJV
cross-linked copper, insulated PE and PVC sheath) is lying on the surface of slot. If working
condition changes, please adjust the specification according to national standard.
③
Specification of circuit breaker is based on the working condition where ambient
temperature of circuit breaker is 40°C. If working condition changes, please adjust the
specification according to national standard.
4.6.3 Engineering Wiring of Power Supply and Communication Cable
(1) Please refer Fig 4.6.3.1 and 4.6.3.2 for engineering wiring. If there is the hole for cable tie in
wiring route, please fix the wire with cable tie. Connect the power cord and communication
cable to the corresponding terminal board and grounding screw according to the wiring
diagram.
(2) Please be noted that engineering wiring cannot touch the pipe and appliance.
(3) This figure is only applicable for engineering wiring reference of power supply and
communication cable. If there are differences between the figure structure and actual unit,
please refer to the actual unit.
(4) For engineering wiring, please refer to the wiring diagram provided with the unit.

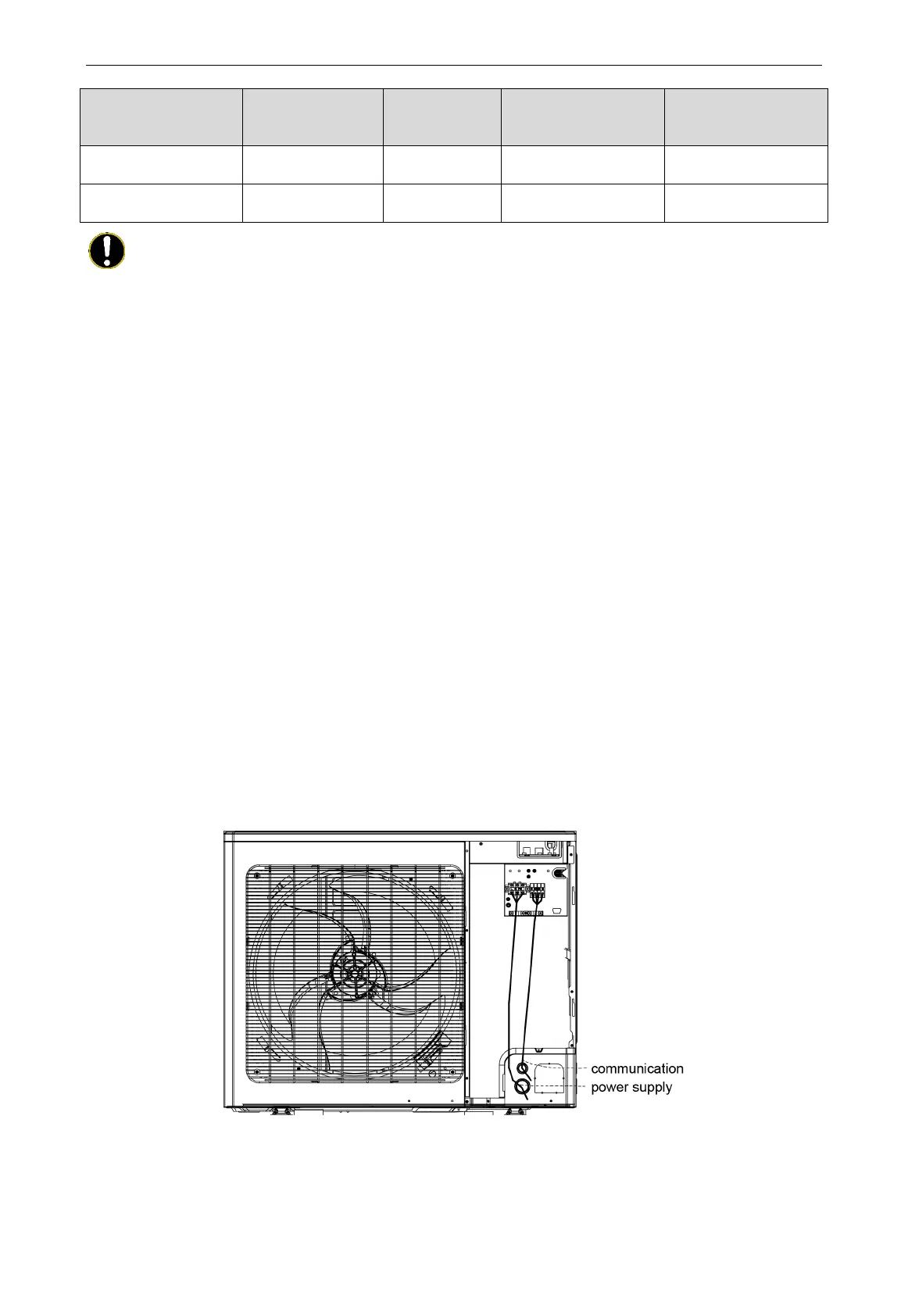

Fig 4.6.3.1 Engineering Wiring View of VEC027N432U, VEC034N432U,VEC042N432U
