4.1 Dimension of Outdoor Unit and Mounting Hole

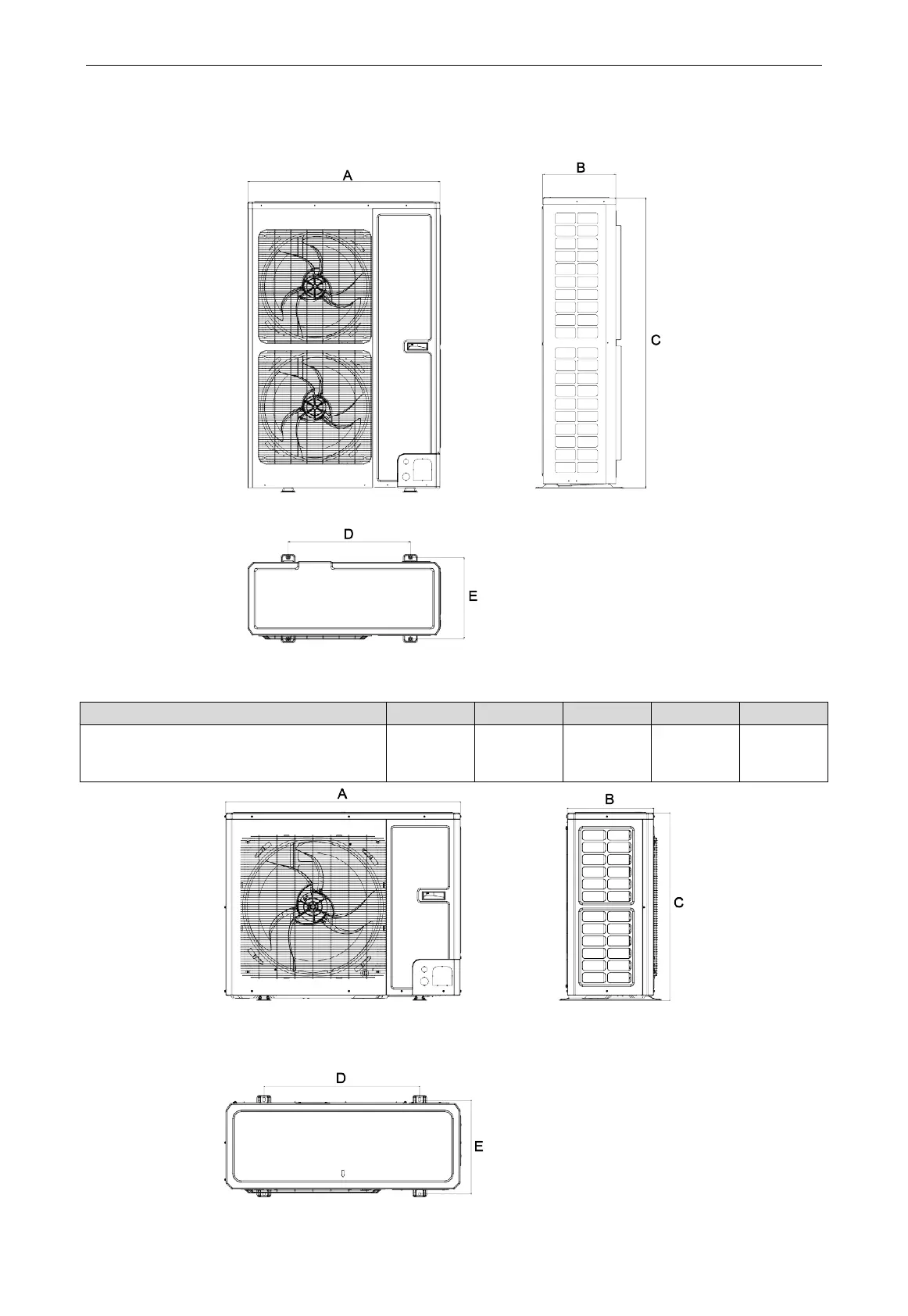

Unit Outline and Installation Dimension(mm).
Fig 4.1.1
Unit:mm
Model
A
B
C
D
E
VEC048N432U
VEC055N432U
VEC060N432U
900 340 1345 572 378
Fig 4.1.2
